Amada IS-200A - Major Components List; Schematic

IS-200A
9. Specifications
9-5

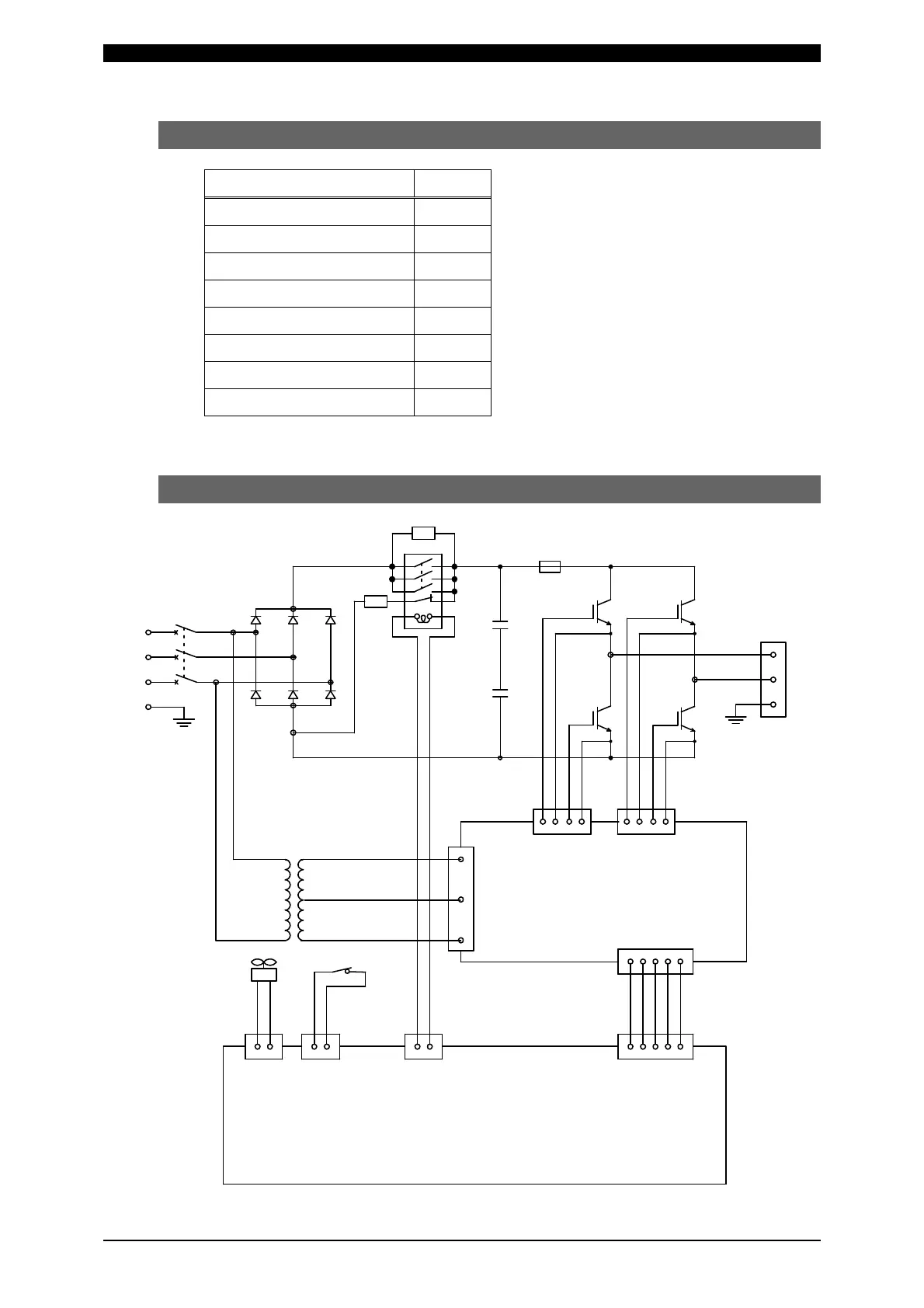

(5) Major Components List
Item Q’ty
Fan motor 1
Power transformer 1
Thermal protector 1
Diode module 1
IGBT module 2
Fast-blow fuse 1
Circuit breaker 1
Electromagnetic contactor 1
(6) Schematic
ＰＥ
Ｌ３
Ｌ２
Ｌ１
PE
V
U
+
+
MCCB
T
MC
DIODE
IGBT
FAN
F
POWER P.C.B.
CONTROL P.C.B.
IGBT
TH(IGBT)
