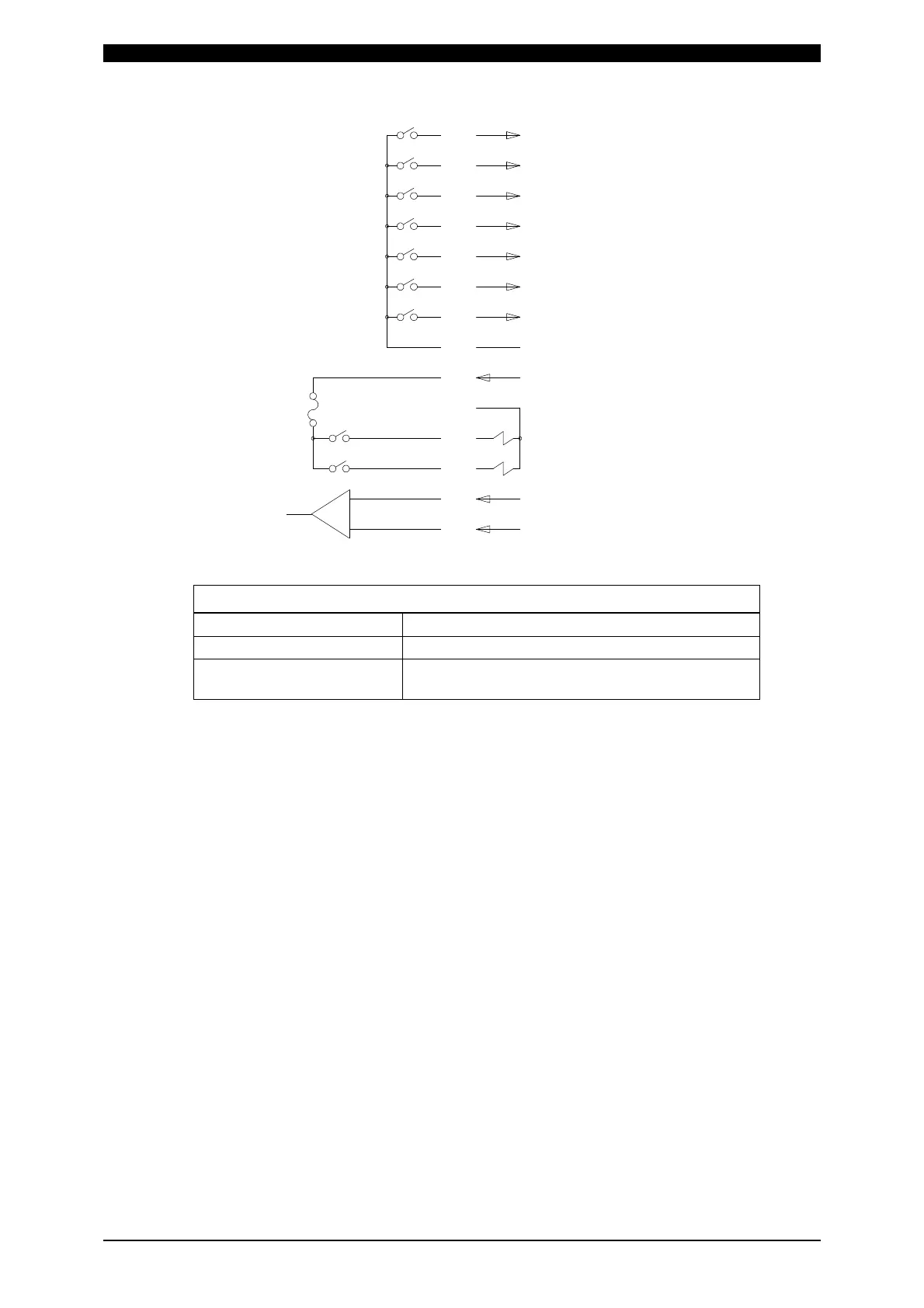

6. Interface
6-2
28
29
30
31
32
33
34
35
39
38
37
36
27
26
SOL COM
SOL 2
SOL 1
OUT COM
END
COUNT ERROR
READY
STEP END
CAUTION
NG
WELD SIGNAL
SOL POWER
VOLT SENS
Terminal strip specifications
Terminals connectable Two pieces max.
Pressure wire connectors M3 or M3.5 (7.1 mm wide)
Recommended wire size
0.75
mm
2
min. for pin nos. 34 to 37
0.5
mm
2
min. for pin nos. 1 to 33, 38 and 39
