LS User Manual
6.0
CONTROL CONSOLES
6.1
MAIN CONTROL CONSOLE DESCRIPTION
The unit has a Liquid Crystal Display (LCD) to show set-up information, load and extension values
etc. and a key pad to input information for operating the machine when under control of the console.
The machine is set up by answering simple questions and entering information when requested. The
operating status of the machine is shown and described on the display
.

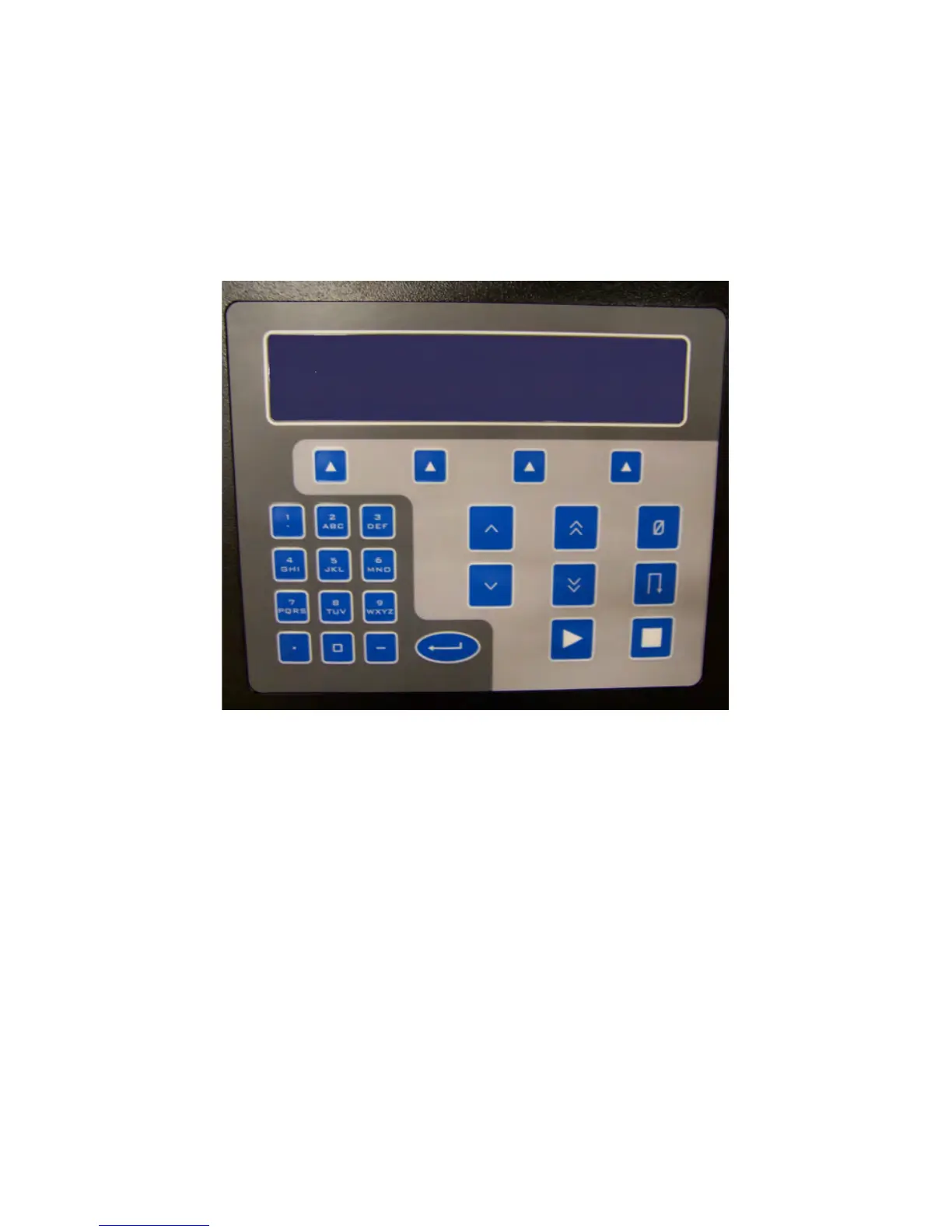

LS Control Panel
17
19
