3.6. Lubrication and Maintenance Operations

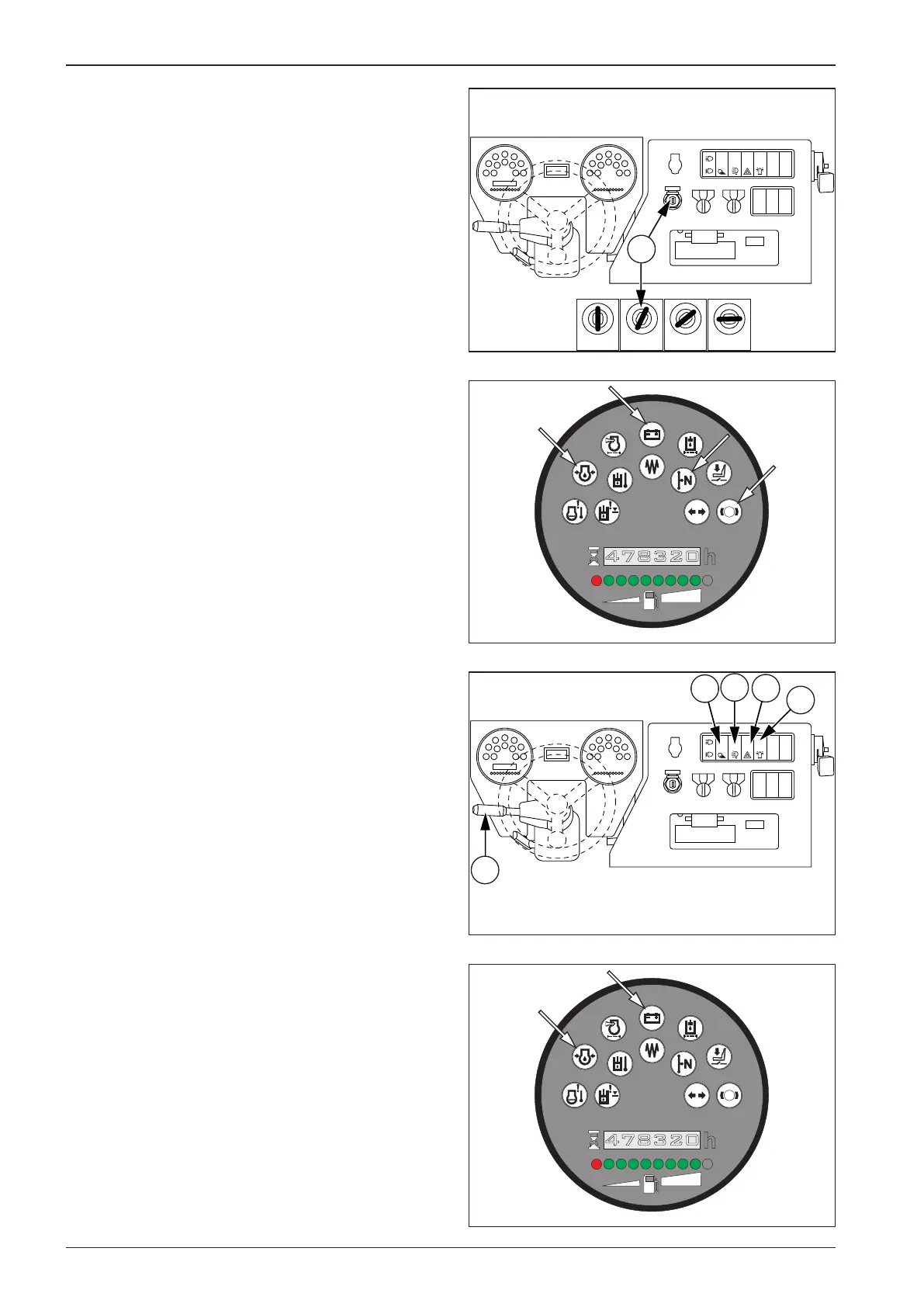

3.6.10. Inspect alarm and control devices
Turn ON the ignition key into position I.•
On the LH and RH clusters the automatic control of the light-•
ing function will occur, and this through the pilot lamps go-
ing on.
Then all the pilot lamps will go o on the RH cluster, and the •
lamps on the LH cluster will remain on:
Indicator lamp for the zero position of travel controller.
-
Brake alarm indicator lamp.
-
Battery charge control lamp.
-
Engine lubrication indicator - ickers.
-
Start the engine•
The indicator lamps on LH cluster must go o:•
Battery charge control lamp.
-
Engine lubrication indicator.
-
Note
If the engine is not started within 10 sec. after ignition key has
bee turned ON into position I, then acoustic signal will be ena-
bled (to warn operator of the battery possibly discharged).
In addition, please test if the switches (19 - 22) and the com-•
bined switch (17) work.
Note
When lights are switched ON the luminous intensity of indicator
lamps (25) and (26) on clusters will lower.
