Machine description
Tandem roller with an articulated frame with two smooth steel
driven vibrating drums. Steering using the articulated frame
enables the setting of extended track (crabbing).
Machine application
The AV 70 X vibratory rollers are intended for medium and large-
sized compaction works in transport construction (roads and
motorways and airelds) and building construction (industrial
zones, etc.).
The rollers are suitable for compacting the asphalt mixtures
up to a layer thickness (after compaction) of 140 mm (5.5 in),
hydraulically consolidated mixtures up to a layer thickness of
200 mm (7.9 in), mixed soils up to a layer thickness of 270 mm
(10.6 in), and sand and gravel materials up to a layer thickness
of 370 mm (14.6 in).
The rollers are not suitable for the compaction of rockll and
loam and clay materials.
The rollers are intended for the operation under conditions ac-
cording to ČSN IEC 721-2-1 (038900): WT, WDr, MWDr (i.e. a mod-
erate climate zone, warm dry or hot dry zone with a limited am-
bient temperature range from -7 °C (19.4 °F) to +45 °C (113 °F).
The standard type of the machine is not intended for road traf-
c. For more information, please contact your dealer.
Please ll in the following data:
(see Pin label, Label of the CUMMINS engine)
Type of machine
................................................................................................................
ICV/PIN (Serial number of the machine)
................................................................................................................
Production year
................................................................................................................
Type of engine
................................................................................................................
Serial number of the engine
................................................................................................................
The data mentioned in the table refer always when you contact
the dealer or manufacturer.

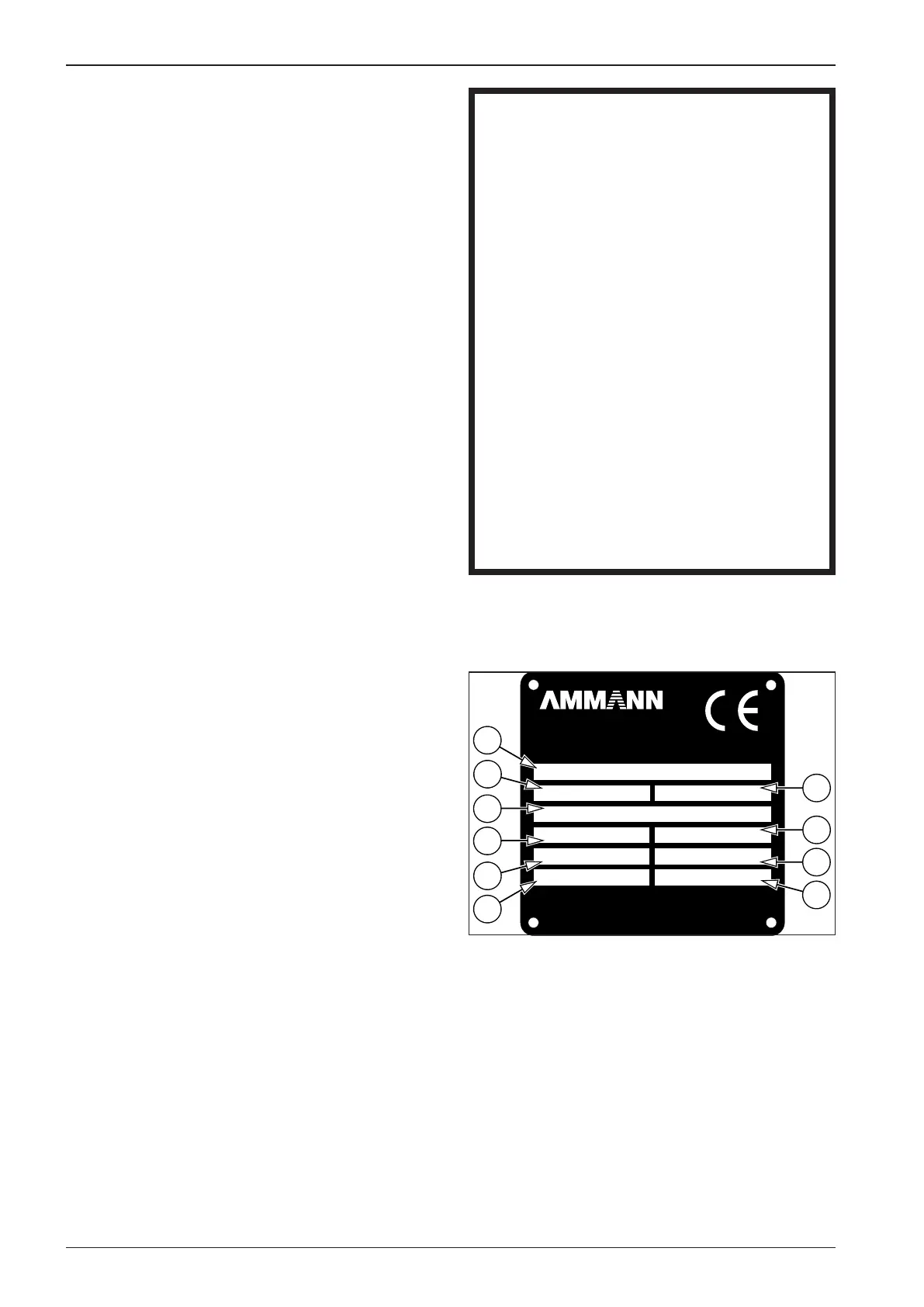

1.1. Basic specification
The machine that complies with the requirements as to heal-
th protection and safety is identied with a name plate with CE
marking.
1 - Name - always mentioned only in the English version
2 - Type
3 - Version
4 - Serial number
5 - Operating weight
6 - Maximum weight
7 - Rated power
8 - Front axle load
9 - Rear axle load
10 - Year of manufacture
