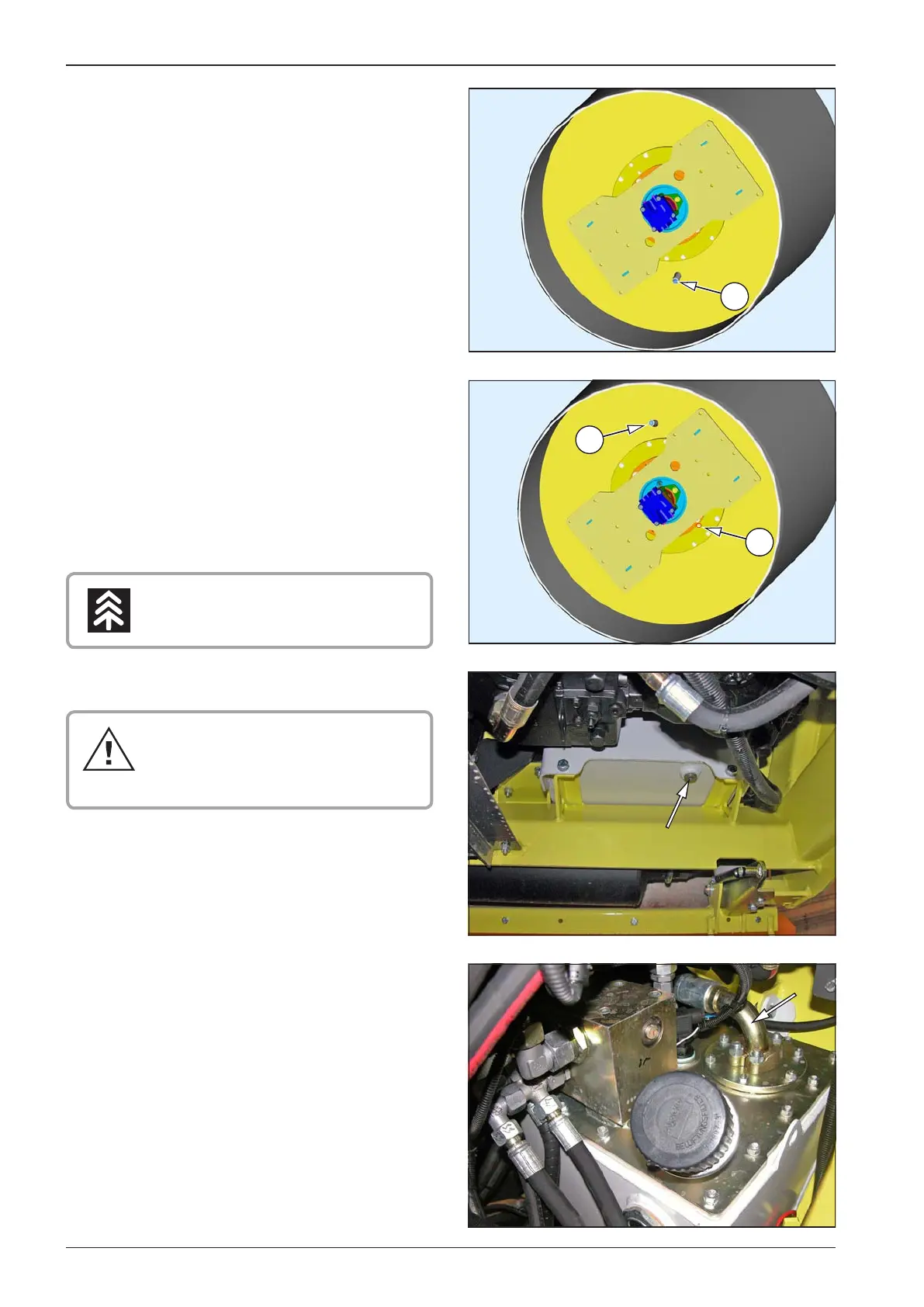

3.6. Lubrication and Maintenance Operations
3.6.27. How to exchange oil in the vibrators
How to drain oil:
Locate the Machine so the plug (1) is in its lowest position.•
Remove plug (1) and let oil pour down into the vessel of 15l •
(4 US gal) capacity.
Reinstall the plug.•
Note
Exchange oil at the time when oil is hot.
Let the drained oil to cool down below 50 °C (120 °F).
Oil lling:
Locate the Machine so the plug (1) is in its highest position.•
Remove the plug (1).•
Check the amount of oil through loosening plug (2), oil must •
ow out.
Reinstall the plug (2).•
Use port (1) to rell 2 more litres of oil (0,5 galUS). •
Reinstall the plug (1).•
Avoid oil escape into ground.
3.6.28. How to exchange hydraulic oil and lters
Carry out oil exchange before the season
starts, or following a rather long shut-
down of the Machine. At the same time
clean the inlet strainer, as well.
Dismount the drain plug.•
Let oil pour down into the vessel set up – total amount of oil •
owing out is 40 l (10,56 gal US).
Dismount the suction hose.•
