45AV 70 X
OPERATION MANUAL

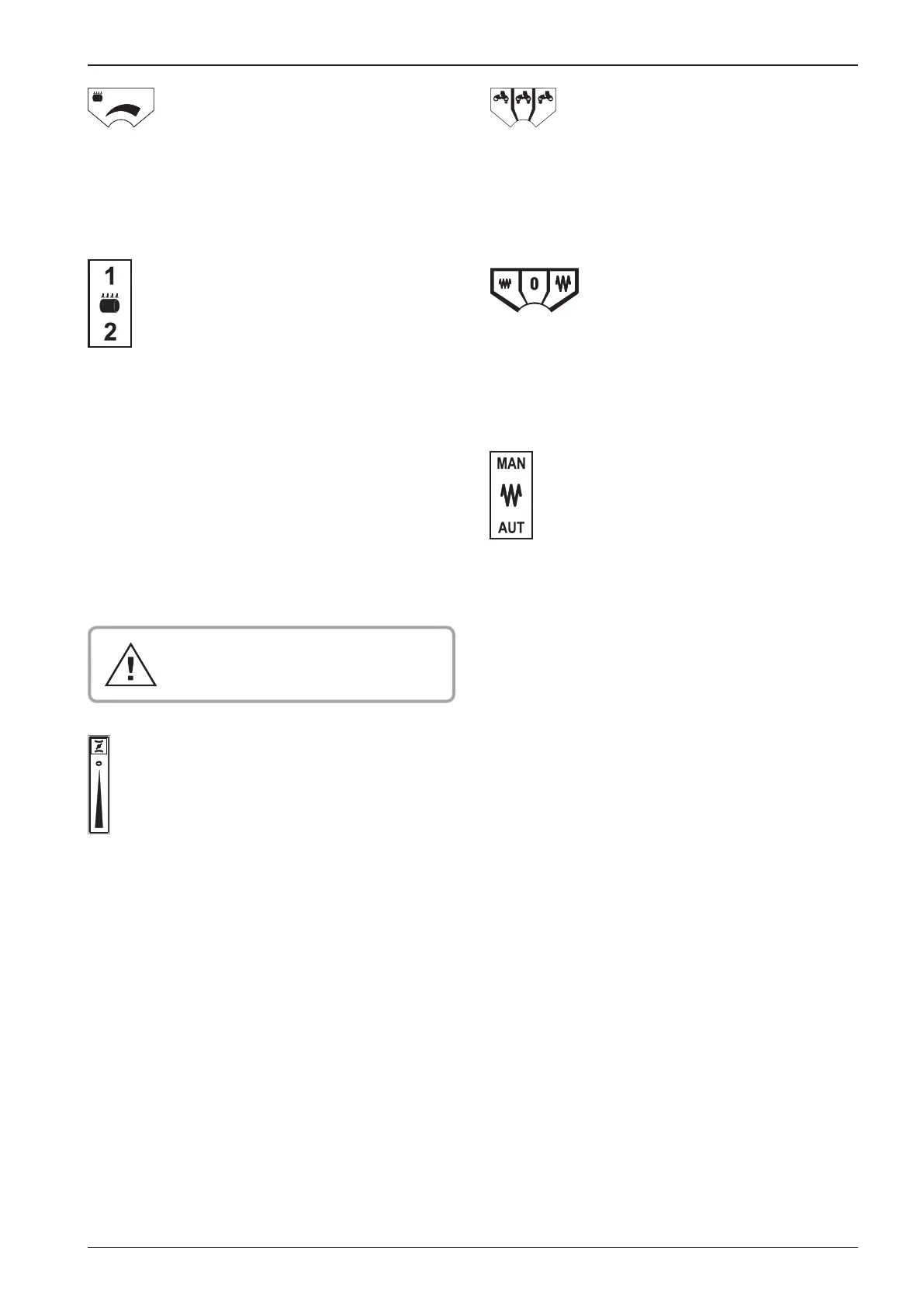

Sprinkling interval potentiometer (10)
Swing the sprinkling potentiometer from „MIN“ to „MAX“ posi-
tion to control smoothly drum sprinkling intensity.
Sprinkling function will not be enabled with the sprinkling
potentiometer set to MIN position.
Pumps sprinkling selector switch (11)
One of two drum sprinkling pumps will turn ON, and indicator
lamp on cluster (26) will light up.
Adjust sprinkling potentiometer before switching ON the
pump!
Ignition box (12 )
The ignition-starter switch has four positions “0-I-II-III”. It is only
possible to put in and remove the key at the position “0”.
Turning the key to the right at rst activates the position “I”, then
the suspended position “II” (engine heating), and afterwards the
position “III”.
”III” position is used to start the engine.
Protect ignition box with cover once the
key is pulled out.
Accelerator control (13)
It is used to adjust combustion engine rpm ranging from idle
to max speed. Move the accelerator control towards operator
seat to increase the rpm and vice versa. Accelerator control is
connected with the engine injection pump control lever via a
cable.
Drum vibration selector switch (14)
The selector switch has three positions:
Left – front drum vibration
Centre – both drums’ vibration
Right – rear drum vibration
Vibration amplitude selector switch (15)
The selector switch has three positions:
Left – low amplitude switched ON
Centre - OFF
Right – high amplitude switched ON
MAN / AUT vibration mode selector switch (16)
It is used to switch ON vibrations in MAN or AUT mode.
MAN – manual mode, vibrations can be switched ON even with
stationary Machine.
AUT – automatic mode to switch OFF/ON vibrations
Cluster (17)
It is used to turn ON/OFF contour lights, dipped lights, distance
lights, trac-indicator lights and horn.
Indicator lamps (23) light up to signal contour, dipped, and dis-
tance lights are ON.
Indicator lamp on cluster (25) lights up to signal trac-indicator
lights are ON.
