Machine travel and reversation incl. vibrations
Adjust max engine rpm via accelerator control (13), and adjust
travel speed via speed potentiometer (2).
Use selector switch of the vibrating drum (14) to choose vibra-
tion (front / both / rear), and use vibration amplitude selector
switch (15) to choose high or low amplitude.
Vibration manual switching ON/OFF mode (MAN):
Use switch (16) to turn ON/OFF this function.
Press button (7) on travel control (1) to switch ON the vibration.
Indicator lamp on cluster (25) lighted up will signal this func-
tion.
Press button (7) on travel control (1) again to switch OFF vibra-
tion.
Note
MAN mode enables to switch ON vibration on stationary Ma-
chine, the travel controls (1) shall be in (0) position.
You can switch OFF the vibration by shifting travel controls (1)
to neutral (N) position.
Automatic vibration switching ON/OFF mode (AUT):
Use switch (16) to turn ON/OFF this function.
Press button (7) on travel control (1) to switch ON vibration.
Indicator lamp lighted up on cluster (25) will signal vibration
function.
Vibration will automatically switch ON at travel speed over 0,5
km x hour
–1
(0,3 MPH).
Vibration will automatically switch OFF at travel speed below 0,5
km x hour
–1
(0,3 MPH).
Automatic vibration function remains enabled even after travel
controls (1) have been moved via position (0).
Note
Vibration can be switched OFF through shifting travel controls
(1) to neutral (N) position.

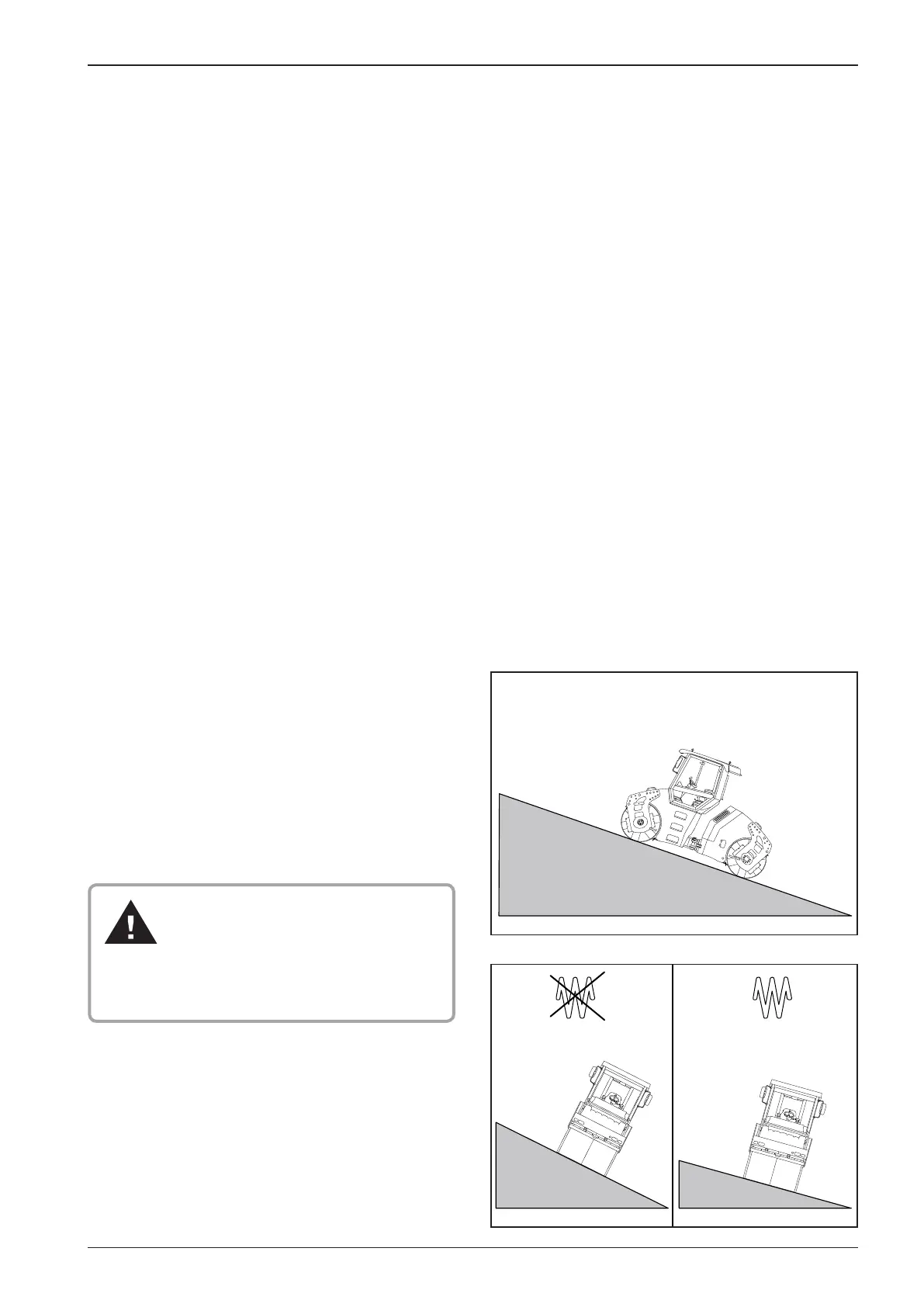

For the maximum permissible slope gra-
dient when driving uphill and across the
slope gradient, see gures.
The values given are lower depending
on adhesive conditions and the machine
instantaneous weight!
