Installation and Setup
46
Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver
4. Ensure the ground wire is positioned so that it does not interfere with any of the connectors.
5. Attach the ground wire to a common earthed ground (see “Attaching a Ground Wire to a Common
Earthed Ground” on the previous page).
6. Continue the DXLink Module installation process (or reapply power to the module).
Attaching Ground Wire to Wallplate TX or Decor Wallplate TX
The Wallplate TX and Decor Wallplate TX each have a designated ground screw on the rear; look for the
grounding symbol. If the DXLink Wallplate does not have a designated screw, use the screw directly
above the DXLink (RJ-45) connector on the rear for grounding.
To attach a ground wire to a DXLink Wallplate or Decor Wallplate TX:
1.
If powered, power down the unit by removing the DXLink cable from the rear.
2. Remove the ground screw and washer for the applicable unit, as indicated in FIG. 24.
3. Secure the ring terminal of the ground wire against the chassis with the ground screw and washer.

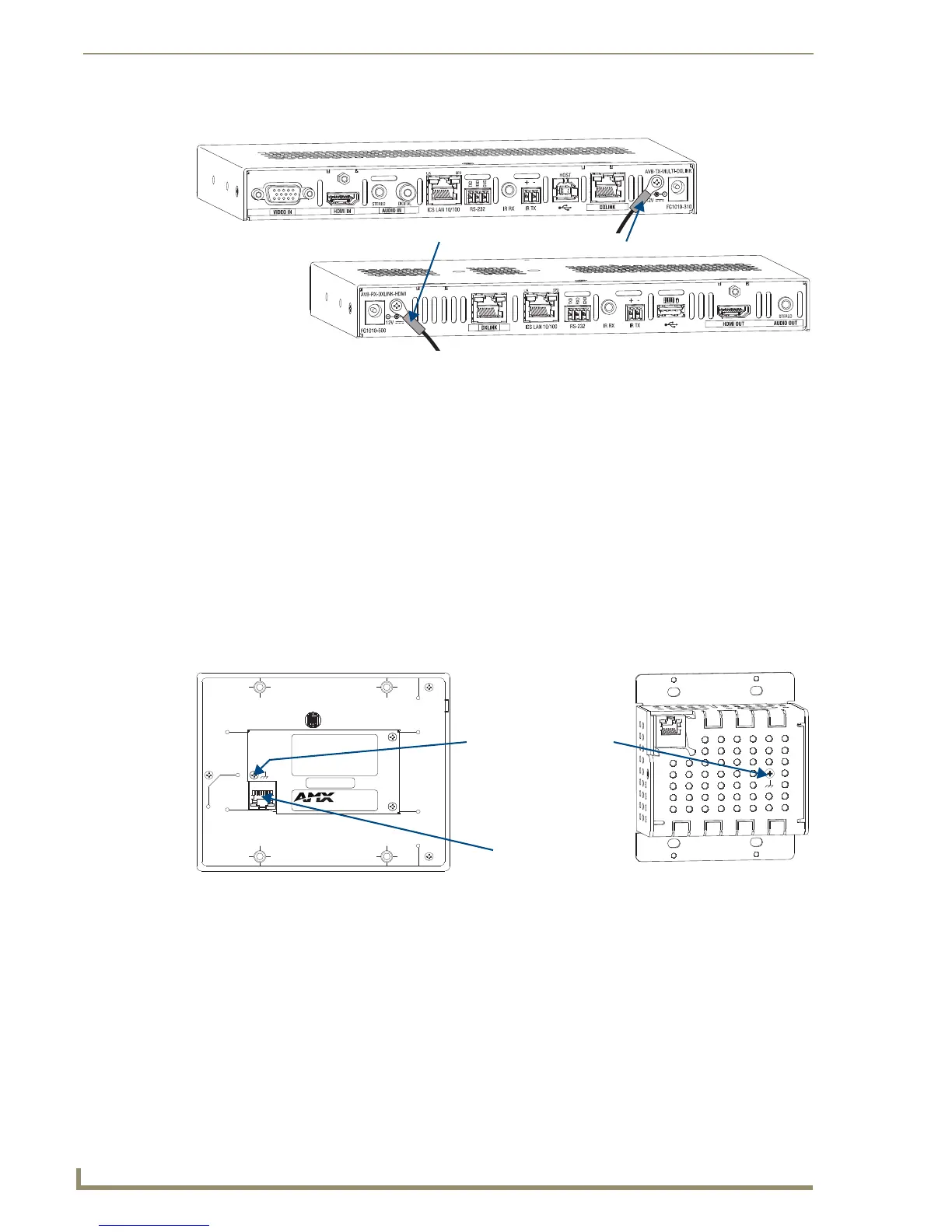

FIG. 23 Position ground wire away from connectors
FIG. 24 Wallplate TX and Decor Wallplate TX - Remove ground screw and washer
Correctly positioned ground wires
Designated ground screw
DXLink connector
