Modero S Series Touch Panels - Configuration & Programming Manual

Saving Changed Settings

Changes to the Settings pages are made to the device’s Flash memory, and may not be saved immediately to the panel in the case

of sudden power loss. To ensure that your changes are retained, always make sure to shut down the device from the main Settings

page (page 11). In situations of sudden power loss, the panel may boot up at its next use with only previously saved settings,

requiring resetting all of those settings to their new values.

NOTE: Modero S Series touch panels should always be shut down or rebooted by the Settings pages. Turning off a touch panel by

removing power may cause damage to the touch panel’s flash memory.

Settings

The Settings page (FIG. 5) controls access to all other settings pages within Modero S Series touch panels.

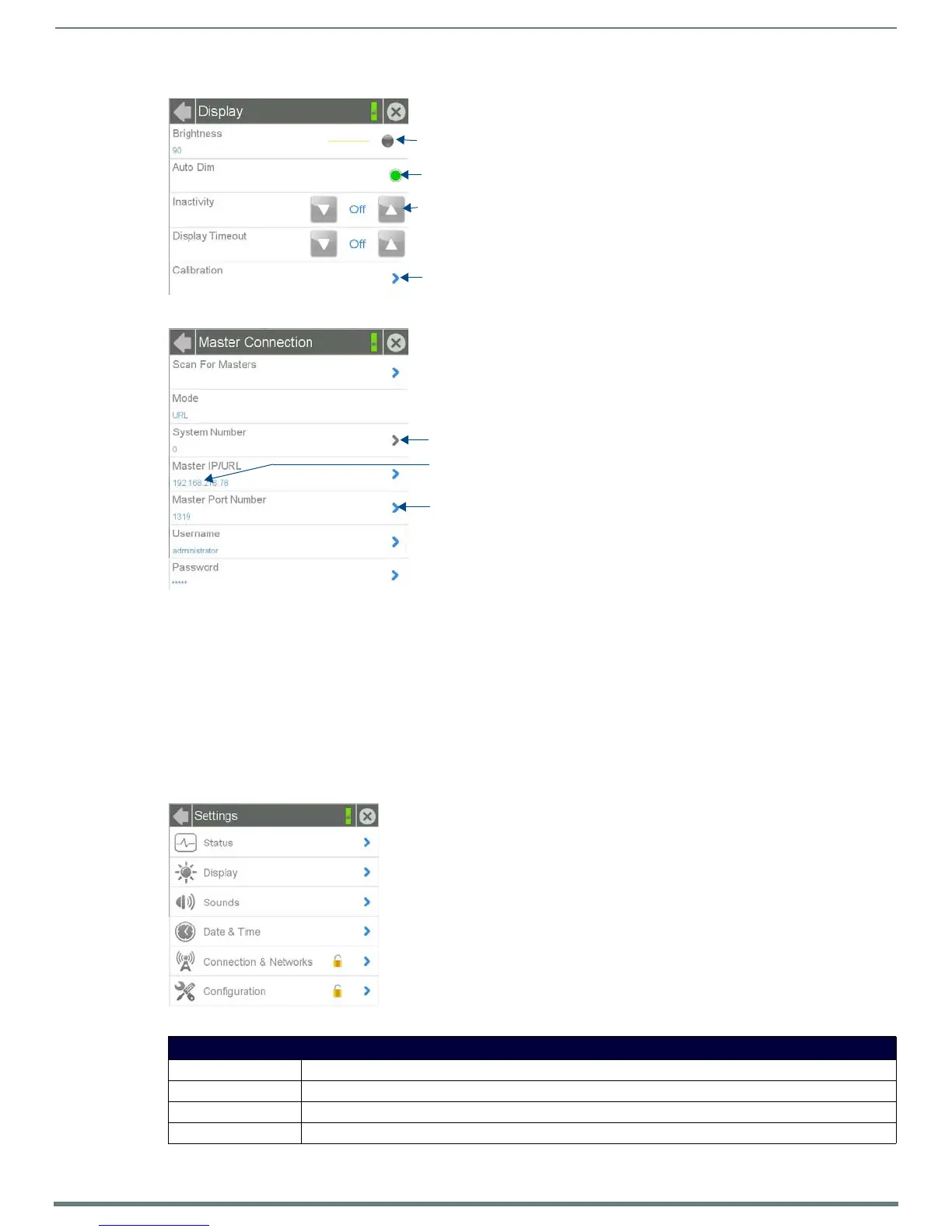

FIG. 3

Settings page with multiple modifiable sections

FIG. 4 Settings page with enabled and disabled arrows

FIG. 5 Settings page

Settings Page

Back: Click the left-facing arrow to return to the previous page.

Connection Status: A green bar signifies that the panel has an active connection to the Master.

Close: Click the “X” button to shut the Settings page and return to the main display.

Status: Select this to go to the Status page (page 12).

Drag the slidebar to adjust the panel brightness.

Press the button to enable or disable the feature.

Use the Up/Down arrows to adjust the information

listed between them.

Press the arrow to move to the next page (in this case,

the Calibration page).

Current Master IP/URL Setting

Press this arrow to go to the

Master Port Number keypad

This function is currently disabled

and modify its settings.
