Settings Pages
39
Modero S Series Touch Panels - Configuration & Programming Manual
Connection Utility

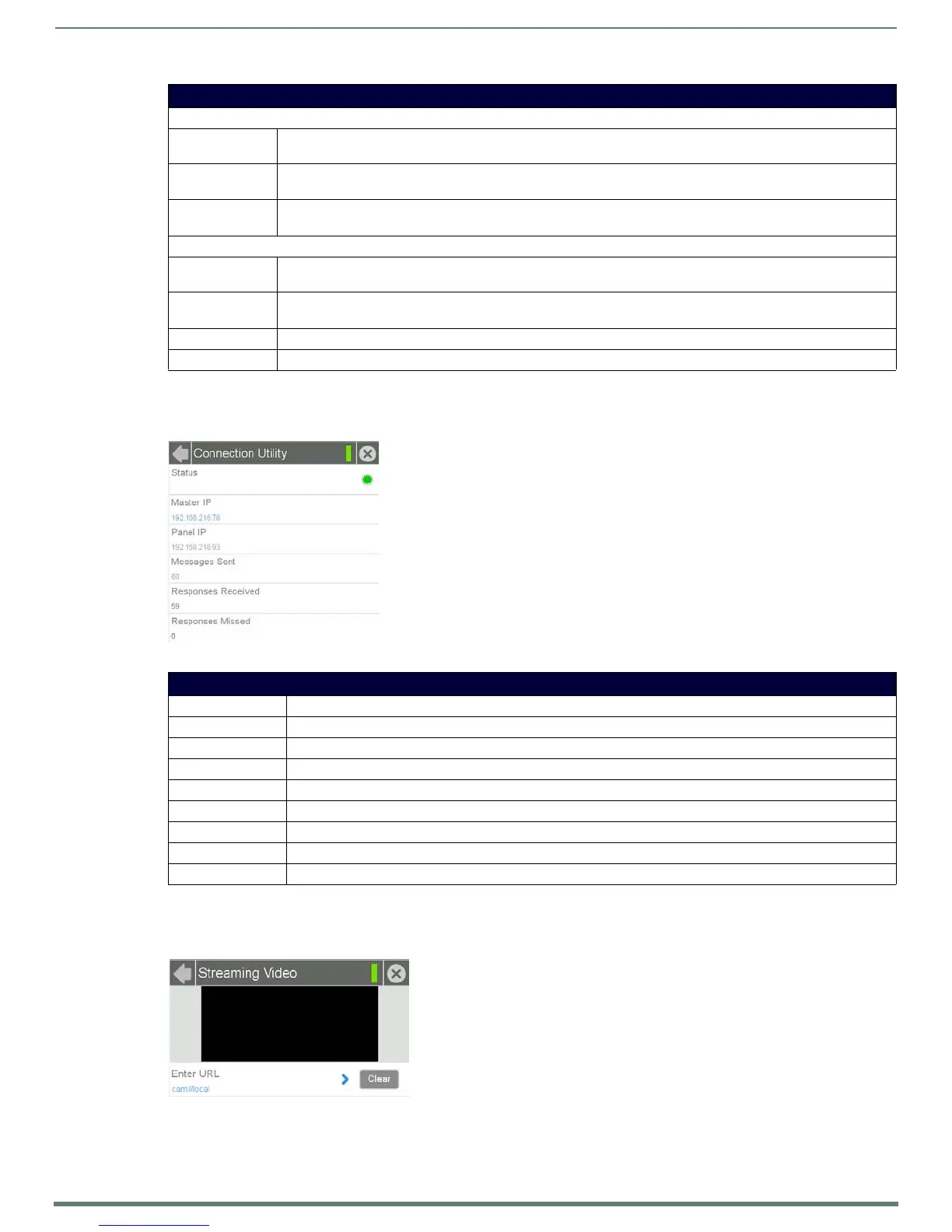

The Connection Status page (FIG. 65) displays the current connection information, including the latest Master and panel IP address
information.
Streaming Video
The Streaming Video page (FIG. 66) is used to preview video sources, such as those coming through an MXA-MP or MXA-MPL. For
more information on these devices, please refer to the MXA-MP/MPL Operation Reference Guide, available at www.amx.com.
ICSP Statistics Page (Cont.)
ICSP:
Received: Lists the number of ICSP messages received since the last time the page was cleared or refreshed, or within the last
15 minutes.
Processed: Lists the number of ICSP messages processed since the last time the page was cleared or refreshed, or within the last
15 minutes.
Dropped: Lists the number of ICSP messages dropped since the last time the page was cleared or refreshed, or within the last
15 minutes.
Blinks:
Received: Lists the number of blink messages received since the last time the page was cleared or refreshed, or within the last
15 minutes.
Missed: Lists the number of blink messages missed since the last time the page was cleared or refreshed, or within the last 15
minutes.
Clear: Clears all fields.
Refresh: Refreshes all data.
FIG. 65 Connection Utility page
Connection Utility Page
Back: Click the left-facing arrow to return to the previous page.
Connection Status: A green bar signifies that the panel has an active connection to the Master.
Close: Click the “X” button to shut the Settings page and return to the main display.
Status: Click this button to enable the Connection Utility page.
Master IP: The IP address for the network’s Master.
Panel IP: The IP address used by the device.
Messages Sent: Lists the number of queries sent to the Master.
Responses Received: Lists the number of responses received from the Master.
Responses Missed: Lists the number of responses missed by the Master.
FIG. 66 Streaming Video page

AMX MST-1001 Specifications

General

Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Touchscreen type	Tabletop
Display brightness	350 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Touchscreen technology	Resistive
Viewable size diagonal	256 mm
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Product color	Black
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	136 x 217 mm
Power supply type	DC
Power consumption (standby)	4.5 W
Power consumption (typical)	7.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Wall mountable	No
HDMI ports quantity	0
Graphics card	AMX G4
Internal memory	512 MB
Internal memory type	DDR
RMS rated power	1.5 W

Weight and Dimensions

Depth (without stand)	103 mm
Width (without stand)	264 mm
Height (without stand)	157 mm
Weight (without stand)	5530 g
