Medium-consistency pump MC
STANDARD, C-01-000000
Rev. 0, 2010.02.09 ERECTION WORK and TRANSPORT Kap.4 , Seite 3 of 12
GRZ-2698569-v1-Erection.FM
Lifting the
medium-consisten
cy pump
The complete medium-consistency pump should only be raised as follows
after unpacking:
The medium-consistency pump should not be raised until the lifting
devices have been attached to the frame. The lifting devices must be
short enough to prevent the medium-consistency pump from tilting
(
Abb. 4-2 and Abb. 4-3).

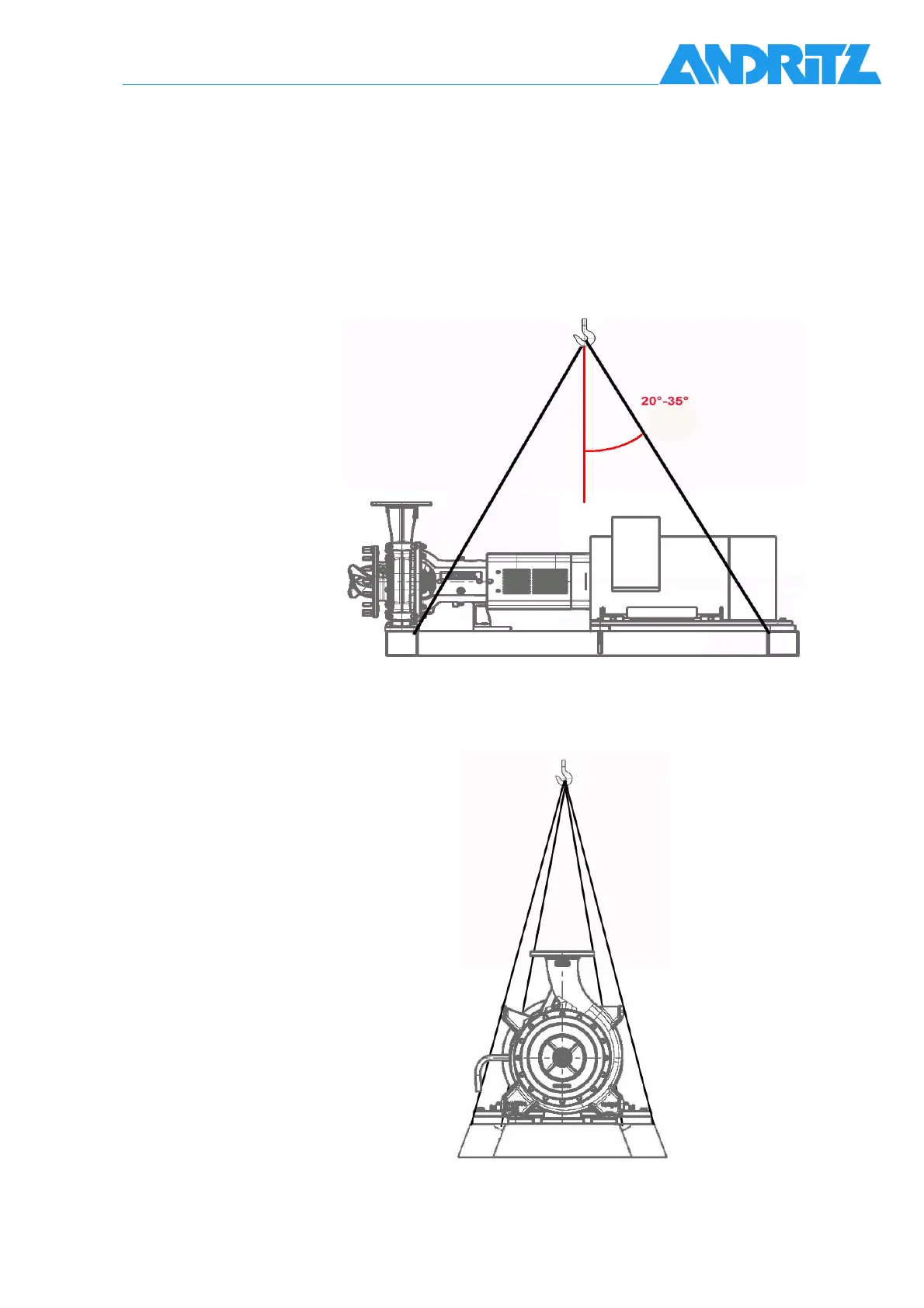

Abb. 4-2 Lifting the medium-consistency pump
Abb. 4-3 Lifting the medium-consistency pump
