Section 3 MS2667C
3-60
3.3.8 Connecting the cable to Diplexing Bandswitch and F2626 (YTF)

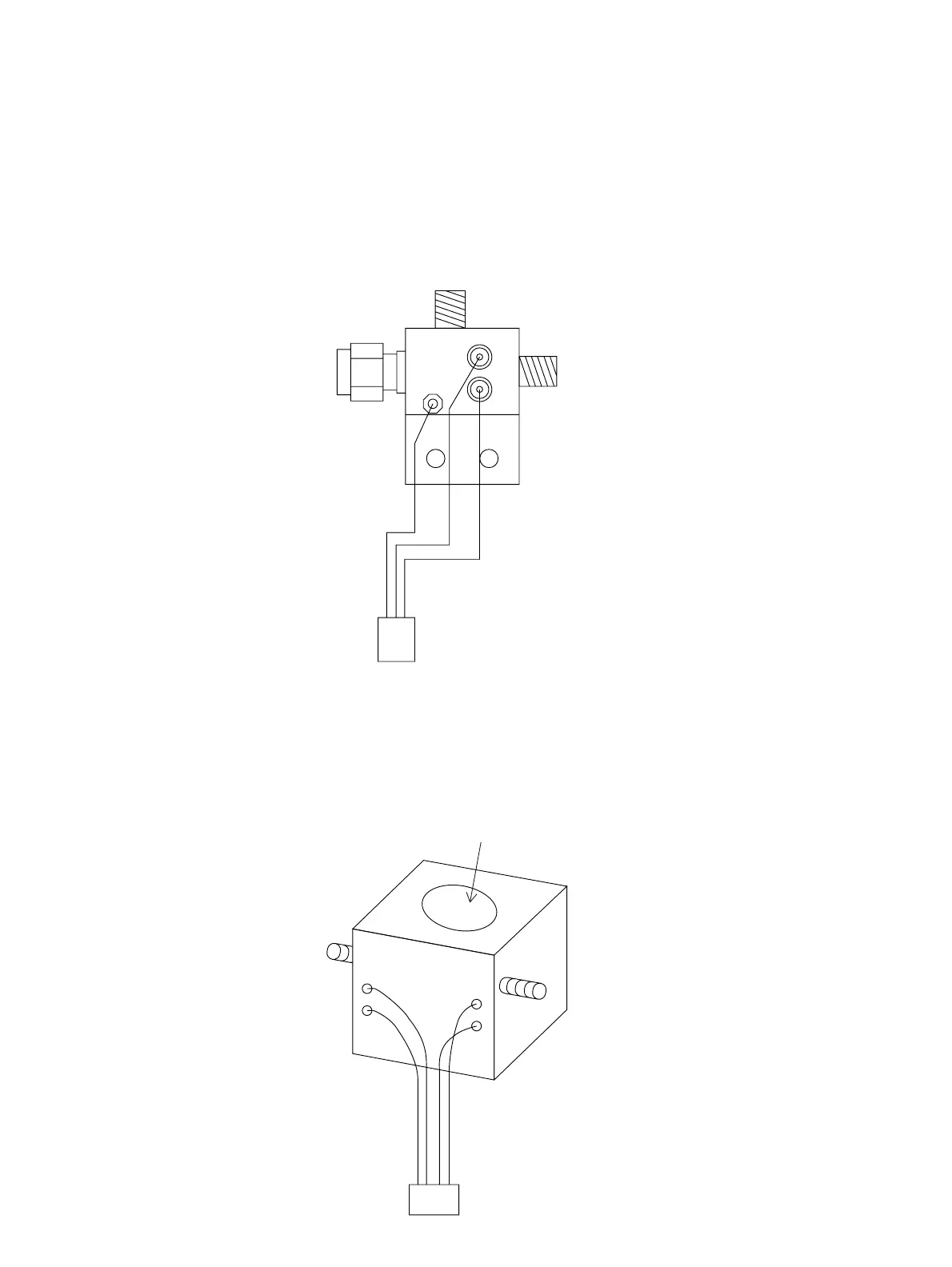

(1) Connecting the cable to Diplexing Bandswitch
Connect each wire of the cable to following terminal of Diplexing Bandswitch.
• Red (#2) wire to #1 pin of Diplexing Bandswitch
• Blown (#1) wire to #2 pin of Diplexing Bandswitch
• Orange (#3) wire to Ground pin of Diplexing Bandswitch
GND
1
2
Orange
Red
Brown
321
(2) Connecting the cable to F2626 (YTF)
Connect each wire of the cable to following terminal of F2626.
• Blown (#1) wire to “E5” pin of F2626
• Red (#2) wire to “E6” pin of F2626
• Orange (#3) wire to “E3” pin of F2626
• Yellow (#4) wire to “E4” pin of F2626
label
J1
J2
Yellow
Brown
54321
Orange
Red
E5
E6
E3
E4
.
