Anritsu MS2665C - Option 06 Trigger;Gate Circuit

Section 7 Options
7-12
7) Similarly, measure 90% of time span at each setting shown below :
6769B AM
frequency
90% of specification
(MIN/MAX)
25 usec
50 usec
500 usec
5 msec
800 kHz
400 kHz
40 kHz
4 kHz
22.275 usec/22.725 usec
44.55 usec/45.45 usec
445.5 usec/454.5 usec
4.455 msec/4.545 msec
The spectrum analyzer
time span
7.4.2 Option 06 Trigger/gate circuit
(1) Required equipment
1) 6769B Swept signal synthesizer (Anritsu)
2) Function Generator (HP3325B)

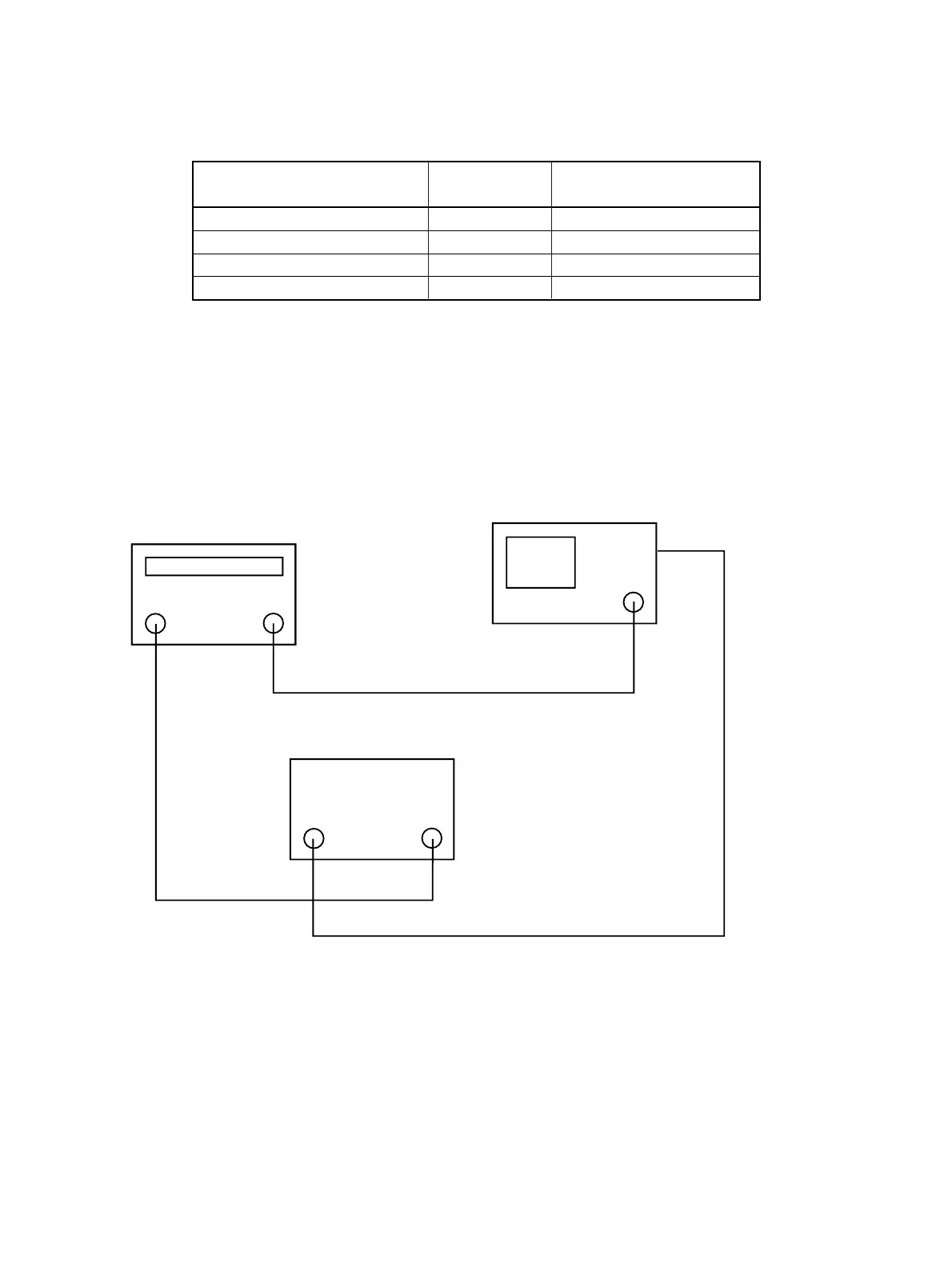

(2) Setup
6769B
The spectrum analyzer
RF Output
PULSE/TRIG
The function generator
RF Input
Sync Out
to Trig/Gate In
on the rear
Fig. 7-4-1
