Section 7 Options
7-14
7.4.2.2 GATE Check
(1) Set the spectrum analyzer to :
Time Span, 20 ms
Gate sweep, ON
Gate Display, 1 ms
Gate Length, 2 ms
Gate End, Int
(2) Measurement

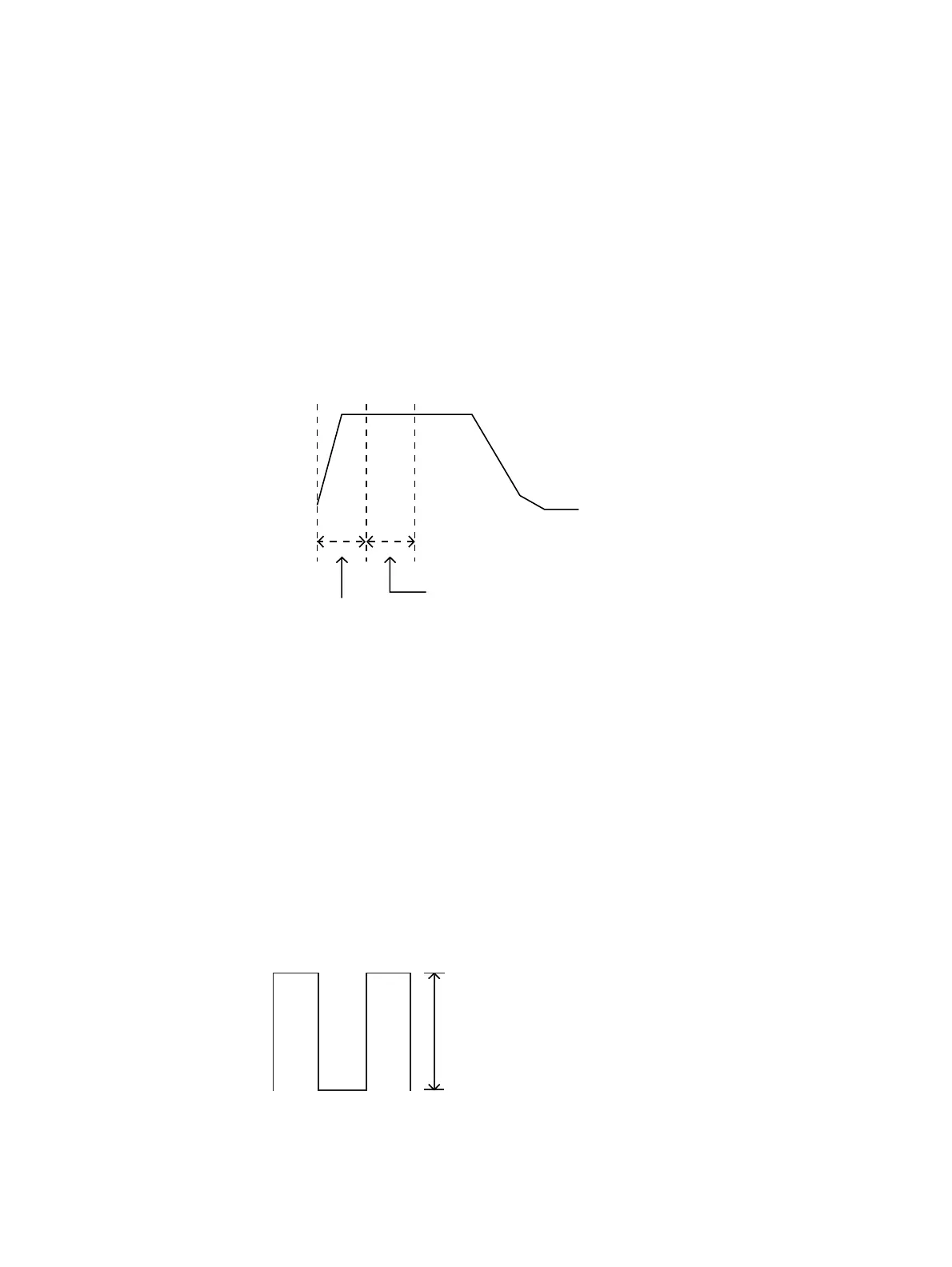

A wave-form like the one shown in View Fig. 7-4-2 should be displayed.
1 ms
2 ms
Fig. 7-4-2
7.4.2.3 VIDEO Trig Check
(1) Set the spectrum analyzer to :
Time Span, 20 ms
Gate sweep, OFF
Trigger, Triggered
Trigger, Source VIDEO
(2) Measurement
Change the trigger level, and make sure that synchronization is normal within the pulse range shown in Fig. 7-4-3.
Synchronization should be normal
in this range.
Fig. 7-4-3
