Anritsu MS2665C - Option 07 AM;FM Demodulator (Voice Monitor)

Section 7 Options
7-16
7.4.3 Option 07 AM/FM demodulator (voice monitor)
(1) Specifications :
AM >1.3 V peak to peak
FM (Narrow) >1.3 V peak to peak
FM (Wide) >1.3 V peak to peak
(2) Required instruments :
1) MG3633A Synthesized signal generator (Anritsu),
2) 8Ω terminator,
3) an earphone plug,
4) an oscilloscope.
(3) Setup :
MG3633A
Oscilloscope
The spectrum analyzer
to BUFFER OUTPUT
on the rear
to Ref In
on the rear
OUTPUT
to Phone connector
on the rear
8Ω terminator
RF Input

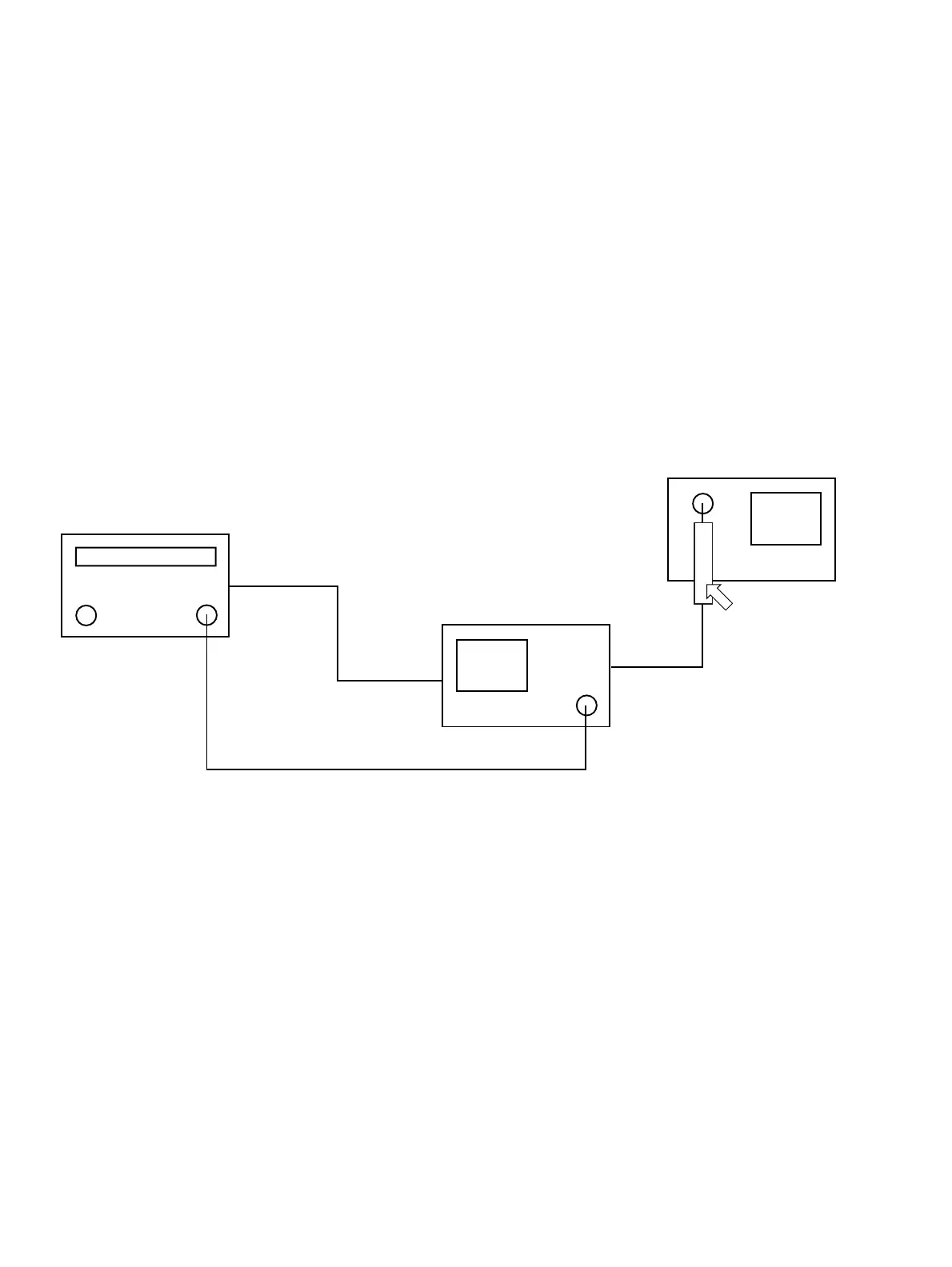

Fig. 7-4-4
