Anritsu MS2665C - Sweep Adjustment

Section 2 MS2665C
2-18
2.2.5.2 Sweep adjustment
Required equipment :
(1) 6769B Swept frequency synthesizer,
(2) MG3633A Synthesized signal generator,
(3) HP3478A Digital multimeter.

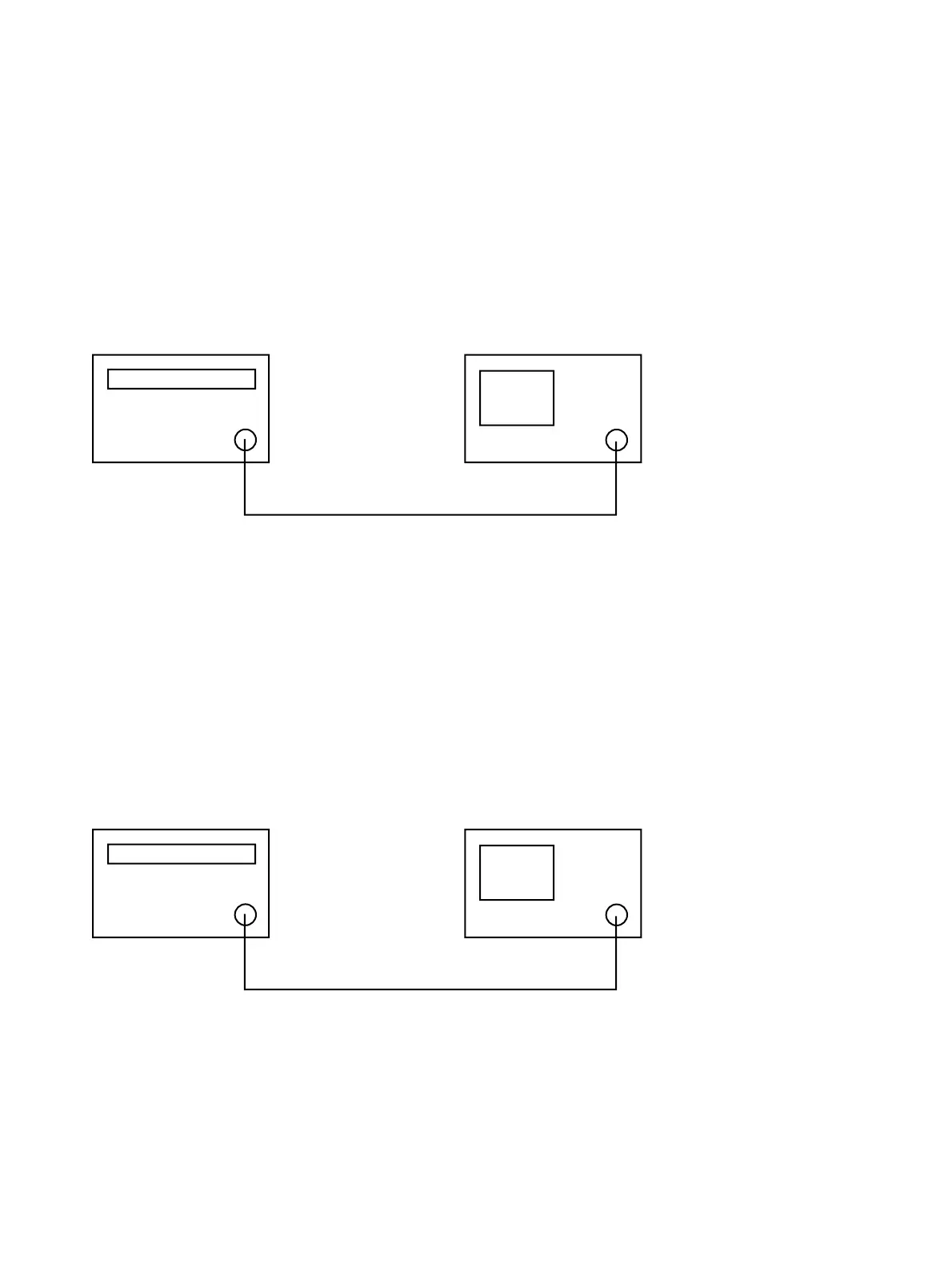

Setup for the procedure (1), (2) :
RF Input
Output
MG3633A
The spectrum analyzer
Fig. 2-2-3
Connect the spectrum analyzer RF Input to MG3633A OUTPUT.
Setup for the procedure (3) :
(1) Connect digital multimeter HI input to the TP4 terminal on A1306 MICRO DRIVER PC board attached to A13
MICRO CONVERTER.
(2) Connect digital multimeter LO input to the spectrum analyzer’s common.
Setup for the procedure (4), (5), (6) :
RF Input
RF Output
6769B
The spectrum analyzer
Fig. 2-2-4
(1) Connect the spectrum analyzer RF Input to 6769B RF OUTPUT.
