2-11 Test Panel Connectors Quick Start Guide
2-24 PN: 10580-00305 Rev. J MS20xxC UG
USB Interface - USB Type Mini-B
The USB 2.0 interface can be used to connect the VNA Master directly to a PC. Refer to
Figure 2-13, item “14” on page 2-20 for the USB connector location. Refer to Figure 2-17 for
an example of a PC connection that is also using Master Software Tools. The first time that
the VNA Master is connected to a PC, the normal USB device detection will be performed by
the computer operating system. The CD-ROM that is shipped with the instrument contains a
driver (for Windows 2000 and Windows XP) that is installed when Master Software Tools is
installed. Drivers are not available for earlier versions of the Windows operating system.
During the driver installation process, place the CD-ROM in the computer drive and specify
that the installation wizard should search the CD-ROM for the driver.
USB Interface - USB Type A
The VNA Master can also act as a USB Host, which allows various USB Flash Memory
devices to be connected to the instrument for storing measurements and setups. Refer to
Figure 2-13, item “13” on page 2-20.
Note
For proper detection, either Line Sweep Tools or Master Software Tools must be
installed on the PC prior to connecting the VNA Master to the PC USB port.

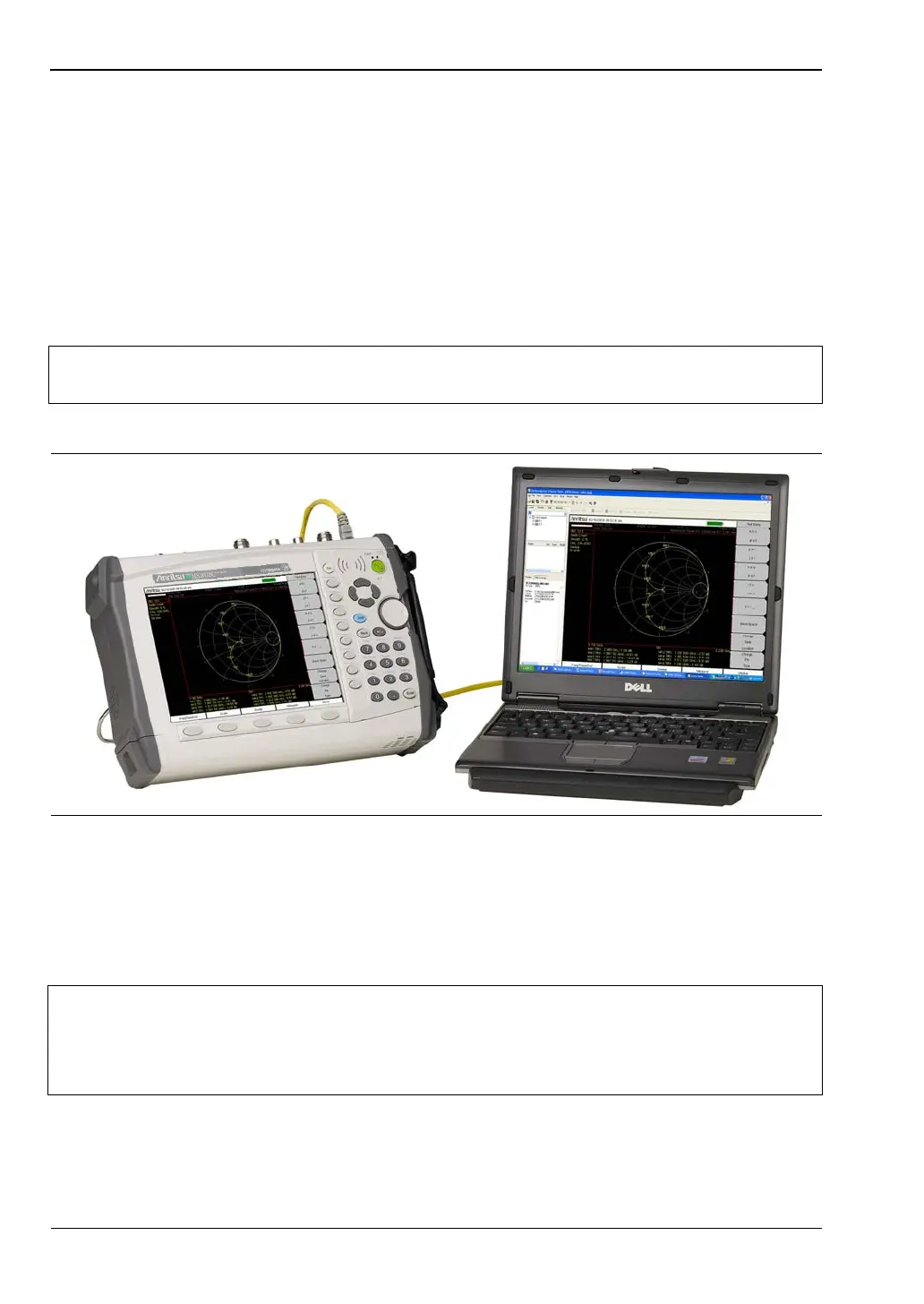

Figure 2-17. MS2028C Connected to PC via USB Mini-B
Note
For proper operation with the instrument, USB Flash Drives should be formatted
using either FAT (for drives that are 2GB or less) or FAT32.
USB drives with NTFS formatting may not be correctly recognized by the
instruments.
