File Management 5-3 Managing Files
MS20xxC UG PN: 10580-00305 Rev. J 5-5
Copy Files
The steps below describe copying a file from internal memory to an external USB flash drive.
(Copying in the reverse from USB to internal memory is accomplished by using the
Scroll Src Dst submenu key.) Select the files to copy in the top window and the location for the
files (to be copied) in the bottom window (Figure 5-3). Refer to the “Copy Menu” on page 5-14
for additional information.
1. Insert a USB drive into either USB Type A port of the VNA Master.
2. From the File main menu, press the Copy submenu key. The Copy menu and Copy
dialog box are displayed.
3. Select the files that are to be copied. To select multiple files, highlight the first file, then
press the Select or De-Select key to keep the file selected. The selected file is outlined in
blue. Repeat with all the files that are to be copied. To display files in a folder, select the
folder and press the Enter key.
4. Press the Scroll key and highlight the USB drive in the lower window using the
Up/Down arrow keys. The Scroll submenu key toggles between source and destination,
Src (top window) and Dst (bottom window).
5. Press the Copy key to copy the files to the USB flash drive.

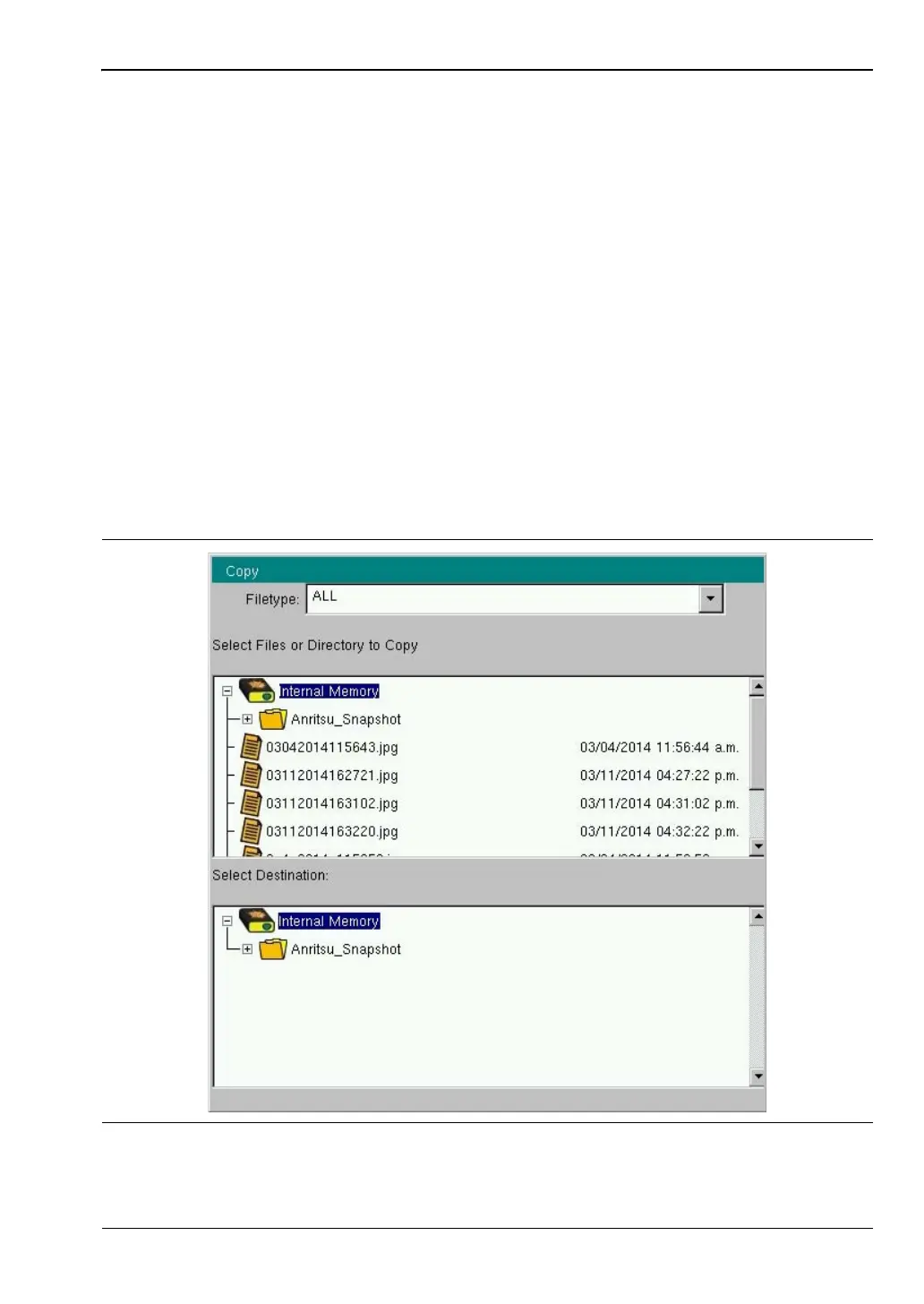

Figure 5-3. Copy Dialog Box
