Appendix E: Anybus CompactCom 40 without Housing 113 (114)

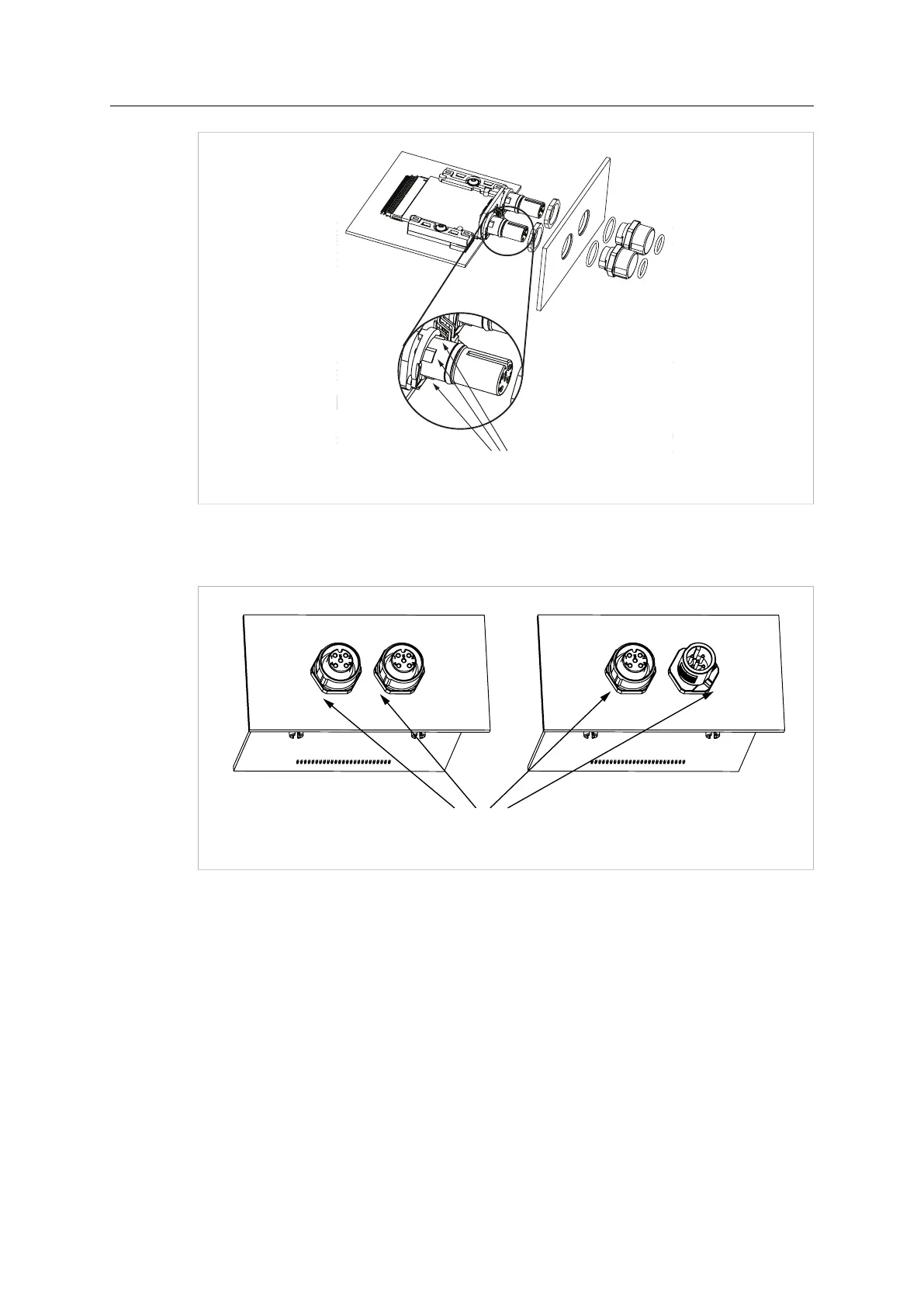

Guides for

mechanical

keying.

Fig. 73

There are also markings on the casings of the connectors to make it easier to mount the

connectors at the correct mounting angle.

Markings that show the correct mounting angle.

Fig. 74

Anybus

CompactCom

™

M40 Hardware Design Guide HMSI-216-126 EN 2.6
