Apollo Thunderbolt Software Manual Console Reference 104
Monitor Level Indicator
In addition to indicating the relative signal level of the monitor outputs, the state of
several other functions is indicated by the color of the ring around the monitor level
control:
Green – The main monitor outputs are active with variable level control (normal)
Green (fixed at maximum) – Monitoring is bypassed in Console Settings
Red – The main monitor outputs (and ALT monitor outputs, if configured) are muted
Orange – The ALT 1 monitor outputs are active
Yellow – The ALT 2 monitor outputs are active
Flashing – The monitor DIM and/or MONO functions are active

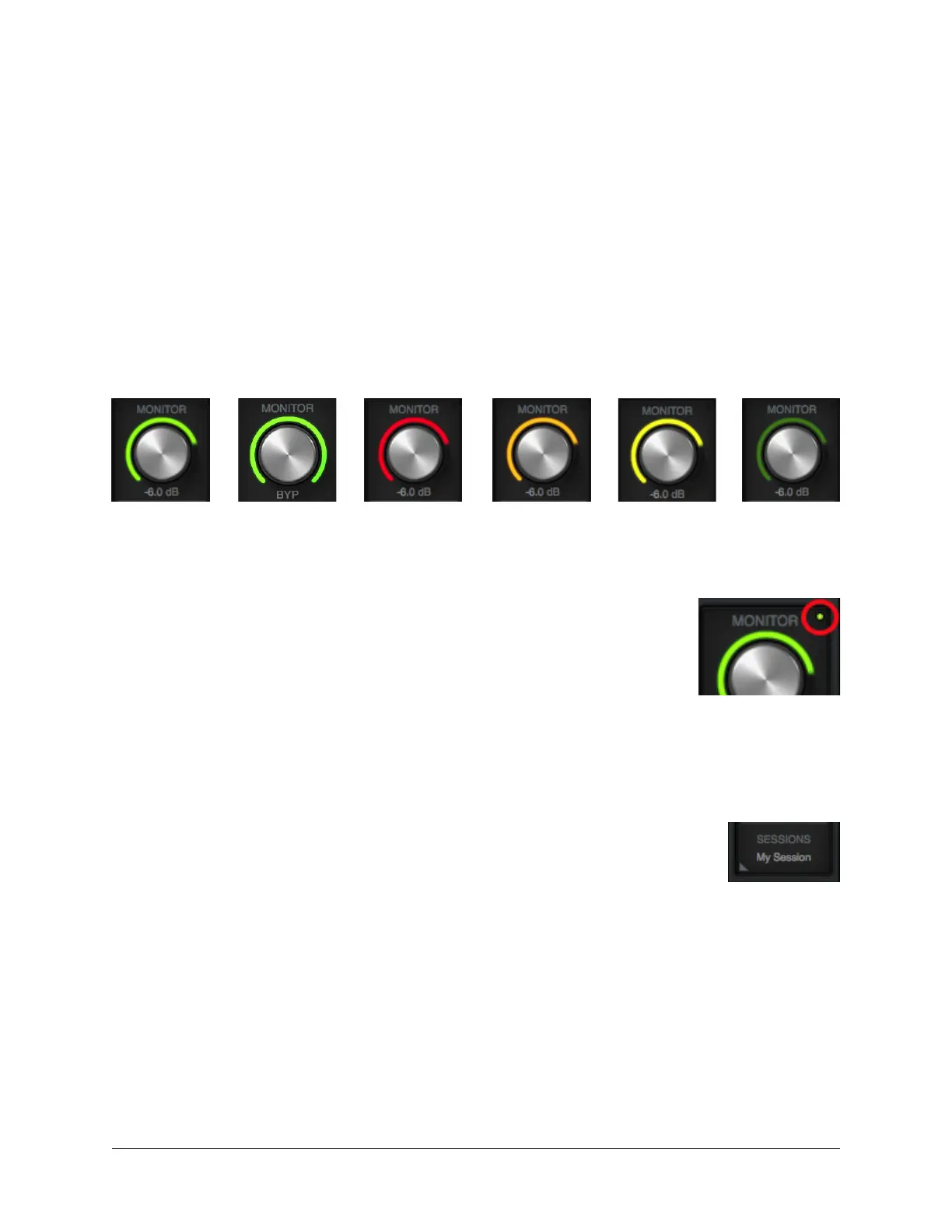

Monitor level indications (from left to right): Normal, Bypass, Mute, ALT 1, ALT 2, and DIM/MONO
Apollo Twin Dot (Apollo Twin only)
When the Monitor Level function is active on Apollo Twin’s hardware
(when its white MONITOR indicator is lit), a green dot is visible in
Console adjacent to the MONITOR text label, as circled in red at right.
The dot provides a visual indication that the MONITOR level adjust
function is active on the Apollo Twin hardware. When the dot is not
visible, adjusting Apollo Twin’s hardware level knob will not adjust the
monitor level.
Sessions Switch
This switch is used to access the Sessions Manager Popover (single-click)
or the Sessions Menu (right-click), where Console configuration preset
files are managed. For complete details about these features, see Console
Sessions.
Apollo Twin’s
MONITOR dot
