Apollo Thunderbolt Software Manual Console Reference 108
Control Room Column
The control room column is where various options for the monitor
outputs are configured and selected.
Show Column
By default, the control room column is not visible. To show the
column, enable the CTRL ROOM switch in the SHOW section of
the monitor column.
Tip: When Apollo Twin MkII is connected and CTRL ROOM is
enabled, the Talkback Input Strip is also visible. See Apollo
Twin MkII Talkback for details.

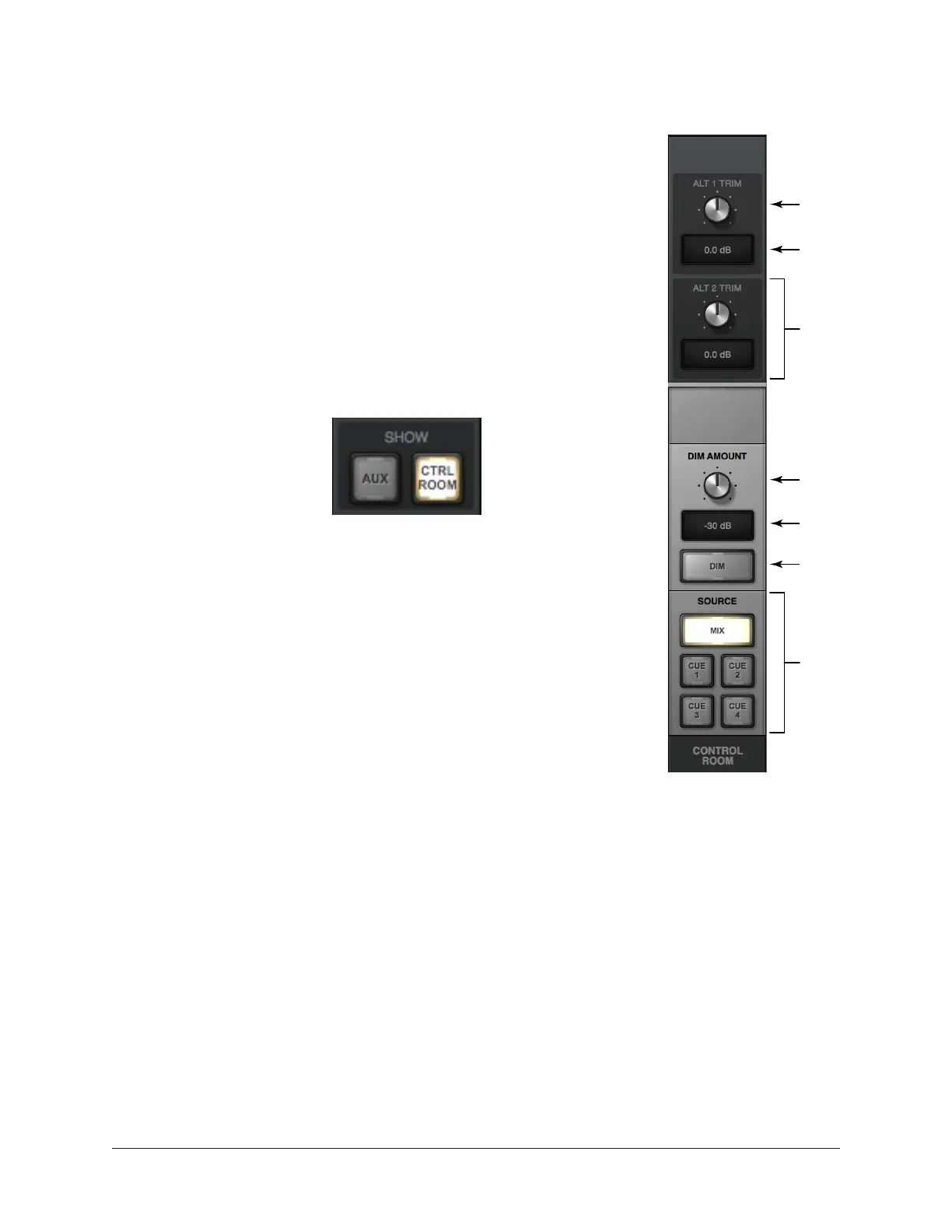

The Show CTRL ROOM switch in the monitor column
ALT Trim Controls
The ALT trim controls are typically used to compensate for
different levels of the alternate monitor speakers so they have the
same apparent volume as the main monitor speakers.
Note: ALT controls are only visible when the ALT COUNT menu
in the Hardware panel within the Console Settings window is
set to a non-zero value.
See ALT Monitoring Overview for more details.
ALT Level – Adjusts the output level of the main monitor mix when it is routed to a
different pair of Apollo line outputs via the ALT monitoring function. The default value is
0 dB with an available range of ±30 dB.
ALT Value – The current ALT level value in dB is displayed.
ALT 2
(Apollo
rack
models)
Monitor
Source
Select
DIM
Enable
DIM
Amount
DIM
Level
ALT
Value
ALT
Level
Control Room column
