Apollo Thunderbolt User Manual

Apollo Thunderbolt Software Manual UAD Plug-In Inserts 131
Channel Strip Presets
A Channel Strip preset contains all settings for all plug-ins within the channel strip.
Channel strips presets are saved and/or loaded via the Presets Manager.
Accessing Channel Strip Presets
The Presets Manager for Channel Strips can be accessed with these two methods:
• Click the Presets Manager button within the Channel Strip edit window.
• Click the word “INSERTS” in the area above the channel inserts
in OVERVIEW or INSERTS views (as shown at right). This meth-
od can be used to load Channel Strip presets when plug-ins are
not already loaded in the channel inserts.

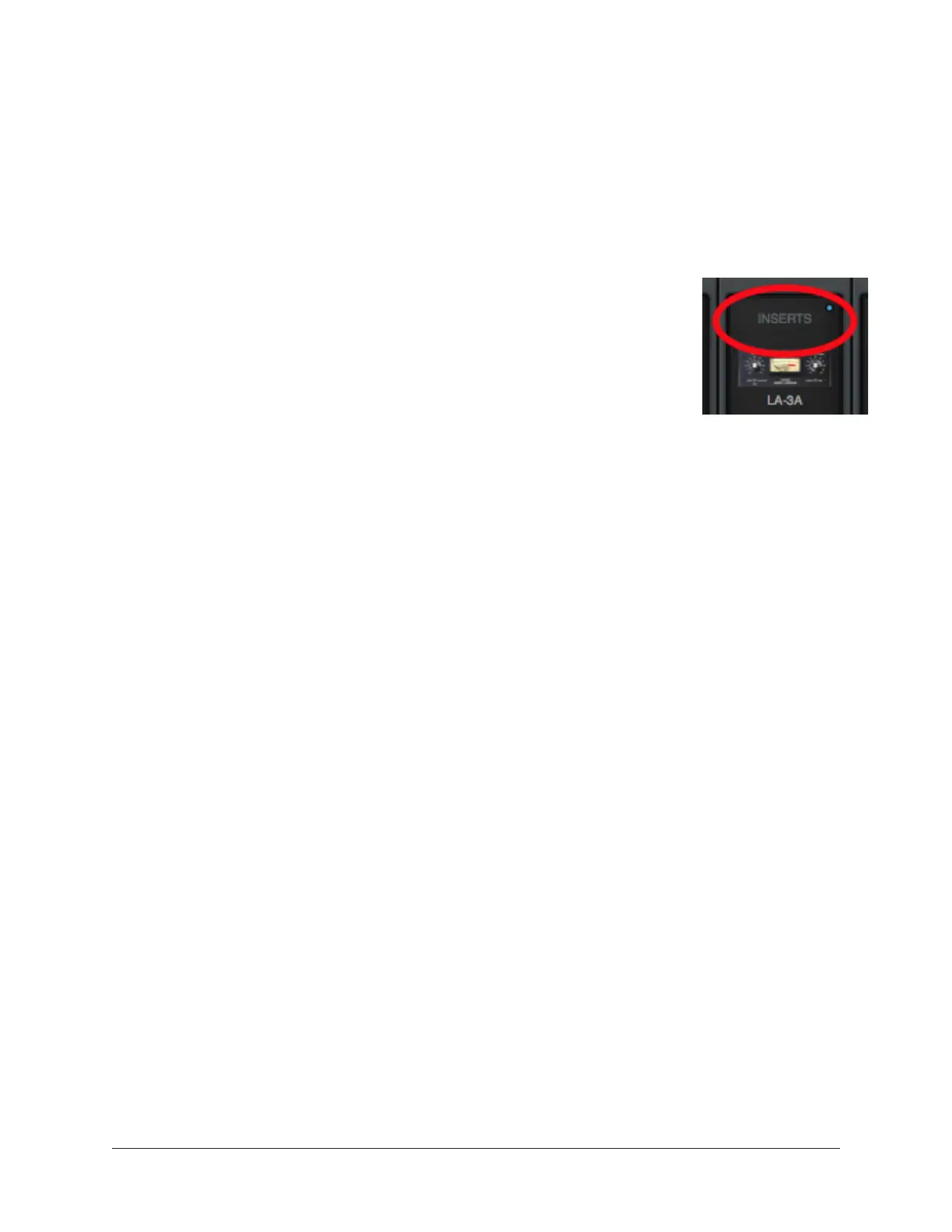

Click “INSERTS” to
access Channel Strip
presets

Apollo Thunderbolt Specifications

General

Type	Audio Interface
Connectivity	Thunderbolt
Bit Depth	24-bit
DSP	UAD-2
Sample Rate	192 kHz
Thunderbolt Ports	2
DSP Processing	UAD-2
Software Included	UAD Software
