1. Select sufficient collet spacers (optional), to position restraint rod perpendicular to road
with DMI and universal hub adapter installed. No interference between restraint rod and
vehicle fender and body is permitted.
2. Select bolts 1 in (2.54 cm) longer than total collet spacer height.

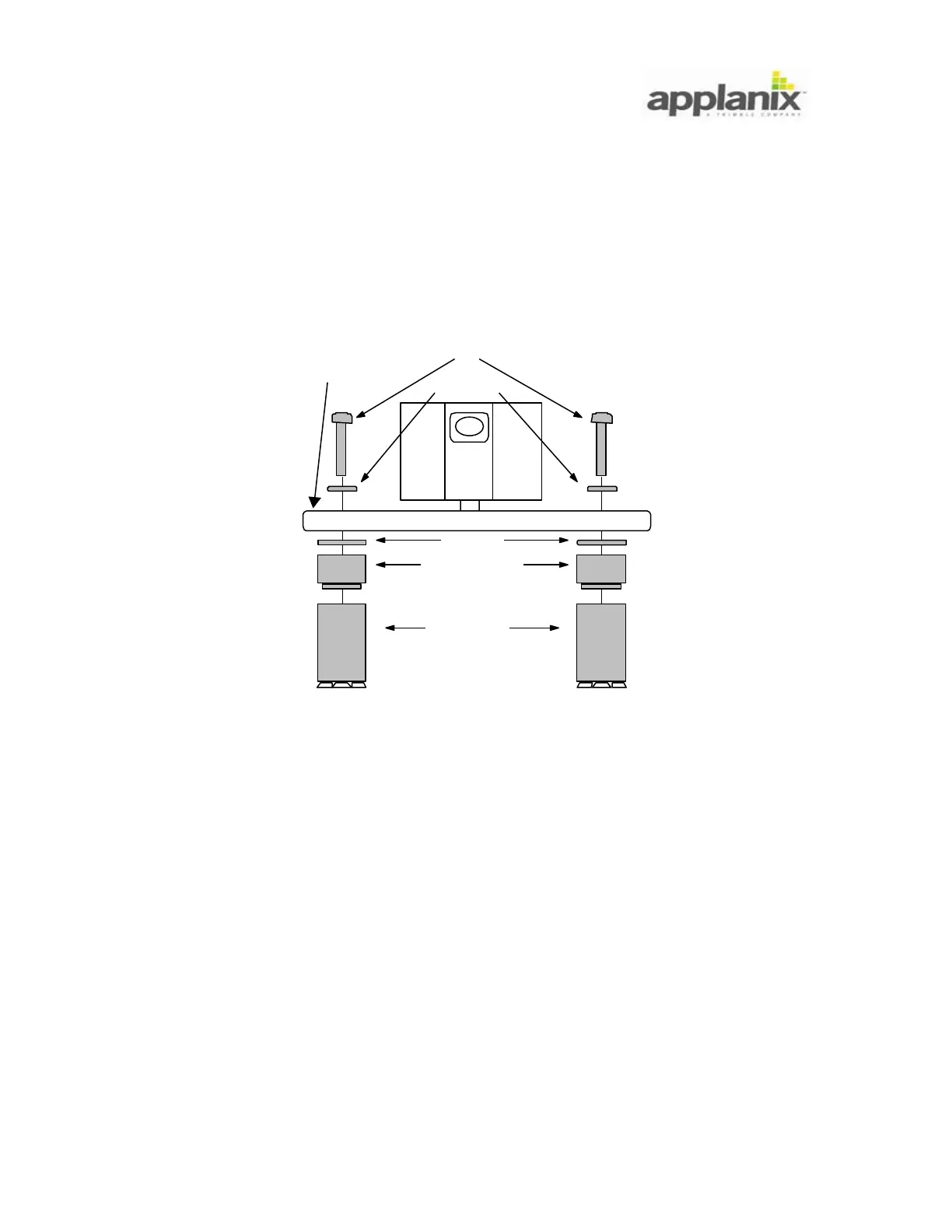

3. Assemble DMI using universal hub adapter, collet spacers, collets, washers and bolts in
order (Figure 5).
4. Keep bolts loose permitting collet jaws to fit over wheel nuts.
