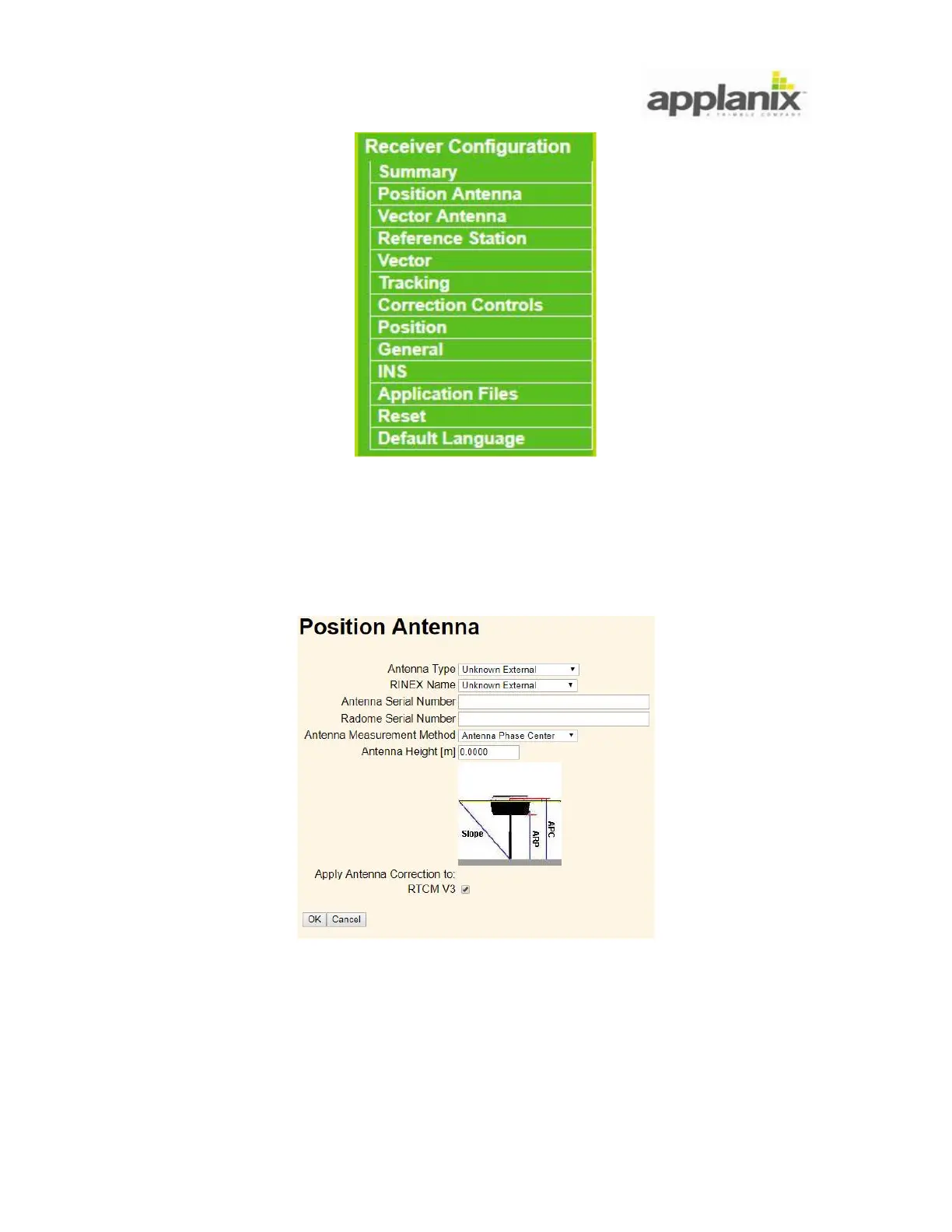

Figure 26: Receiver Configuration
4.6.1. Antenna Configurations:
If the antennas being used with the LVX are not on the list under Antenna Type, please
select the type as “Unknown External”. The measurement method should always be set
as the “Antenna phase center”.
Figure 27: Antenna Configuration
