Applanix LVX - Figure 7: Slip Collets over Wheel Lug Nuts; Figure 8: Slip DMI Restraint Bracket over Restraint Rod

9
THE INFORMATION CONTAINED HEREIN IS PROPRIETARY TO APPLANIX CORPORATION. RELEASE TO THIRD PARTIES OF THIS PUBLICATION OR OF
INFORMATION CONTAINED HEREIN IS PROHIBITED WITHOUT THE PRIOR WRITTEN CONSENT OF APPLANIX CORPORATION. APPLANIX RESERVES THE
RIGHT TO CHANGE THE SPECIFICATIONS AND INFORMATION IN THIS DOCUMENT WITHOUT NOTICE. A RECORD OF THE CHANGES MADE TO THIS
DOCUMENT IS CONTAINED IN THE REVISION HISTORY SHEET. COPYRIGHT © APPLANIX CORPORATION, 2021ALL RIGHTS RESERVED. NO PART OF
THIS PUBLICATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS WITHOUT THE
PRIOR WRITTEN CONSENT OF APPLANIX CORPORATION.
10. Attach DMI restraint bracket:
• Permanent - attach bracket using predrilled holes in rear fender lip using metal
screws (refer to Mounting Brackets on page 5 and Figure 9).
• Temporary using suction cups - thread spacers (if required) and suction cups onto
fender bracket, then fix fender bracket to vehicle body.
• Temporary using magnetic body strip - thread spacers (if required) and use flat head
nylon screws to attach the magnetic strip, then fix fender bracket to vehicle body.

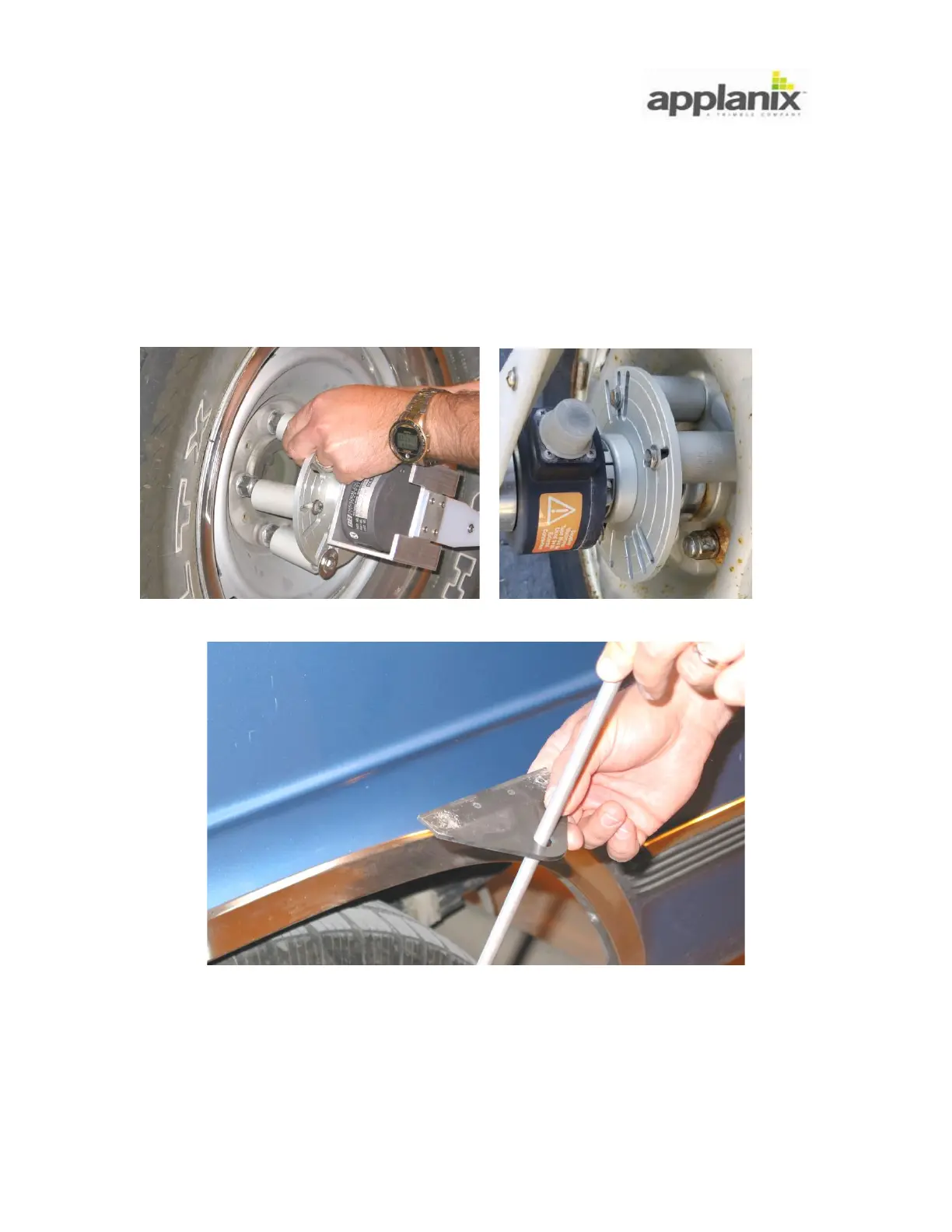

Figure 7: Slip Collets over Wheel Lug Nuts
Figure 8: Slip DMI Restraint Bracket over Restraint Rod
