Page 8
1.1.2

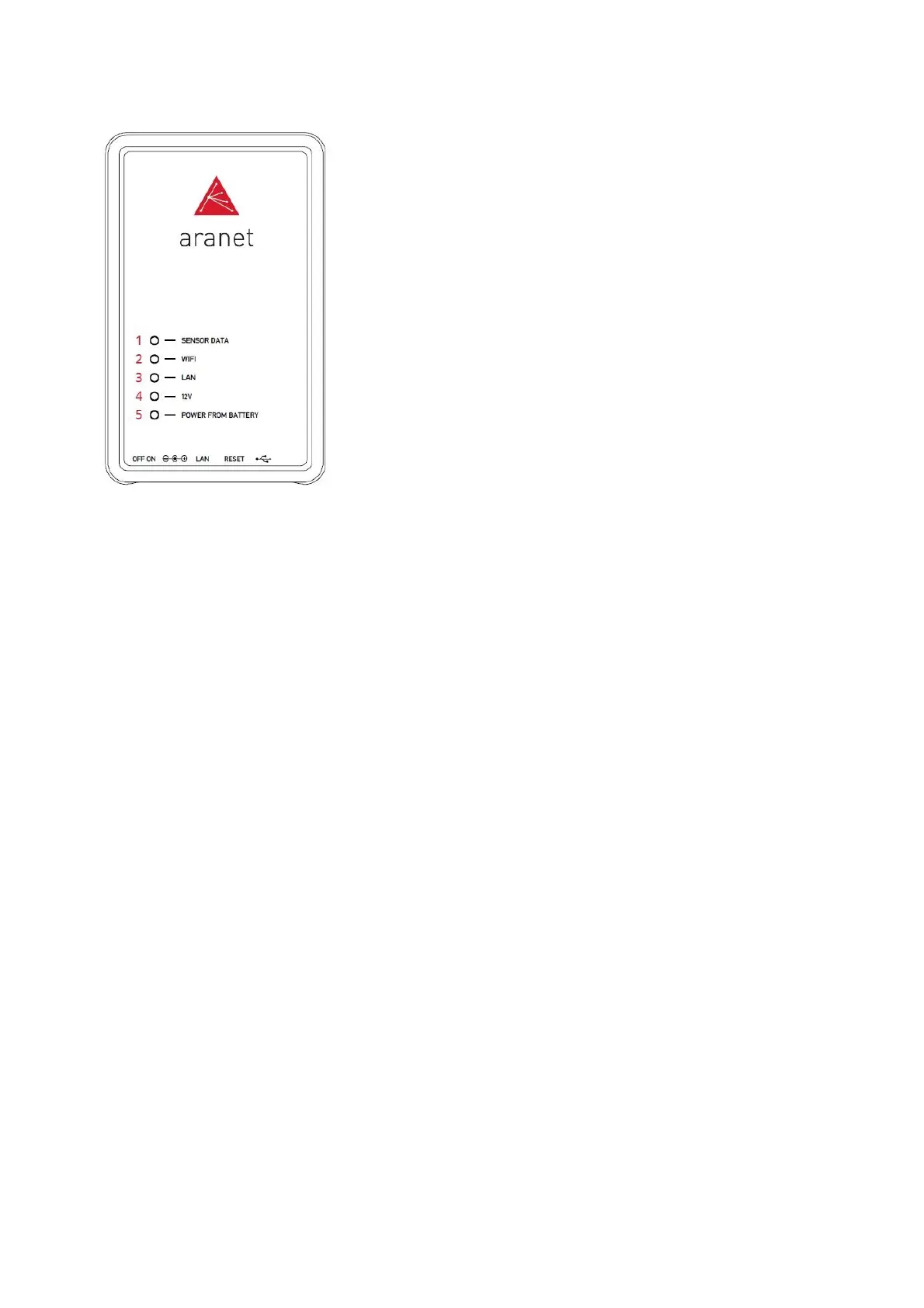

Aranet PRO indicators
(1) Sensor data indicator LED – flashes amber every time a data packet is received from a sensor.
(2) Wi-Fi connection indicator LED – amber light when Aranet PRO is connected to Wi-Fi or works in
Access Point mode
(3) LAN connection indicator LED – amber light when Aranet PRO is connected to LAN connection through
an Ethernet cable
(4) 12V power indicator LED – green light when Aranet PRO is connected to 12V power either through a
PoE connection or with the included AC power adapter
(5) Battery power indicator LED – red light when Aranet PRO is using built in backup battery power
