1.1.3

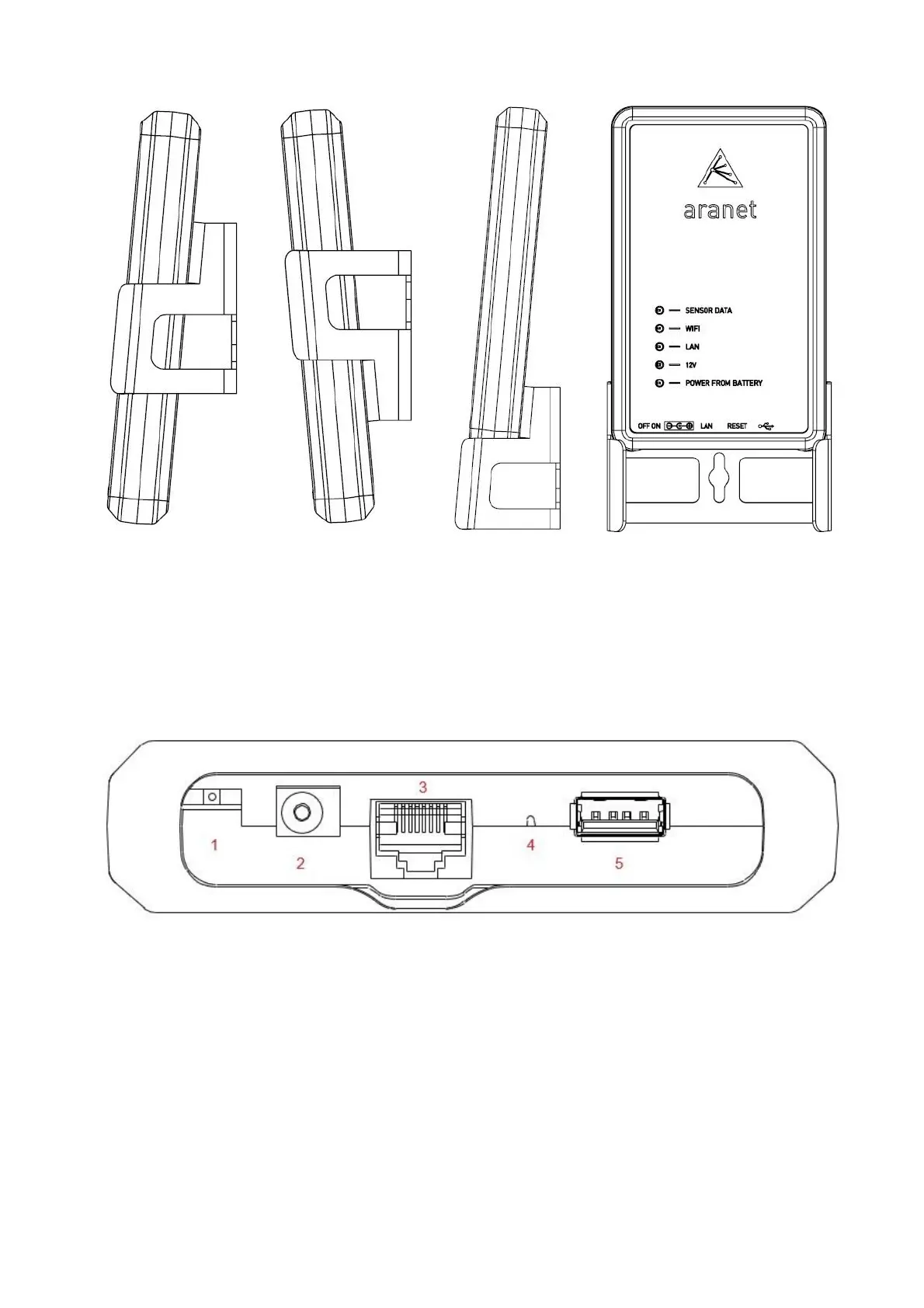

Aranet PRO mounting
(1) (2) (3)
(1) Base station mount configuration for positioning on vertical surface (e.g., wall).
(2) Base station mount configuration for positioning on vertical surface (e.g., wall).
(3) Base station mount configuration for placement on horizontal surface (e.g., table).
1.1.4
Aranet PRO ports
(1) On-Off switch – switch in the left position means Aranet PRO is turned off, switch in the right position
means Aranet PRO is turned ON
(2) AC Power port - for using the included AC power adapter to power Aranet PRO
(3) Ethernet port – for LAN connectivity as well as PoE connectivity
(4) Reset button, press, and hold for 5 seconds or more and then release the button to reset network
settings and password of “root” user account. The reset button is accessed through hole with some thin
object like pencil.
(5) USB port – for connecting USB modem to enable SMS notification functionality, and for connecting and
configuring Aranet MINI.
