8. Electrical connection
WARNING
Incorrect power supply
Danger to life – risk of injury
Only a qualified electrician should install the device.
Comply with national and international guidelines for setting up electrical equipment.
Power supply in accordance with EN50178, SELV, PELV, VDE0100-410/A1.
De-energize the system for installation and connect the device as follows:
A shielded sensor cable must be used.
8.1 Pin assignment (view from above)
3
1
2
4
5
6
7
8
7
2
1
6
5
4
3
8

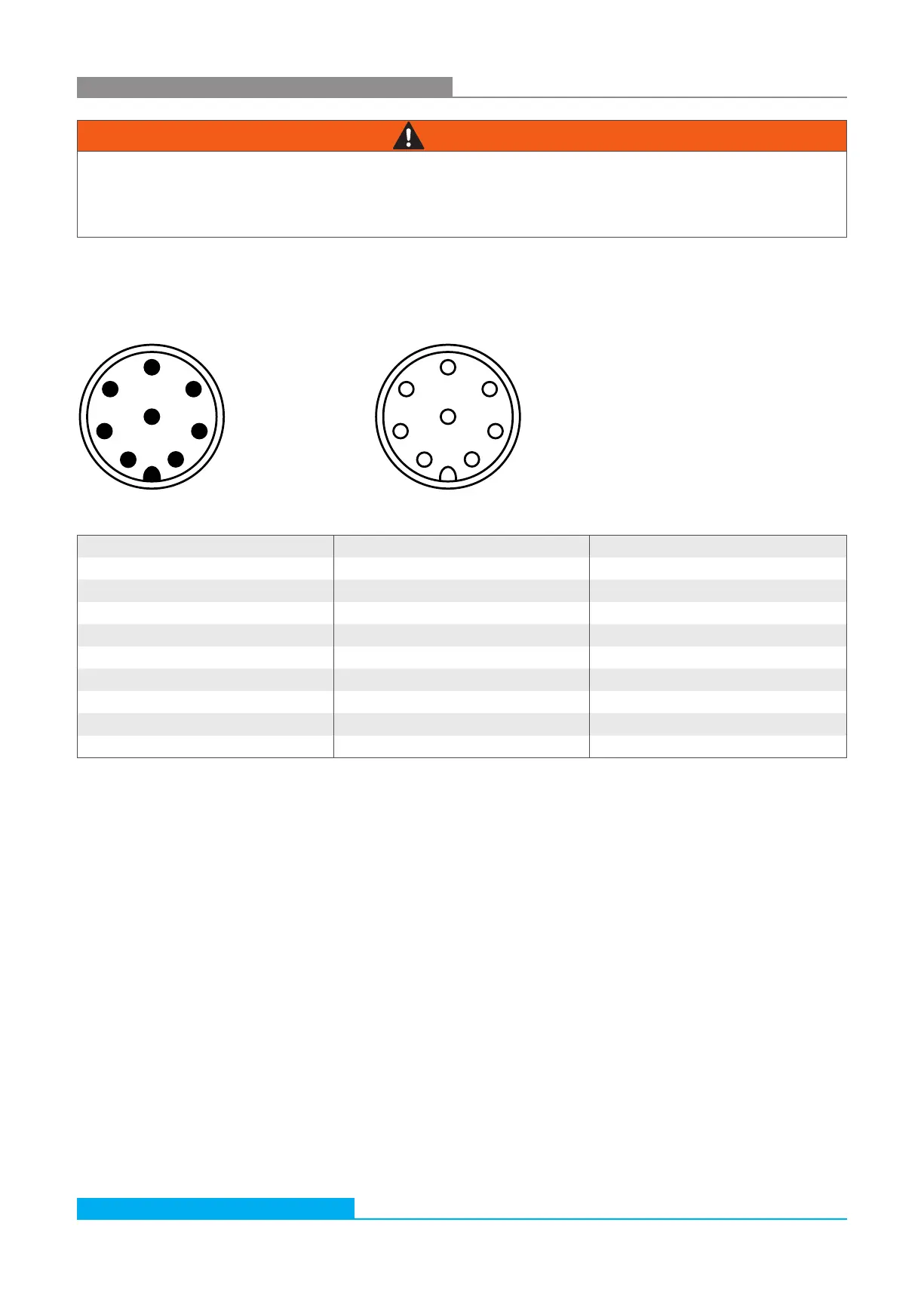

Fig. 10: Pin assignment of the sensor connector
Fig. 11: Pin assignment of the cable connector
Table 8: Pin assignment
The sensor cable must be shielded. To achieve IP67 degree of protection, only suitable connectors and cables must be used. The
tightening torque for the connector is 0.1 Nm.
Pin Function Color standard cable
1 Power supply L+ White
2 Power supply L- Brown
3 TxD, CAN low [OUT] Green
4 RxD, CAN high [IN] Yellow
5 Digital input (start/stop) Grey
6 Analog output 4...20mA Rose
7 Switch output (open collector/alarm) Blue
8 Signal ground Red
Shield - -
