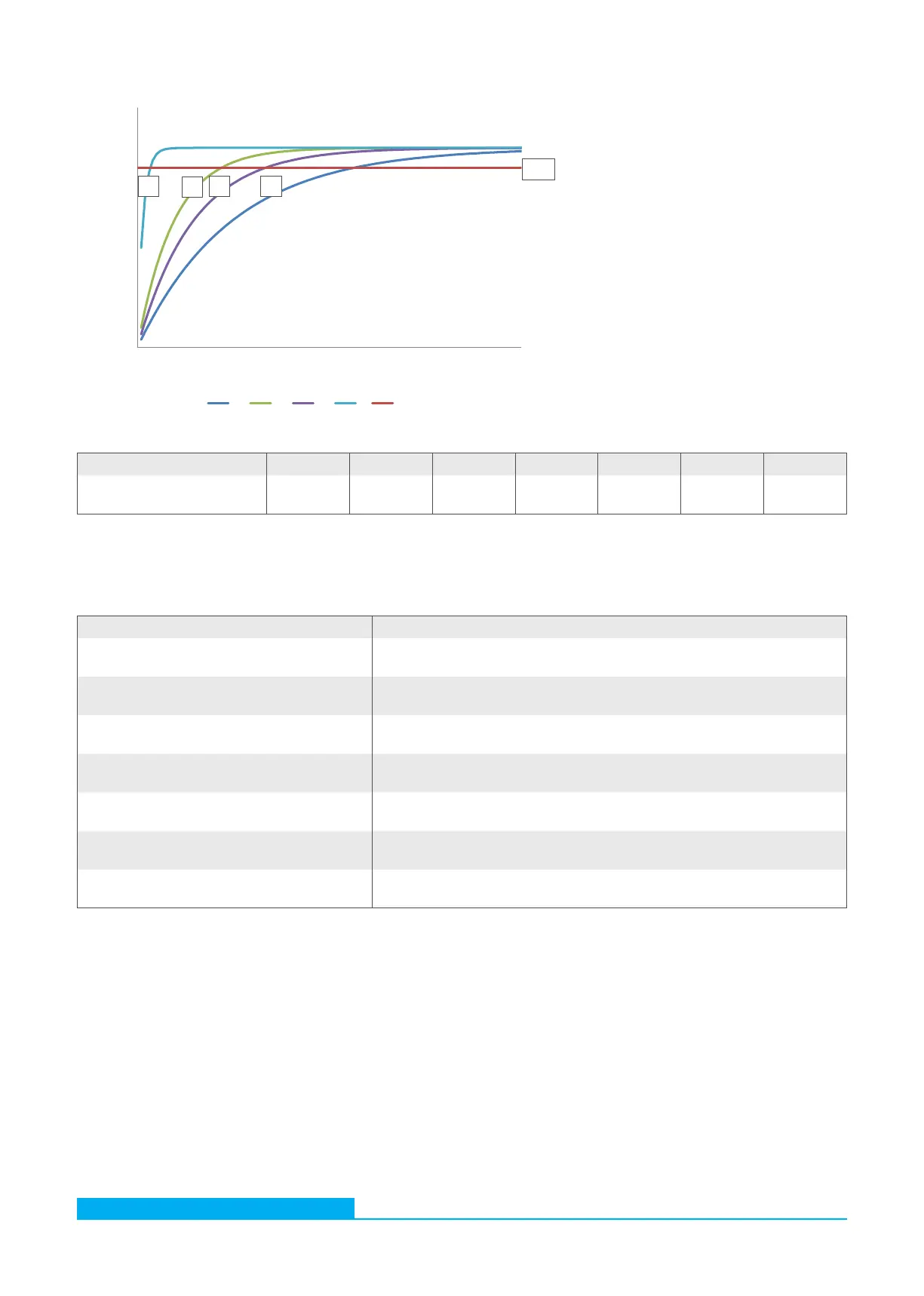

Fig 14: Step response for low-pass filter values 2, 10, 15 and 25
Low-pass filter value 2 5 10 15 25 50 100
Number of measurements
up to 90%
3 10 21 33 56 113 229
11.4 Configuration analog
The measurement results can be transmitted via the analog current output (4...20 mA). The following table provides an overview of
possible configurations. For the measurement of the current and the conversions see chapter 14 "Analog current output (4...20 mA)".
Menu selection Analog current output
4 µm
Static output of the ordinal number for 4 µm, depending on the set standard
ISO or SAE
6 µm
Static output of the ordinal number for 6 µm, depending on the set standard
ISO or SAE
14 µm
Static output of the ordinal number for 14 µm, depending on the set standard
ISO or SAE
21 µm
Static output of the ordinal number for 21 µm, depending on the set standard
ISO or SAE
SEQUENTIAL
(Standard)
Static output of the ordinal number for 4, 6, 14 and 21 µm, depending on the
set standard ISO or SAE
NAS 1638
Output independent from the set standard. ISO, SAE and GOST can be shown
on the display, NAS is however issued via the analog current output.
GOST 17216
Output independent from the set standard. ISO, SAE and NAS can be shown on
the display, GOST is however issued via the analog current output.
Table 13: Low-pass filter values to reach the 90% threshold.
Table 14: Configuration of the analog current output
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Konzentration / p/ml
Messung Nr.
25 10 15 2 90%
90%
2
10
15 25
Measurement No.
Concentration / p/ml No.
