General Maintenance
7. Adjust each headlight until you
achieve the correct aim by turning
the necessary adjustment screw
clockwise or counter-clockwise.

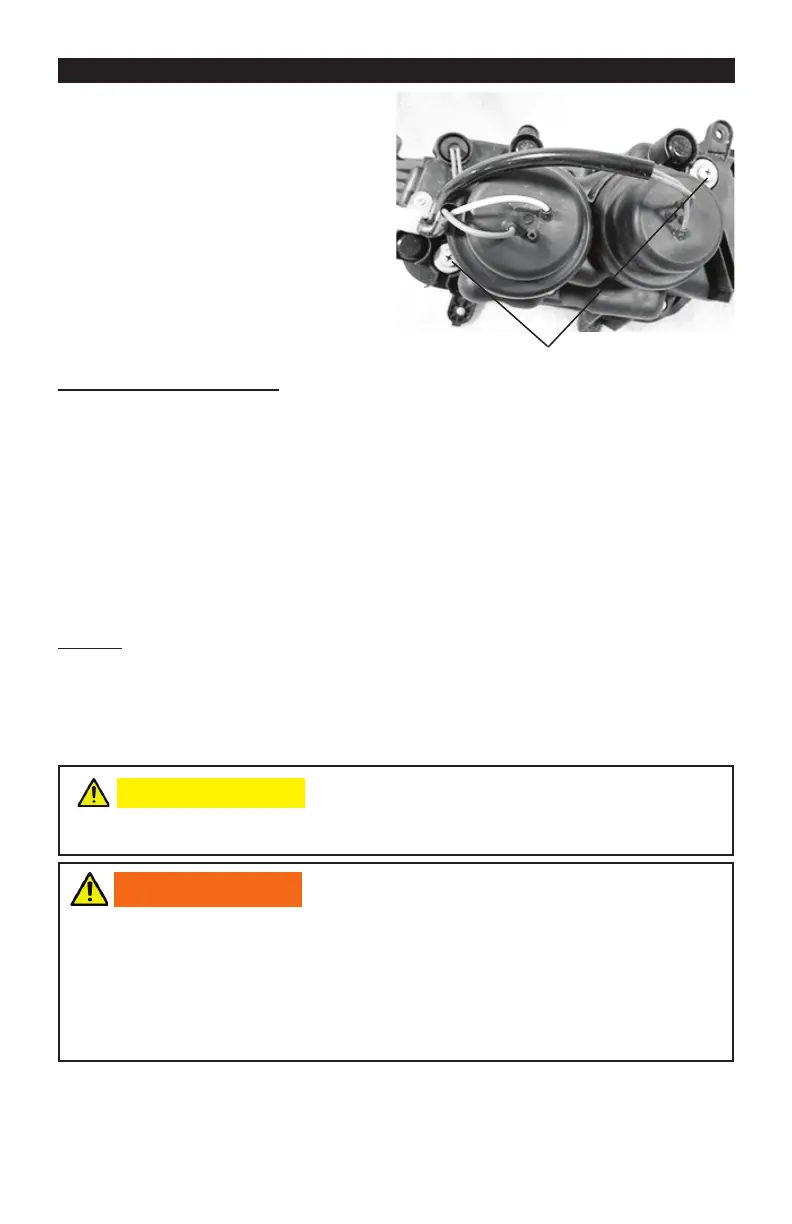

Adjustment Screws
Taillight / Brakelight
To replace the taillight / brakelight bulb, use the following procedure:
1. Ensure the key switch is in the “OFF” position.
2. Rotate the socket counter-clockwise to remove the assembly from the housing.
3. To remove the bulb from the socket, gently push in and rotate the bulb
counter-clockwise.
4. Install the new bulb by gently pushing in and rotate it clockwise.
5. Insert the socket into the housing and rotate it clockwise completely.
Always replace a failed fuse with a fuse of the same type and rating. If the new fuse
fails after a short period of use, consult an authorized ARGO dealer immediately.
CAUTION
WARNING
POTENTIAL HAZARD
Using an improper fuse.
WHAT CAN HAPPEN
An improper fuse can cause damage to the electrical system.
HOW TO AVOID THE HAZARD
Always use a fuse of the specied rating. Never use a material in place of the proper fuse.
Fuses
The ATV fuses are located in a power distribution module in front of the steering post
under the electrical access panel. If there is any type of electrical system failure,
always check the fuses rst.
NOTE: To remove a fuse, compress the locking tabs on either side of the fuse
cover and lift it out.
