General Maintenance

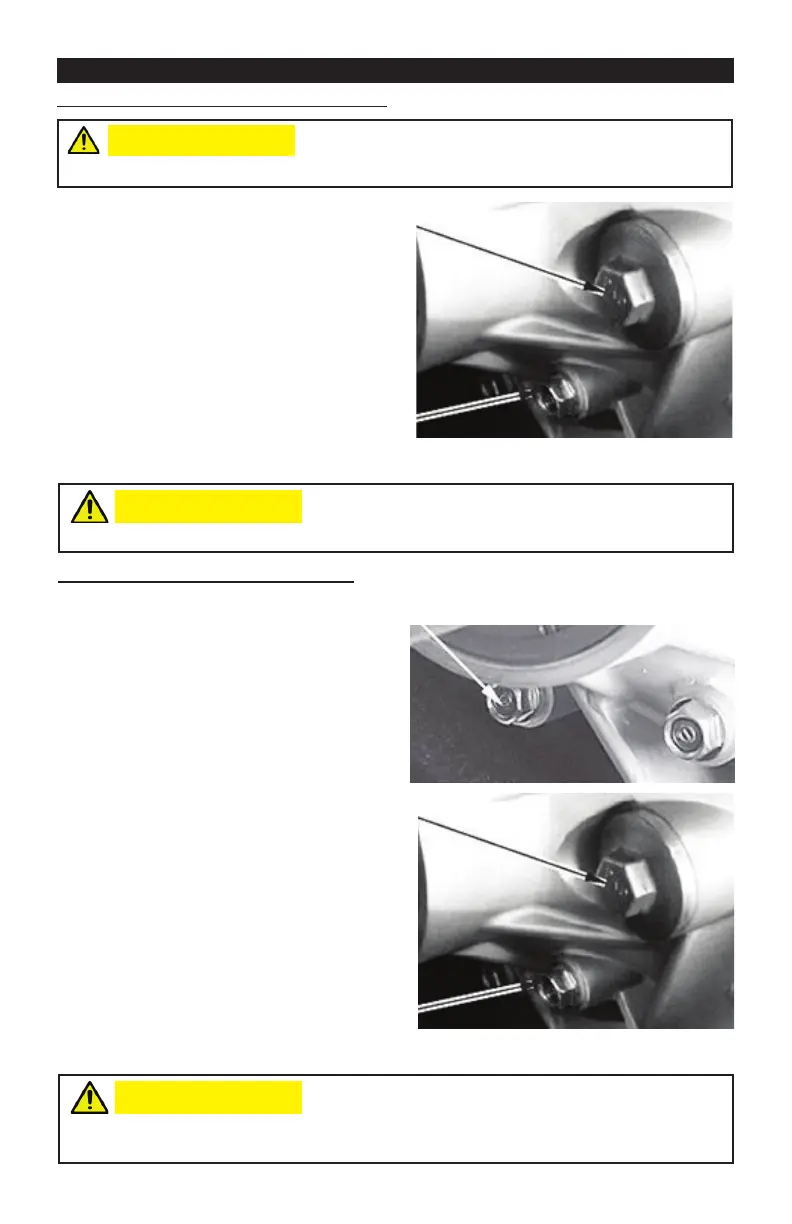

Rear Gear Case Oil Inspection
Any lubricant used in place of the recommended lubricant may cause serious damage.
CAUTION
NOTE: The ATV should be parked
on level ground, with the engine key
switch in the “OFF” position.
1. Remove the oil level check bolt /
washer (2).
2. Ensure oil level reaches the oil
level check hole.
3. Install the oil level check bolt /
washer. Tighten to 15 ft lb (20 N-m).
(1)
(2)
1. Oil Filler Cap
2. Oil Level Check Bolt/Washer
Ensure no foreign material enters the gear case.
CAUTION
Rear Gear Case Oil Change
NOTE: The ATV should be parked
on level ground, with the engine key
switch in the “OFF” position to assure
complete and rapid draining.
1. Remove the skid plate.
2. Place a suitable drain pan under the
oil drain plug.
Oil Drain Plug
3. Remove the oil ller cap (1), then
remove the oil level check bolt and
washer (2).
NOTE: Inspect oil ller cap o-ring and
oil level check bolt/washer for any
damage. Replace as necessary.
(1)
(2)
1. Oil Filler Cap
2. Oil Level Check Bolt/Washer
Inspect the oil for any signs of metal lings or water. If either are present, take your
ATV to an authorized ARGO dealer for service.
CAUTION
