35
Control Functions
Brakes
Your ATV is equipped with front and rear hydraulic brakes that can be activated with
hand and foot controls.
LEFT HAND BRAKE LEVER - Activates rear brakes
RIGHT HAND BRAKE LEVER - Activates front brake only
FOOT BRAKE PEDAL - Activates front and rear brakes

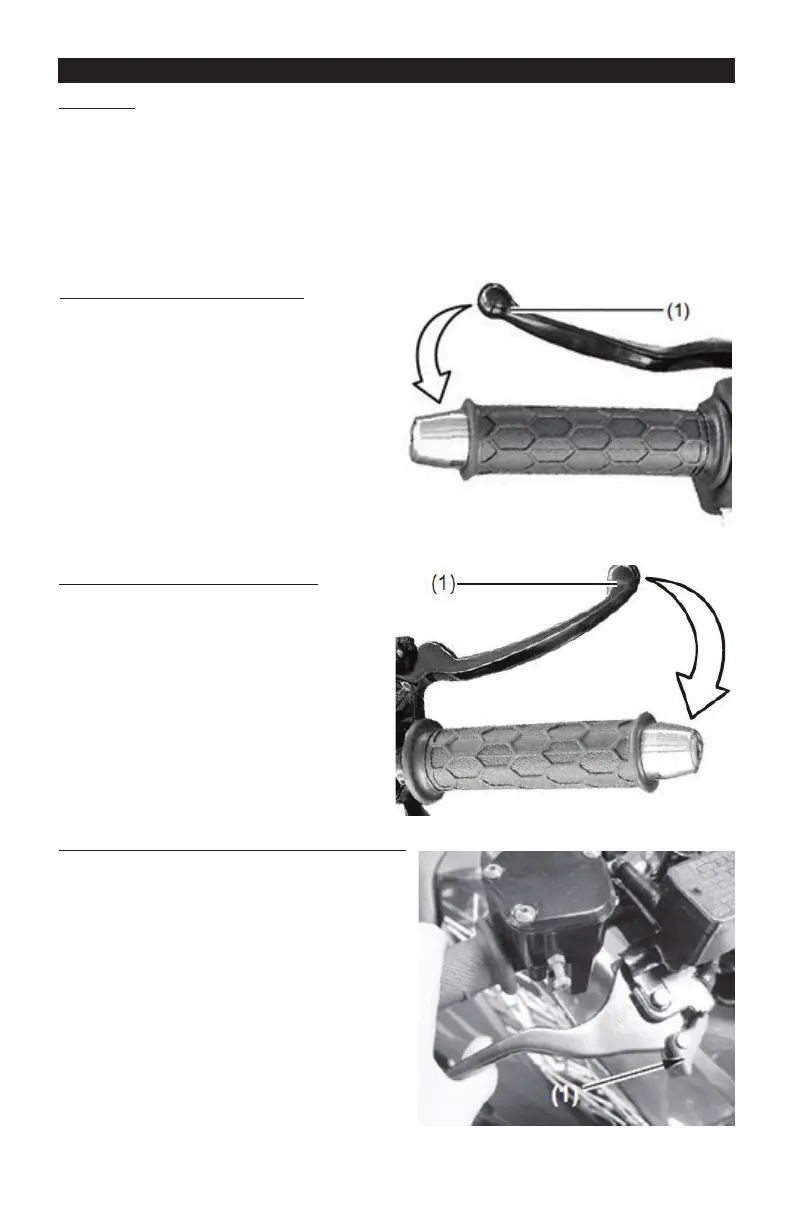

Left Hand Brake Lever
The left hand brake mounted on the
left handlebar activates the rear brakes
on your ATV. To apply the rear brakes,
squeeze the lever towards the handlebar
grip.
1. Brake lever
Parking Brake (Brake Lever Lock)
To engage or release the parking brake
(brake lever lock), use the following
procedure:
1. Squeeze the hand brake lever two or
three times to achieve maximum
brake pressure; then release.
2. Depress and hold the brake lever
lock.
3. While holding in the brake lever lock,
squeeze the brake lever.
1. Parking Brake (Brake Lever Lock)
Right Hand Brake Lever
The right hand brake mounted on the
right handlebar activates the front brakes
on your ATV. To apply the front brakes,
squeeze the lever towards the handlebar
grip.
1. Brake lever
