39
Control Functions

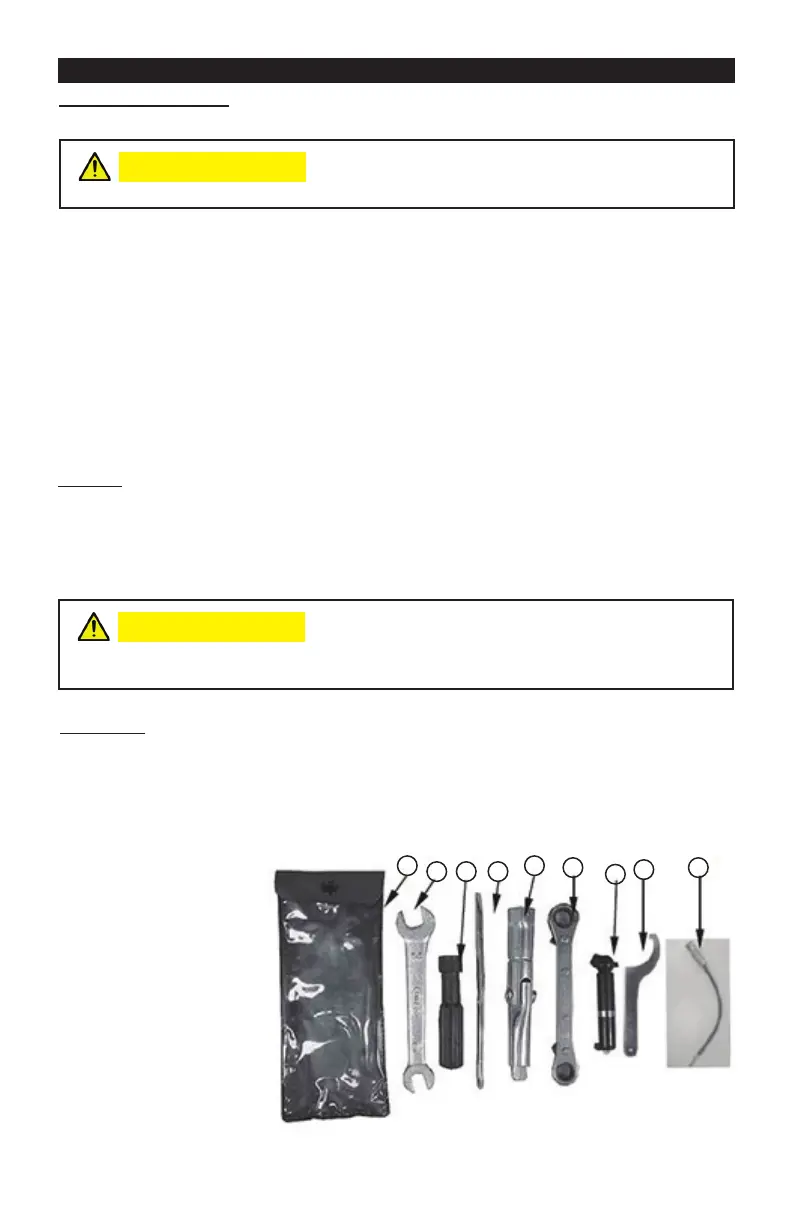

Tool Kit
A tool kit provided with your ATV is sucient to perform routine maintenance and
simple repairs. Any extensive work requiring additional tools should be performed
by your authorized ARGO dealer.
It is recommended to put the tool kit in the vinyl bag and always carry them in the
storage compartment.
1. Tool Bag
2. 10 / 14 mm Wrench
3. Screwdriver Handle
4. Standard/Phillips screwdriver
5. Spark Plug Wrench (A)
6. Spark Plug Wrench (B)
7. Air Pressure Gauge
8. Rear Shock Adjuster
9. Spark Plug Wrench (C)
8
9
1
2 3
5
4
6
7
Fuses
The ATV fuses are located in a power distribution module in front of the steering post
under the electrical access panel. If there is any type of electrical system failure,
always check the fuses rst.
NOTE: To remove a fuse, compress the locking tabs on either side of the fuse
cover and lift it out.
Always replace a failed fuse with a fuse of the same type and rating. If the new fuse
fails after a short period of use, consult an authorized ARGO dealer immediately.
CAUTION
Accessory Plug
The accessory plug is located inside the center storage area.
Always use electrical accessories on your ATV that draw less that 120 W.
CAUTION
To use the accessory plug:
1. Turn the ignition switch to the “ON” position, then start the engine.
2. Turn the headlights “OFF”.
3. Open the accessory plug cap and then insert the accessory plug into the
socket.
Be sure the engine is running and the headlights are turned o before using the
accessory socket, otherwise you may drain the battery.
The accessory plug rated capacity is DC 12V, 120 W (10A) or less. If you exceed
this capacity, you may blow a fuse.
