Control Functions
Right Handlebar Switches
2WD / 4WD Switch

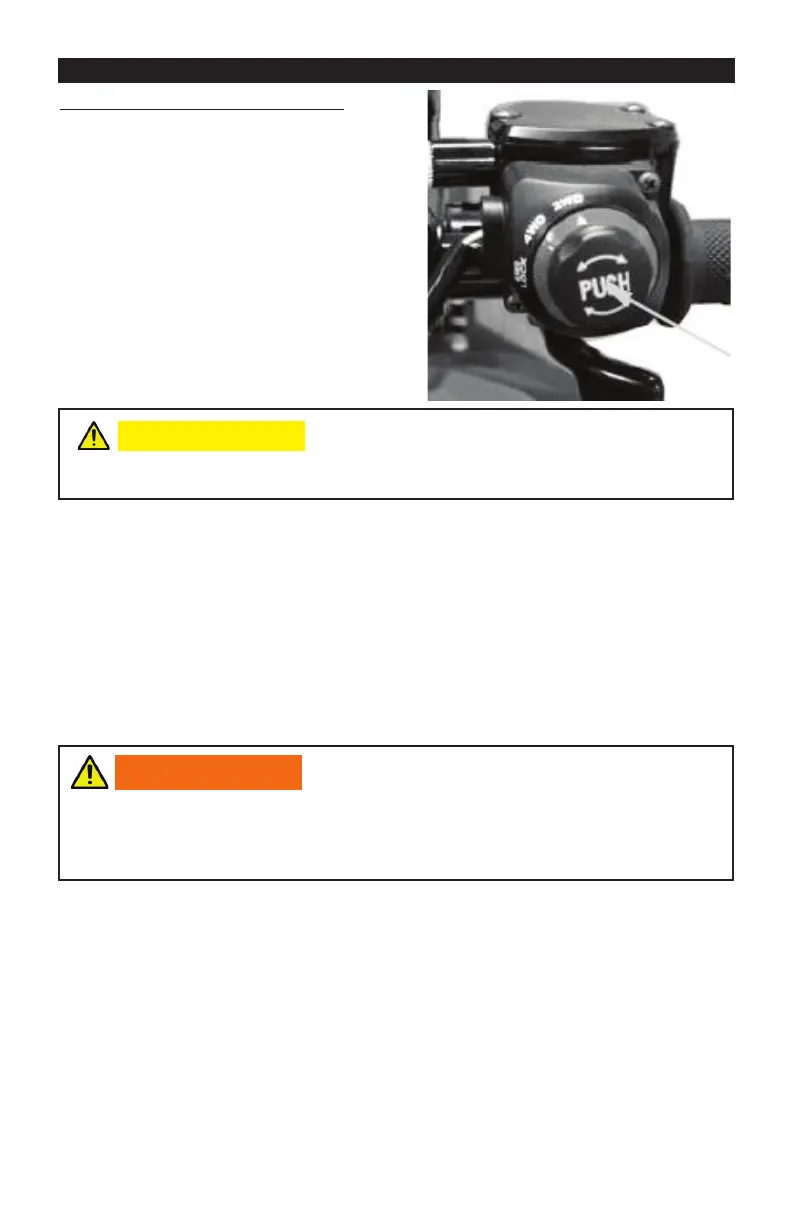

The 2WD/4WD selector switch allows you
to operate your ATV in either two-wheel
drive (rear wheels powered) or four-wheel
drive (open front dierential).
The 2WD/4WD/LOCK select switch is
located above the throttle lever. To select
the drive mode, push and turn the switch to
the desired position. Present drive mode is
displayed on the multi-functional gauge.
Never operate the 2WD/4WD selector switch while your ATV is in motion as you may
damage the dierential.
CAUTION
Differential Lock Switch
The dierential lock switch is located above the throttle lever.
The front axle is equipped with a lockable dierential that allows the operator to
choose between an open dierential or a closed dierential in low traction situations.
In 2WD mode, the display has no indicator on the display gauge.
In 4WD mode, the display should indicate 4WD; then activate the lock switch, 4WD
and LOCK should appear on the display gauge.
WARNING
Never exceed 10 mph (16 kph) when dierential is locked. Loss of control at high
speeds may result in severe injury or death when dierential is locked. Due to all
four wheels powered when in “LOCK” mode, it will be more dicult to turn the
handlebars.
