General Maintenance
Rear Foot Brake
The rear foot brake must be maintained periodically to remain fully functional.
Be sure to inspect the rear
brake system before every
use. Maintain the brakes
according to the Maintenance
Schedule.
WARNING

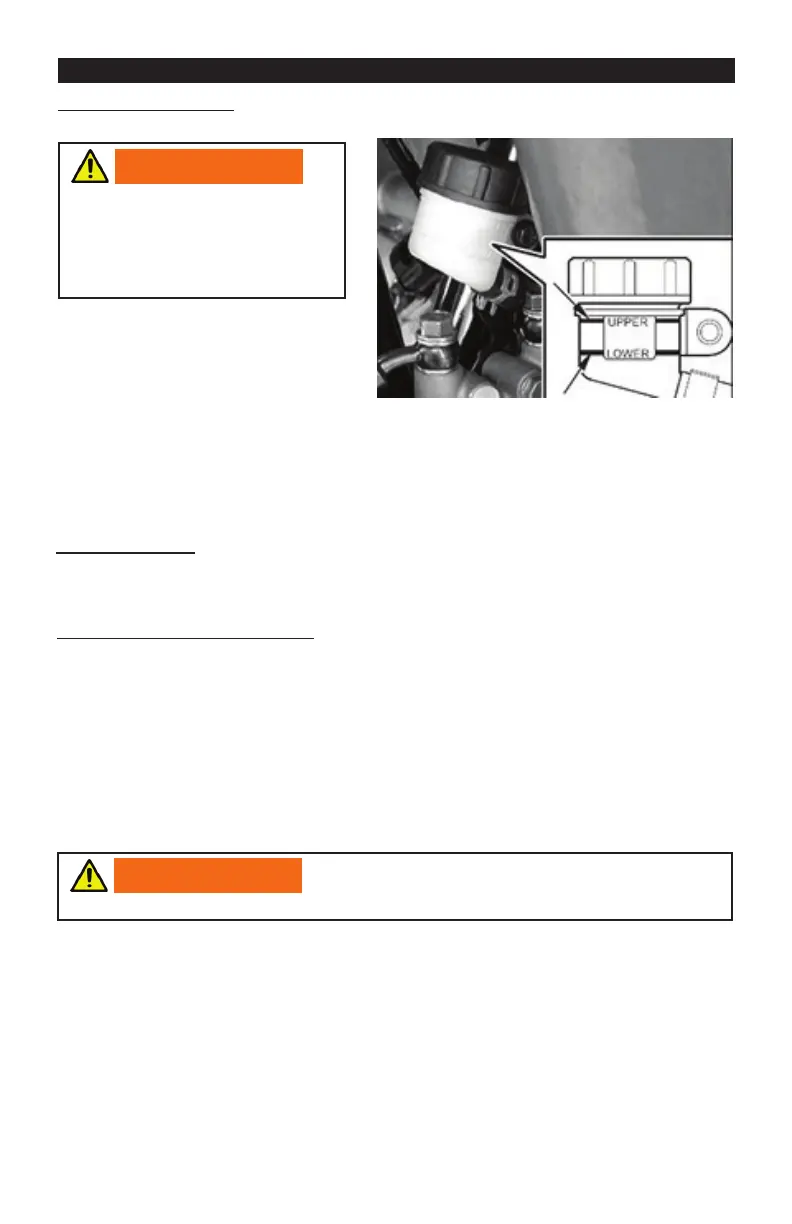

NOTE: The brake uid reservoir
is located on the right rear frame.
Brake Hoses
Carefully inspect the hydraulic hoses for cracks or other visible damage. If damage
is found, take the ATV to an authorized ARGO dealer for service.
Front / Rear Brake Pads
The clearance between the brake pads and brake discs is adjusted automatically as
the brake pads wear. The only required maintenance is to replace brake pads when
they become worn. To check the thickness of the brake pads, use the following
procedure:
1. Park the ATV on level ground and engage the brake lever lock.
2. Loosen the wheel nuts on the front / rear wheel to be removed. Do not remove
the wheel nuts from the wheel studs.
3. Using a suitable jack, elevate the ATV.
Support the ATV on a support stand.
Ensure the ATV is safely supported on the stand to avoid injury.
WARNING
4. Remove the wheel nuts.
5. Remove the wheel.
1. Press down on the rear brake pedal several times to check for rmness.
2. If the pedal response is not rm, the brake system must be bled.
NOTE: If the brake system requires bleeding, take your ATV to an authorized
ARGO dealer for service.
