36
Control Functions

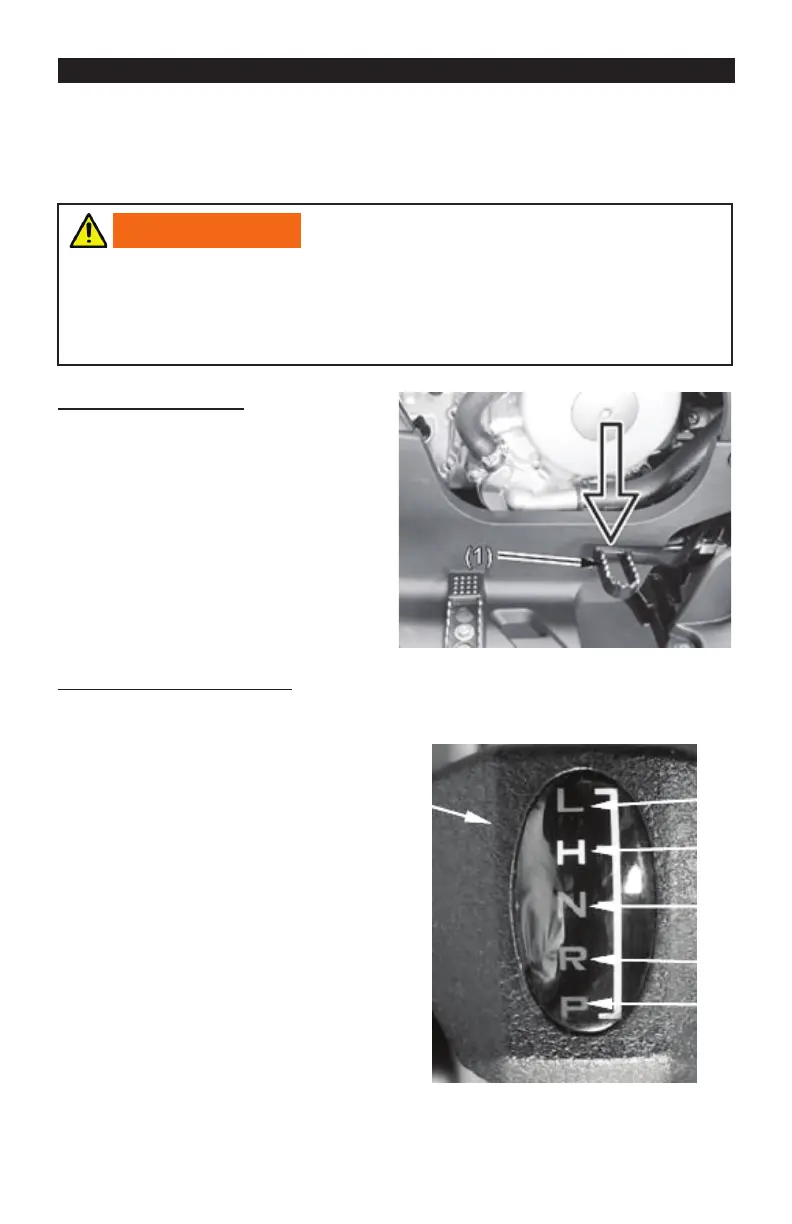

Foot Brake Pedal
Depressing the foot brake pedal with
your right foot will apply the front and rear
wheel brakes.
1. Brake Pedal
NOTE: The brake lever lock will click as it engages and the brake lever will not
return to its released position.
4. Release the parking brake’s lever lock by squeezing the brake lever. Once the
lock is disengaged, the lever will return to its released position.
WARNING
Ensure the parking brake (lever lock) has been disengaged before operating your ATV. An
accident can result if the parking brake is left engaged while the ATV is being operated.
Never rely on the parking brake as the sole means of securing the ATV when parking on a
hill. Always block the downhill side of the ATV’s wheels or park the ATV perpendicular to the
hillside.
Transmission Ranges
This ATV is equipped with an automatic, dual-range transmission with reverse
capability. To shift your ATV into the dierent drive ranges, follow the below steps.
To properly change transmission range:
1. Apply brake.
2. Move shift lever to the desired range.
3. Release brake.
NOTE: The HIGH range is for normal
riding conditions with light loads. The
LOW range is for carrying heavy loads,
slow speeds or trailer towing. LOW
range position provides slower speed
and greater torque to the wheels.
1
2
3
4
5
6
1. Drive Select Lever
2. Low Range
3. High Range
4. Neutral
5. Reverse
6. Park
