34

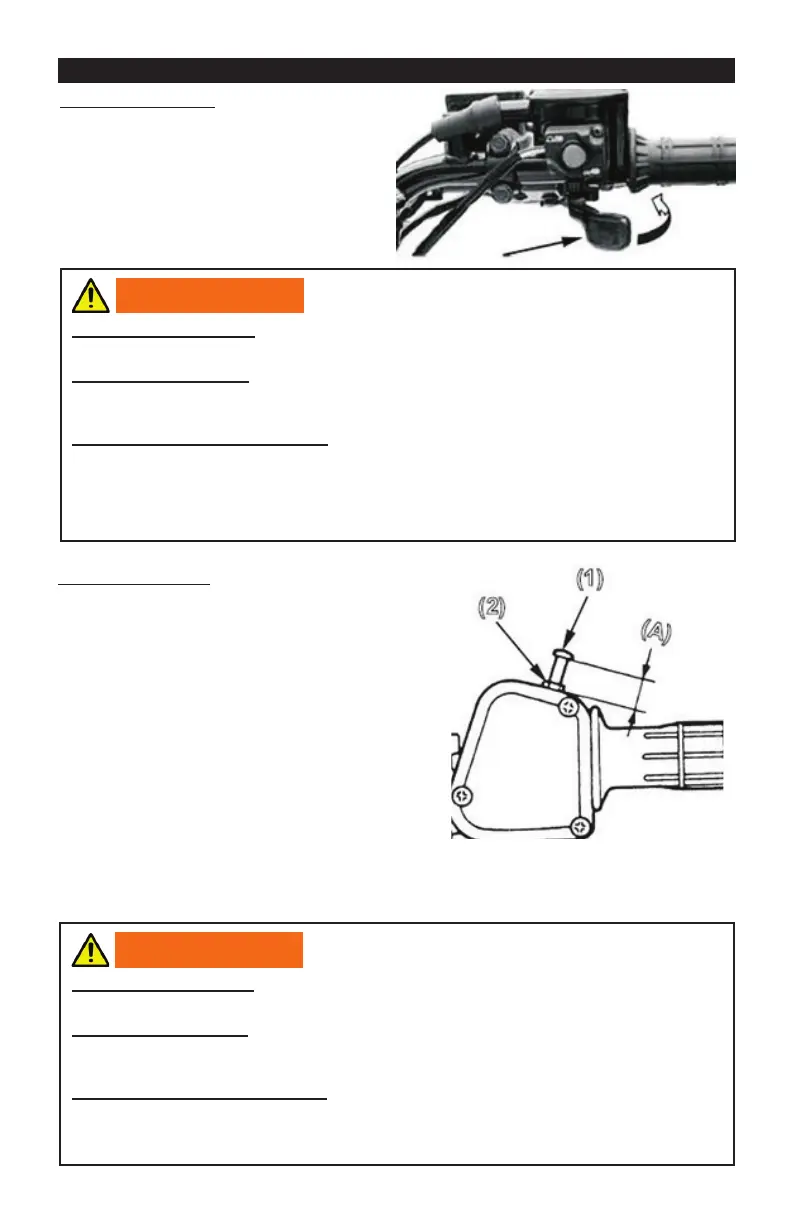

Control Functions
Throttle Lever
The position of the throttle lever
controls engine RPM. Pushing it forward
increases engine RPM, allowing the lever
to return to its original position decreases
engine RPM.
WARNING
POTENTIAL HAZARD
Throttle malfunction.
WHAT CAN HAPPEN
The throttle could be hard to operate, making it dicult to speed up or slow down when you
need to. This could cause an accident.
HOW TO AVOID THE HAZARD
Check the operation before you start the engine. If it does not work smoothly, check for the
cause.
Correct the condition before riding the ATV.
Consult an authorized ARGO dealer if you can not locate or solve the issue yourself.
Speed Limiter
The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed
to the maximum. Turning “IN” the adjuster
limits the top speed of the ATV. Turning “OUT”
increases the top speed of the ATV.
WARNING
POTENTIAL HAZARD
Improper adjustment of the speed limiter and throttle.
WHAT CAN HAPPEN
The throttle cable could be damaged. Improper throttle operation could result causing you
to lose control of the ATV and be injured or cause an accident.
HOW TO AVOID THE HAZARD
Do not turn the speed adjuster out more than 0.52 in (13 mm). Always make sure the
throttle lever free play is adjusted to 0.12 - 0.2 in (3 -5 mm).
NOTE: Your ATV is equipped with an ignition limiter that retards timing when
approaching maximum engine RPM. When this RPM limiter is activated, it can
be misinterpreted as a high-speed ignition misre.
1. Adjuster
2. Locknut
A. 0.52 in (13 mm maximum)
