Arjo Citadel - Introduction; Product Overview

11
Citadel Bed Frame System
INTRODUCTION
These instructions contain information for the installation, use and maintenance of the
Arjo Citadel™ Bed Frame System. These beds have multiple functions to provide the
optimum nursing position for both patient and caregiver.
Product Overview
A. Head Board
B. Backrest Section
C. Patient Controls
D. Seat Section
E. Thigh Section
F. Foot Board
G. Extension Locking Handle
H. Accessory Power Outlet
I. Anti-Entrapment Sensor
J. Foot End Brake Pedal
K. Extension Catch Bar
L. CPR Release Handle
M. Weighing / Movement Detection
System Controls
N. Attendant Control Panel (ACP)
O. Side Rail Release Lever
P. Drainage Bag Rail
Q. Caster
R. Roller Buffer
S. Lifting Pole Socket
T. Foot End Side Rail
U. Caregiver Controls
V. Head End Side Rail
*not pictured, optional foot pedal for
adjustment of bed height.

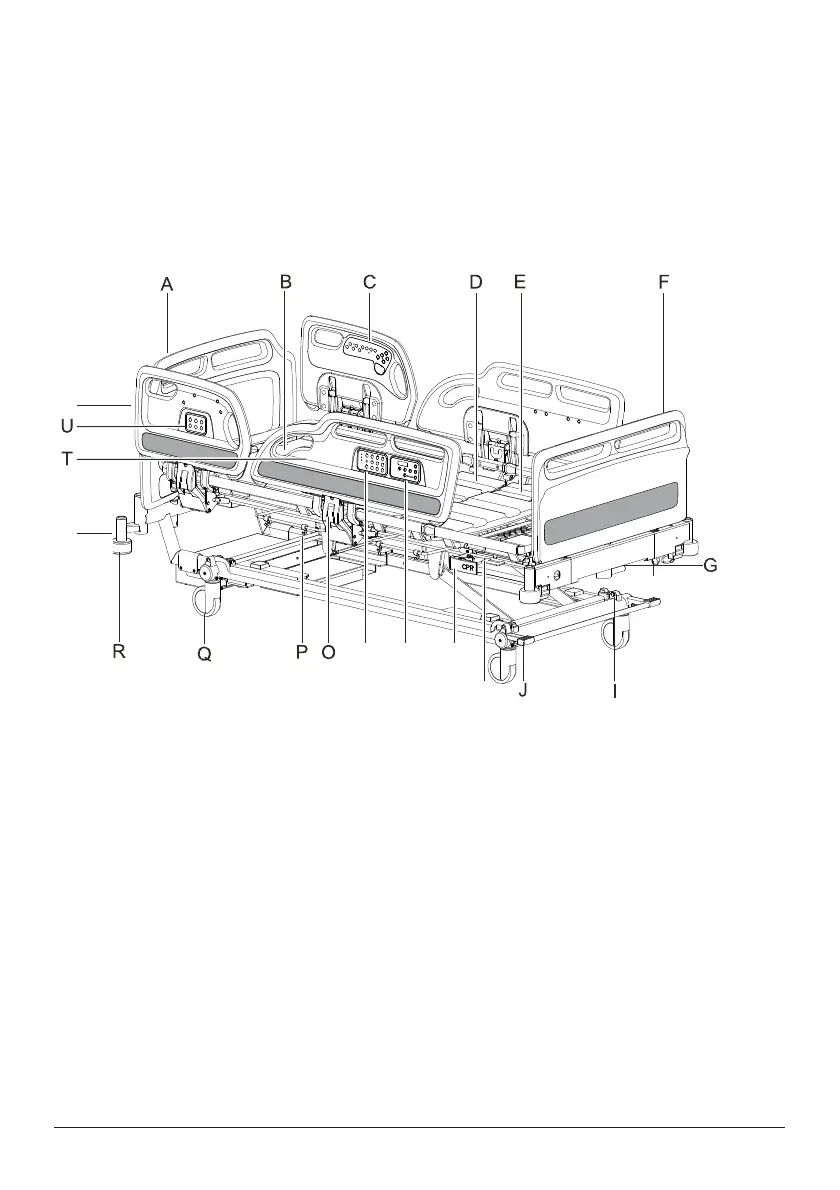

)LJXUH3URGXFWRYHUYLHZ
K
H
LMN
S
V
