Arjo Citadel - Safeset (Optional Feature)

46
Citadel Bed Frame System
6DIH6HW2SWLRQDO)HDWXUH
SafeSet visual status indicators intendedIRUSDWLHQWVDWULVNIRUIDOOV
3DWLHQWVVKRXOGEHDVVHVVHGIRUIDOOULVNE\DFOLQLFDOO\TXDOL¿HGSHUVRQ
ZLWKIDFLOLW\SURWRFROVLQPLQG
SafeSet visual status indicators provide a quick visual indication of optimum bed
VHWWLQJVIRUSDWLHQWVLGHQWL¿HGDVEHLQJDWULVNRIIDOOV
SafeSet visual status indicators show four safety-critical bed parameters:
• Brake setting
• Side rail position
• Mattress platform height
• Movement detection status
Two identical SafeSet indicator panels are located just below the foot board.
Indicator lights (1) above each symbol light red to show a potentially unsafe condition,
or green to indicate a safe condition.

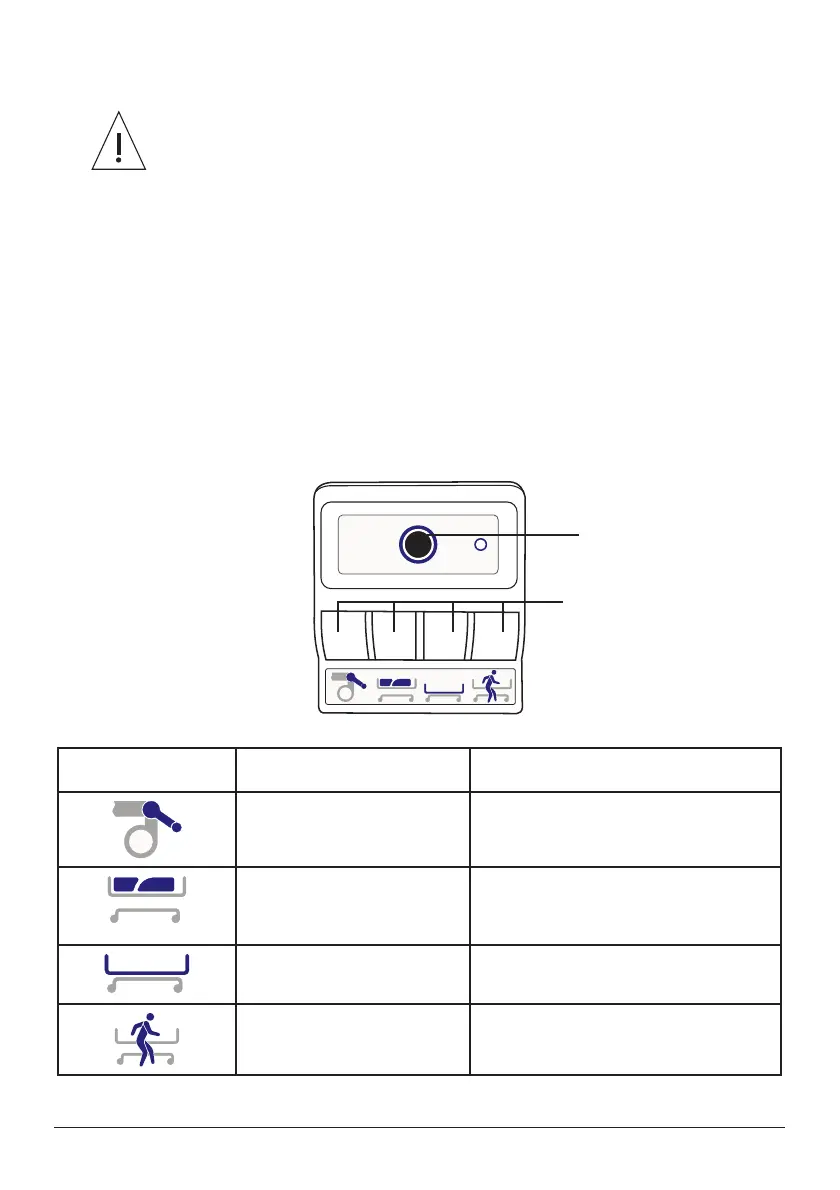

)LJXUHSafeSet indicator panel
Symbol Indicator light green
("safe" condition)
Indicator light red
("unsafe" condition)
Brakes on Brakes off
All side rails raised* If either of the head end panels are
lowered.
If both foot end panels are lowered.
Mattress platform at minimum
height (or within 25mm of
minimum height)
Mattress platform not at minimum height
VariZone patient movement
detection set
VariZone patient movement detection
not set
* To comply with FDA guidelines, the system will still show a "safe" condition if one (but not both) of the foot end side
rails are down.
