Arjo Citadel - Brakes and Steering


Citadel Bed Frame System
Foot Switch for Adjustment of Bed Height (Optional Feature)
Bed height can be adjusted from bed control panels and from the foot switch located
near the foot end of the bed.
)LJXUH%HG+HLJKW)RRW6ZLWFK
Lift cover of switch with foot and press left side to raise the bed height. Press right
side of switch to lower bed height.
Brakes and Steering
2SHUDWHWKHEUDNHSHGDOVZLWK\RXUIHHWZKLOHZHDULQJVXLWDEOHVKRHV
'RQRWRSHUDWHWKHSHGDOVZLWK\RXUKDQGV
7KHVWHHULQJFDVWHUPD\EHDWHLWKHUHQGRIWKHEHGDVVSHFL¿HGE\
WKHFXVWRPHU

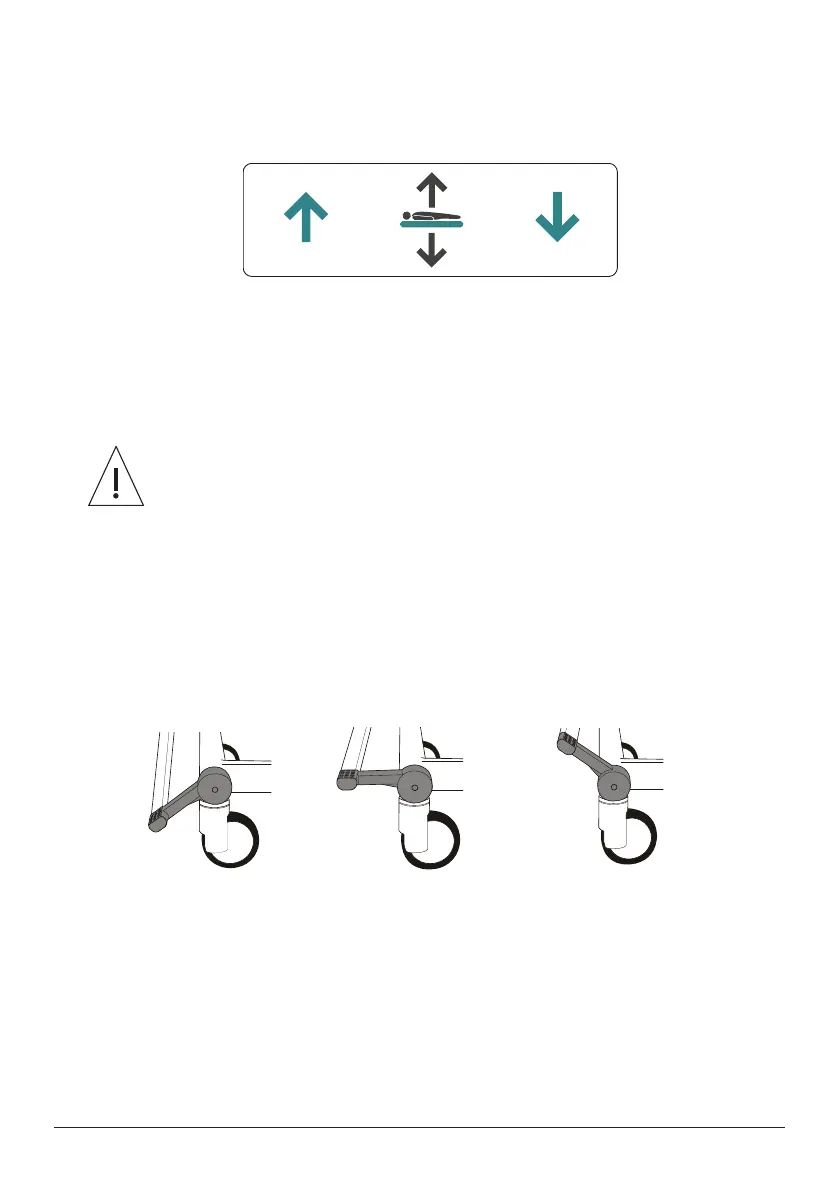

The pedals have three positions as shown below:
• BRAKE: brakes are applied on all four casters.
• FREE: all four casters are free to rotate and swivel.
• STEER: all four casters can rotate, but the steering caster (see below) is
locked so that it cannot swivel. This helps to keep the bed on a straight line.
BRAKE FREE STEER
)LJXUH%UDNHVDQG6WHHULQJ
Using the Steering Caster
Position the bed so that all the casters line up in the direction of travel. Raise the
pedals to lock the steering caster and move the bed by pushing it from the opposite
HQGRIWKHVWHHULQJFDVWHU7KHVWHHULQJFDVWHULVLGHQWL¿HGE\D\HOORZFROODUDWWKHWRS
of the caster stem.
