Arris NC4000 - Page 41

TM 87-10923 Rev E
Configuring NC4000 Nodes
3-9
Table 3.3 Table 3FS4x21 Threshold Setup
FS4x21 Threshold (AR4x03G
only)
DIP 1
DIP 2
FS4121 Threshold (AR4x14 &
AR4x24 only)
DIP 1
DIP 2
–2 dBm
Off
Off
–6 dBm
Off
Off
–4 dBm
Off
On
–9 dBm
Off
On
– 6 dBm (factory setting)
On
Off
– 12 dBm (factory setting)
On
Off
–7 dBm
On
On
–13 dBm
On
On

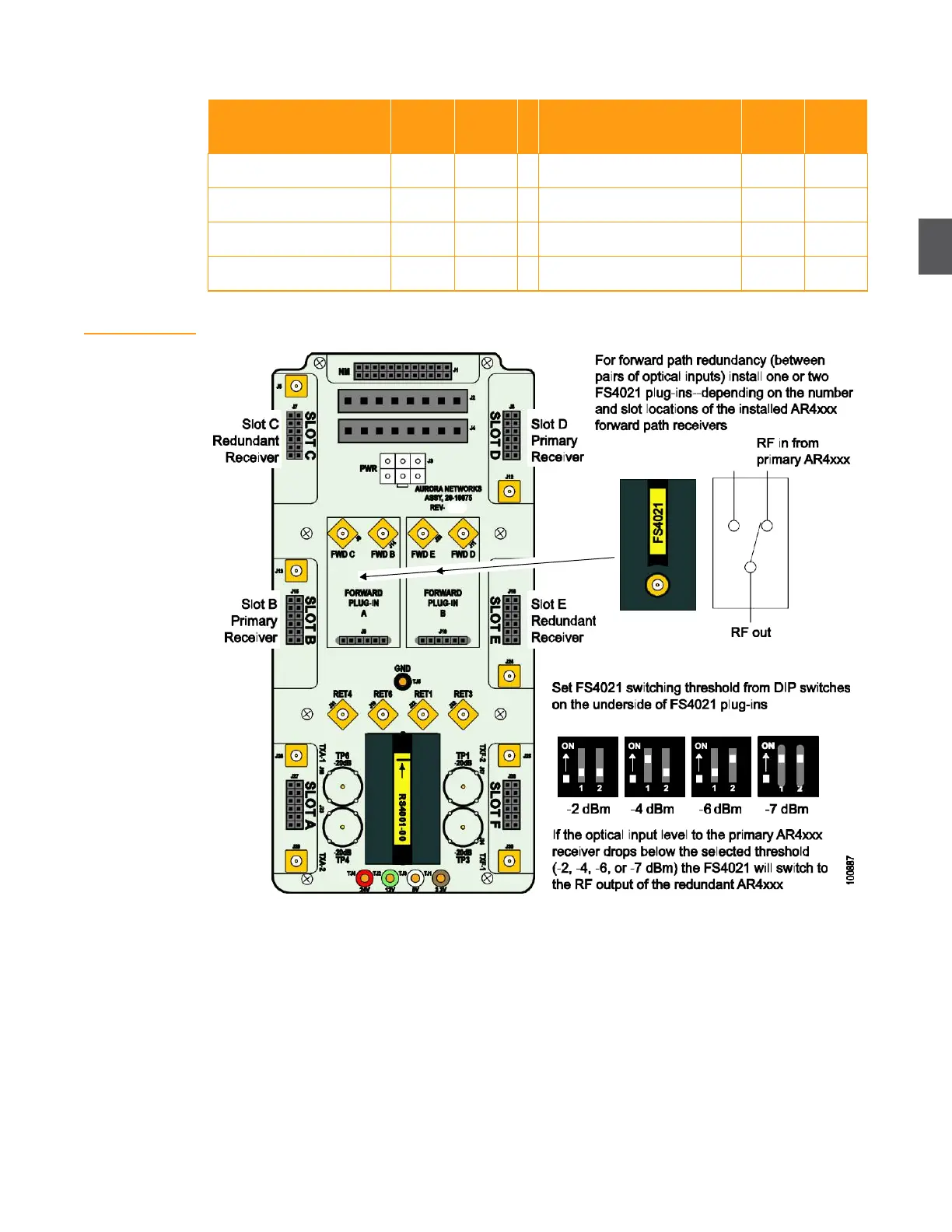

Figure 3.9
Forward Path RF
Switching — FS4x21
Installation
3
