Installation of CMS/OTS/EMS software requires a password that is different from your ARRIS
Flexera account password. Please email aurorasupport@arris.com for the respective (CMS, OTS, or
EMS) password, preferably in advance of downloading.
Prior to using Opti-Trace CMS, OTS, or EMS, please thoroughly read the respective User Guide.
If you have any questions regarding the download process for ARRIS software, please contact ARRIS
Technical Support at: http://www.arris.com/Support, scroll down the page, and click on the
Ask.ARRIS.com button.
5.2
NC4000 Alarms and Reported Parameters

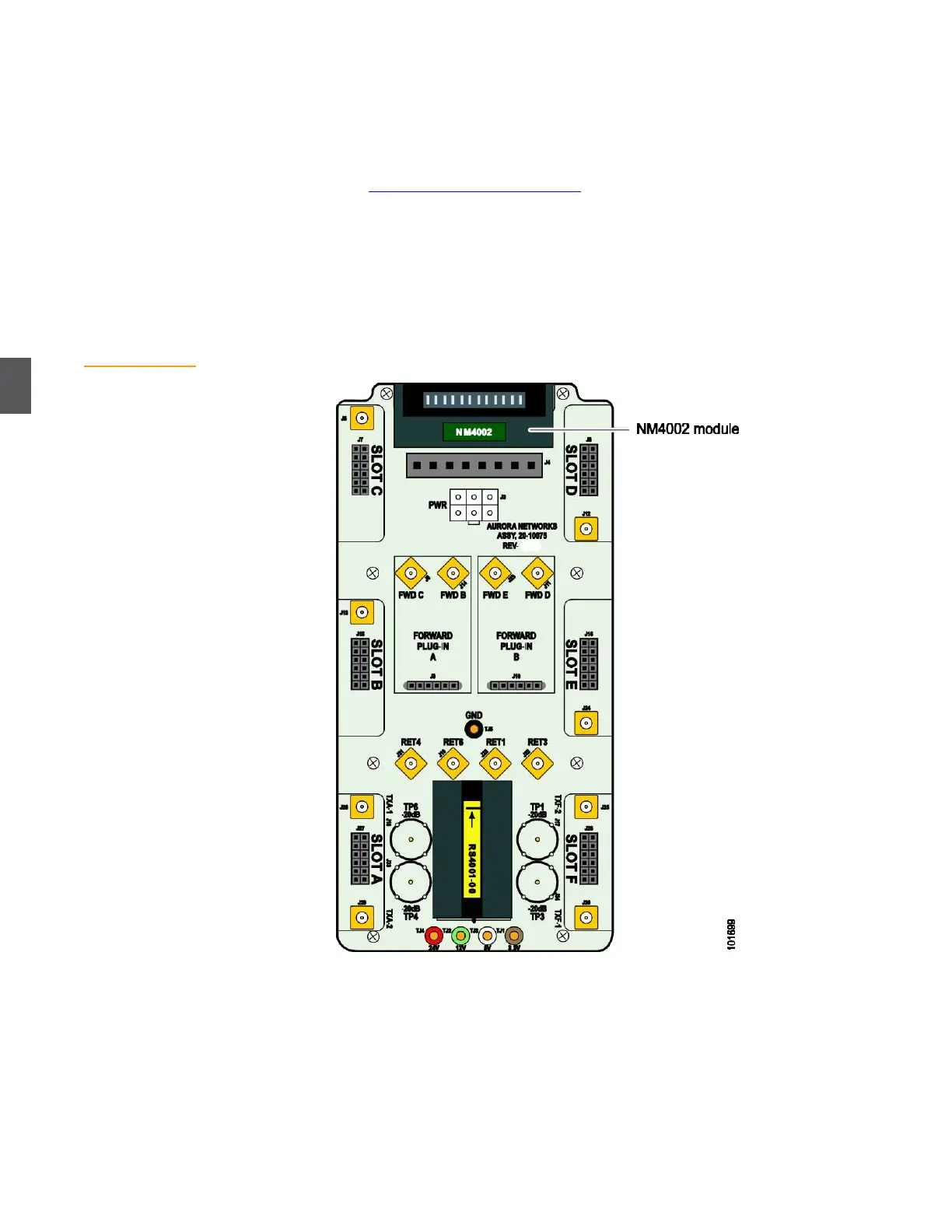

Figure 5.1
NM4002 Installed in
Lid Motherboard
The alarm thresholds and reported parameters that can be viewed are listed here in Table 5.1 on
page 5-3 through Table 5.3 on page 5-3. The NM4002 network management module must be
installed on the lid motherboard, and a transceiver must be installed in slot A (Figure 5.1).
