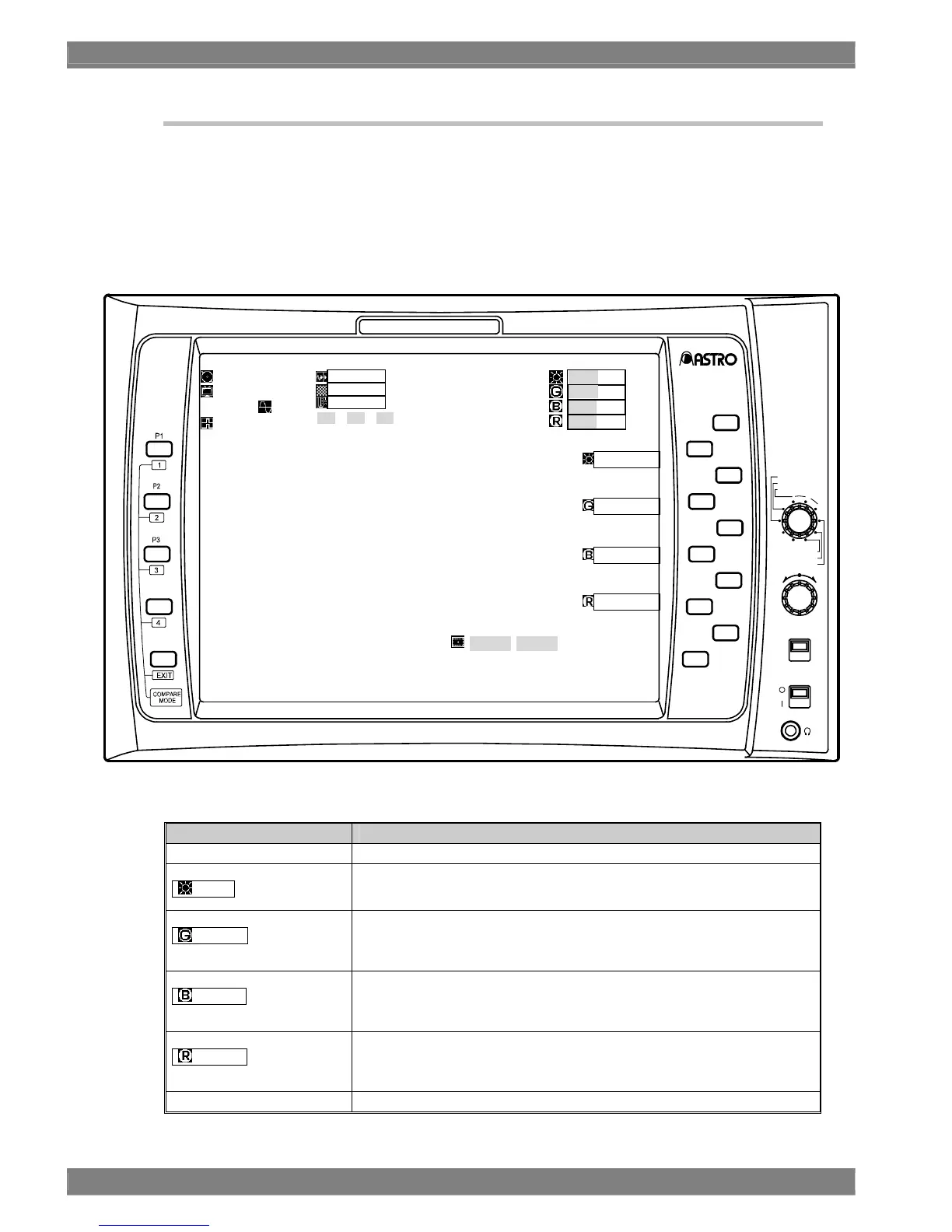

3.4.1.2 Brightness setting screen
〈〈 Functions 〉〉
The input images are displayed, and the following image adjustments are performed on this screen.
z Brightness
z G-Brightness
z B-Brightness
z R-Brightness
〈〈 Screen 〉〉
[ Description of operations ]
Switch Description of function
FUNC switch Use this to return to the function screen. (Refer to section 3.4.1.1.)
F1 switch
Bright
Use this to adjust the brightness value by turning the adjustment dial.
Variable range: -50.00% to +50.00%
When the adjustment dial is pressed, the brightness value is returned to the initial value.
F2 switch
G-Bright
Use this to adjust the G-brightness value by turning the adjustment dial.
Variable range: -50.00% to +50.00%
When the adjustment dial is pressed, the G-brightness value is returned to the initial
value.
F3 switch
B-Bright
Use this to adjust the B-brightness value by turning the adjustment dial.
Variable range: -50.00% to +50.00%
When the adjustment dial is pressed, the B-brightness value is returned to the initial
value.
F4 switch
R-Bright
Use this to adjust the R-brightness value by turning the adjustment dial.
Variable range: -50.00% to +50.00%
When the adjustment dial is pressed, the R-brightness value is returned to the initial
value.
F5 switch No function.
Bright
G-Bright
B-Bright
R-Bright
InputSDIA
FormatAUTO
(1080i
59.94)
Int
FilterOFF
MonoOFF
6500K
GBR
PCRCE:0000000TIME:00:00:00
YCRCE:0000000LAST:00:00:00
R-Bright0.0%
B-Bright0.0%
Bri
g
ht0.0
%

G-Bri
g
ht0.0%
4:313:914:9
95%93%88%80%
2.35:11.85:11.66:1
FRMCTRUSER
VITC:00:00:00:00
WAVEFORM MONITOR
P5
P4
HD LCD
WM-3014
POWER
OFF
F
U
N
C
F
5
F
4
OPE LOCK
ON
MENU
MULTI
AUDIO
F
R
E
E
Z
E
F
3
O
V
E
R
L
A
Y
F
2
PRESET
WAVE
VECTOR
STATUS
3
1
2
D
I
S
P
L
A
Y
F1
I
N
P
U
T
