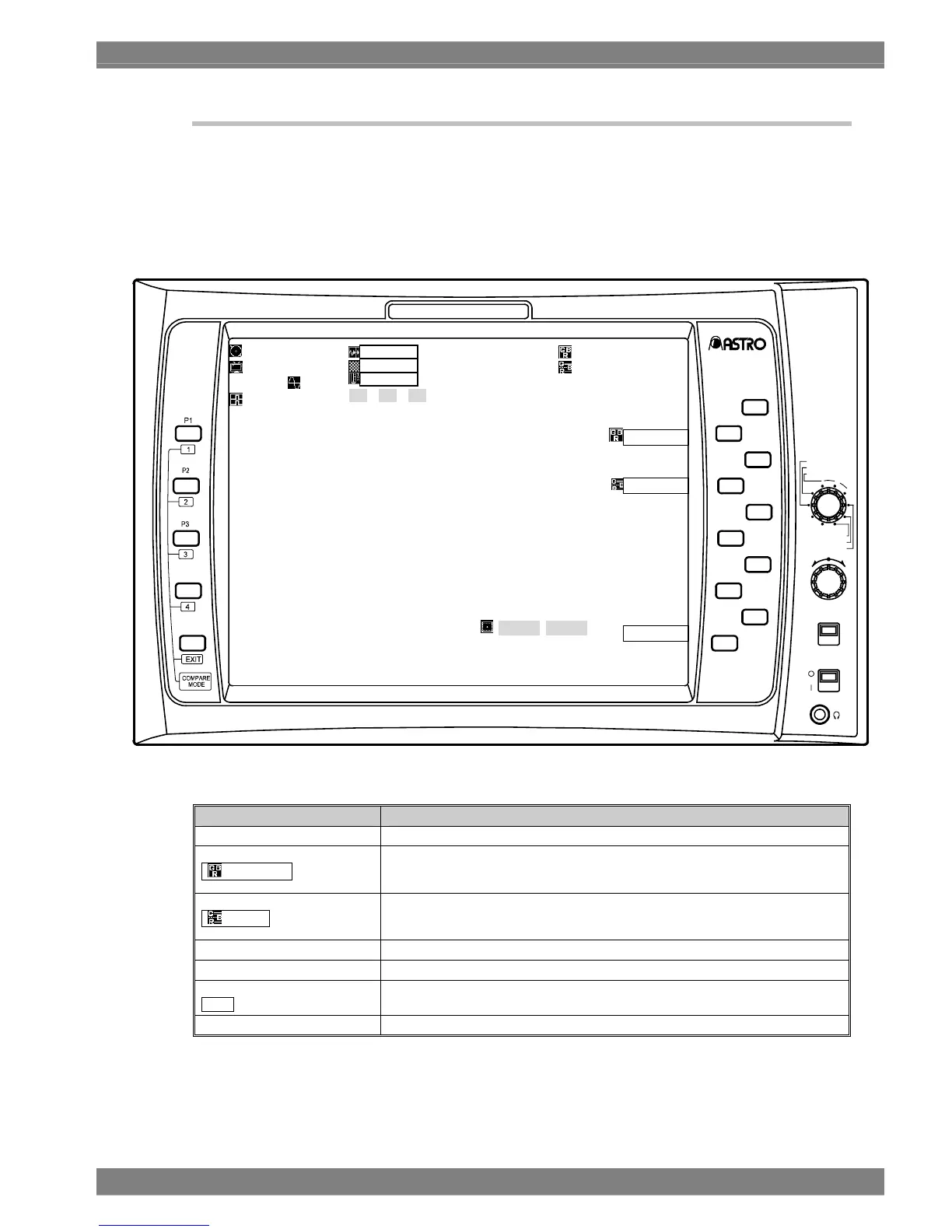

3.4.1.7 Color setting screen
〈〈 Functions 〉〉
By holding down the OVERLAY switch in the PICTURE1 mode, the input images are displayed, and the following
settings can be performed.
z Character color
z Marker color
〈〈 Screen 〉〉
[ Description of operations ]
Switch Description of function
FUNC switch Use this to return to the previous screen.
F1 switch
Information
Use this to select the color (any of 63 colors) of the characters by turning the adjustment
dial.
When the adjustment dial is pressed, the character color is returned to the initial value.
F2 switch
Marker
Use this to select the color (any of 64 colors) of the markers by turning the adjustment
dial.
When the adjustment dial is pressed, the marker color is returned to the initial value.
F3 switch No function.
F4 switch No function.
F5 switch
Exit
Use this to return to the previous screen.
OVERLAY switch When this is held down, the display is returned to the previous screen.
WAVEFORM MONITOR
P5
P4
HD LCD
WM-3014
POWER
OFF
F
U
N
C
F
5
F
4
OPE LOCK
ON
MENU
MULTI
AUDIO
F
R
E
E
Z
E
F
3
O
V
E
R
L
A
Y
F
2
PRESET
WAVE
VECTOR
STATUS
3
1
2
D
I
S
P
L
A
Y
F1
I
N
P
U
T
InformationWhite3
MarkerWhite3
Information
Marker
Exit
InputSDIA
FormatAUTO
(1080i
59.94)
Int
FilterOFF
MonoOFF
6500K
GB R
PCRCE:0000000TIME:00:00:00
YCRCE:0000000LAST:00:00:00
4:313:914:9
95%93%88%80%
2.35:11.85:11.66:1
FRMCTRUSER
VITC:00:00:00:00
