3.4.4 WAVEFORM mode

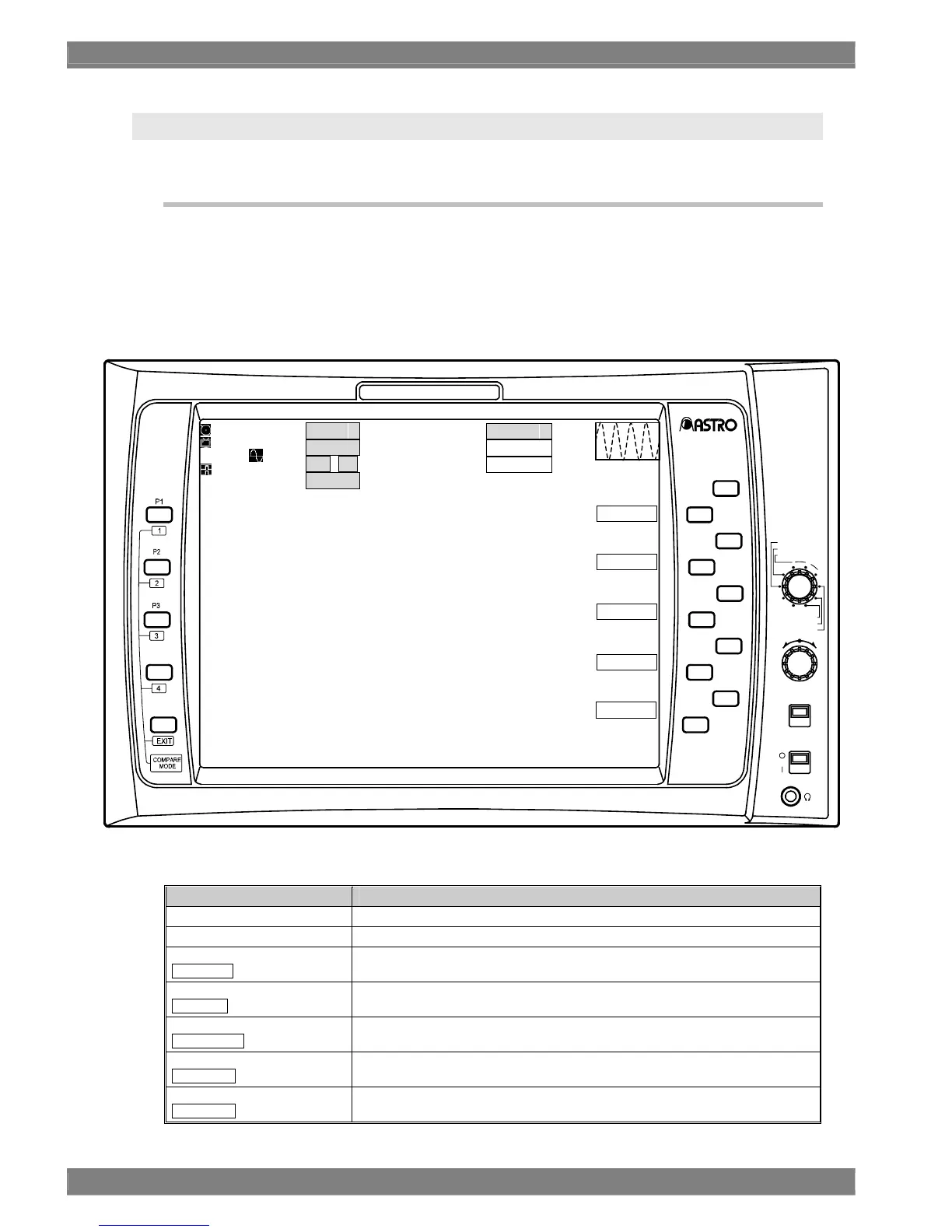

3.4.4.1 Function screen
〈〈 Functions 〉〉
The waveforms are displayed on this screen.
* When composite signals are input, the data after the signals have been converted into component signals is
displayed. In regard to the PAL signals, however, the waveforms of the 3 lines each at the start and end of the
video signals will be more disturbed than in actuality.
〈〈 Screen 〉〉
[ Description of operations ]
Switch Description of function
FUNC switch Use this to return to the previous screen.
Adjustment dial No function.
F1 switch
DISPLAY
Use this to set the display to the DISPLAY setting screen.
(Refer to section 3.4.4.2.)
F2 switch
SWEEP
Use this to set the display to the SWEEP setting screen.
(Refer to section 3.4.4.3.)
F3 switch
GAIN/MAG
Use this to set the display to the GAIN/MAG setting screen.
(Refer to section 3.4.4.4.)
F4 switch
CURSOR
Use this to set the display to the CURSOR setting screen.
(Refer to section 3.4.4.5.)
F5 switch
SETTING
Use this to set the display to the WAVEFORM mode setting screen.
(Refer to section 3.4.4.6.)
WAVEFORM MONITOR
P5
P4
HD LCD
WM-3014
POWER
OFF
F
U
N
C
F
5
F
4
OPE LOCK
ON
MENU
MULTI
AUDIO
F
R
E
E
Z
E
F
3
O
V
E
R
L
A
Y
F
2
PRESET
WAVE
VECTOR
STATUS
3
1
2
D
I
S
P
L
A
Y
F1
I
N
P
U
T
dT8.00μs
d%20.00%
YPbPr
Parade
1H Mx1
Gx1.00
Field1
Line(Field)0001
Line(Frame)0001
DISPLAY
SWEEP
GAIN/MAG
CURSOR
SETTING
In
p
utSDIA
FormatAUTO
(1080i
59.94)
Int
PCRCE:0000000TIME:00:00:00
YCRCE:0000000LAST:00:00:00
VITC:00:00:00:00
