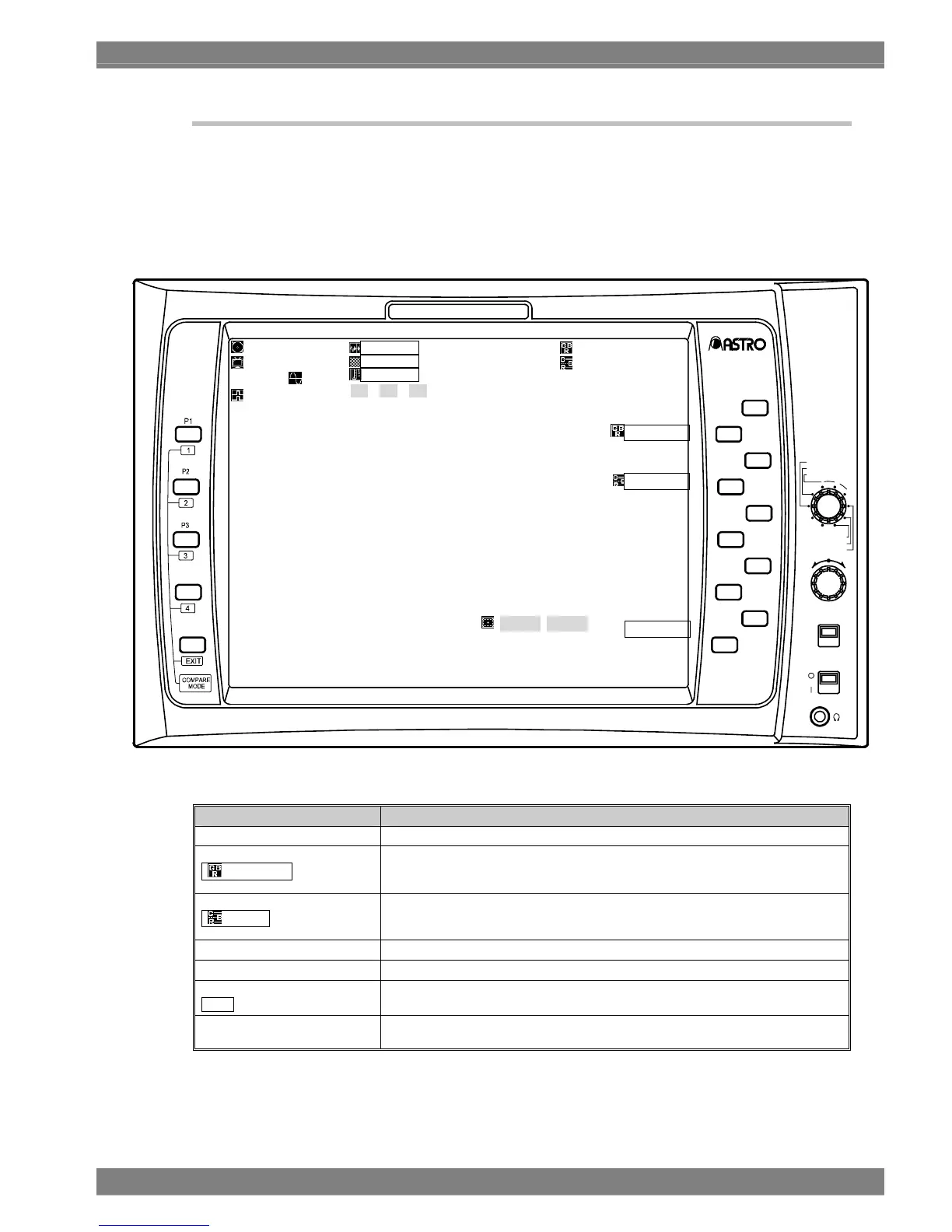

3.4.2.3 Color setting screen
〈〈 Functions 〉〉
When the OVERLAY switch is held down in the PICTURE2 mode, the input pictures are displayed, and the
following settings can be performed.
z Character color
z Marker color
〈〈 Color setting screen 〉〉
[ Description of operations ]
Switch Description of function
FUNC switch Use this to return to the regular screen. (Refer to section 3.4.2.1.)
F1 switch
Information
Use this to select the color (any of 63 colors) of the characters by turning the adjustment
dial.
When the adjustment dial is pressed, the character color is returned to the initial value.
F2 switch
Marker
Use this to select the color (any of 64 colors) of the markers by turning the adjustment
dial.
When the adjustment dial is pressed, the marker color is returned to the initial value.
F3 switch No function.
F4 switch No function.
F5 switch
Exit
Use this to return to the regular screen. (Refer to section 3.4.2.1.)
OVERLAY switch When this is held down, the display is returned to the regular screen.
(Refer to section 3.4.2.1.)
