ASTRO WM-3014 User Manual

58
3.4.10.2 Color setting screen
〈〈 Functions 〉〉
When the OVERLAY switch is held down in the MENU mode, the following settings can be performed on this
screen.
z Character color

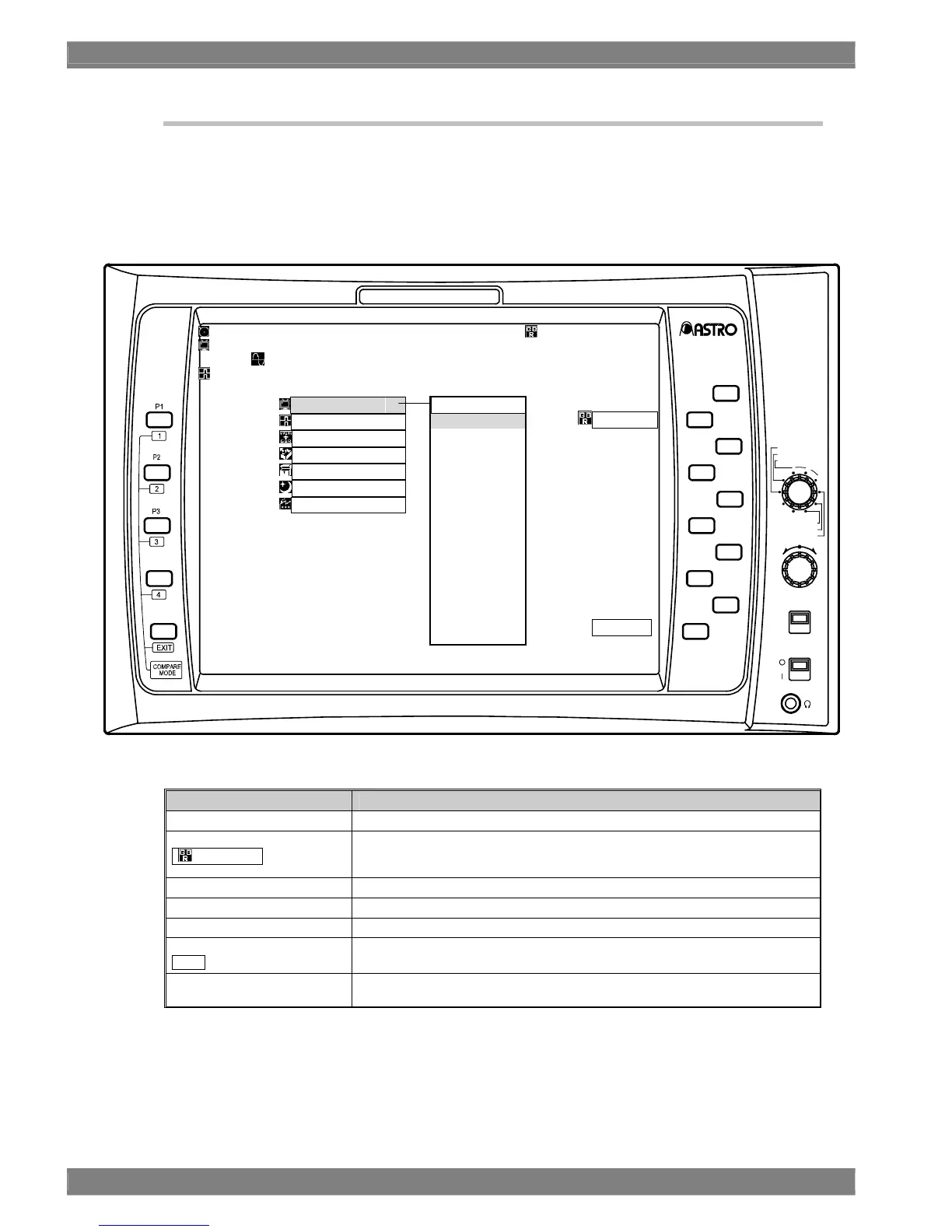

〈〈 Screen 〉〉
[ Description of operations ]
Switch Description of function
FUNC switch Use this to return to the regular screen. (Refer to section 3.4.10.1.)
F1 switch
Information
Use this to select the color (any of 63 colors) of the characters by turning the adjustment
dial.
When the adjustment dial is pressed, the character color is returned to the initial value.
F2 switch No function.
F3 switch No function.
F4 switch No function.
F5 switch
Exit
Use this to return to the regular screen. (Refer to section 3.4.10.1.)
OVERLAY switch When this is held down, the display is returned to the regular screen. (Refer to section
3.4.10.1.)
