Chapter 3 OPERATION
49
3.4.7.2 Audio vector screen
〈〈 Functions 〉〉
z Left/right vector display selected for headphone output
z Selection of headphone output channels and volume control
z Gain setting (×1, ×2, ×4, ×8 or ×16)

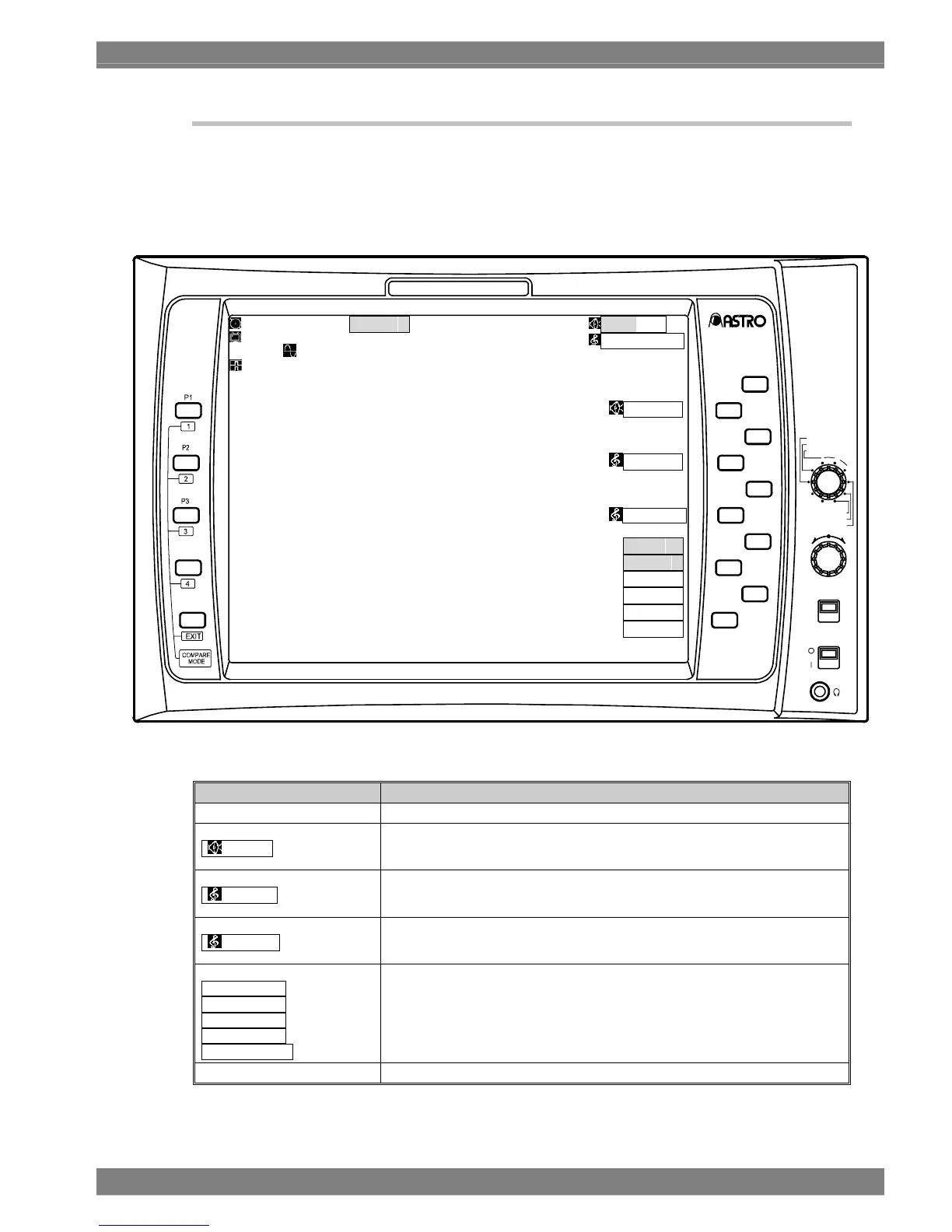

〈〈 Screen 〉〉
[ Description of operations ]
Switch Description of function
FUNC switch Use this to select the audio level meter screen. (Refer to section 3.4.8.1.)
F1 switch
Volume
Use this to adjust the volume level by turning the adjustment dial. Variable range: 0 to
255
When the adjustment dial is pressed, the volume level is returned to the initial value.
F2 switch
Output L
Press the F2 switch, and turn the adjustment dial to set the headphone output left
channel.
When the adjustment dial is pressed, the output channel is returned to the initial value.
F3 switch
Output R
Press the F3 switch, and turn the adjustment dial to set the headphone output right
channel.
When the adjustment dial is pressed, the output channel is returned to the initial value.
F4 switch
GAIN Fix ×1 /
GAIN Fix ×2 /
GAIN Fix ×4 /
GAIN Fix ×8 /
GAIN Fix ×16
Use this to change the magnification rate of the audio vector waveforms. Each time the
F4 switch is pressed, the rate changes in the sequence of ×1, ×2 ... ×16.
F5 switch No function.
WAVEFORM MONITOR
P5
P4
HD LCD
WM-3014
POWER
OFF
F
U
N
C
F
5
F
4
OPE LOCK
ON
MENU
MULTI
AUDIO
F
R
E
E
Z
E
F
3
O
V
E
R
L
A
Y
F
2
PRESET
WAVE
VECTOR
STATUS
3
1
2
D
I
S
P
L
A
Y
F1
I
N
P
U
T
GAIN
Fixx1
Fixx2
Fixx4
Fixx8
Fixx16
Volume128
L:1CHR:2CH
×1.00
Volume
OutputL
Output R
InputSDIA
FormatAUTO
(1080i
59.94)
Int
PCRCE:0000000TIME:00:00:00
YCRCE:0000000LAST:00:00:00
VITC:00:00:00:00
