3.4.2.2 User marker setting screen
〈〈 Functions 〉〉
When the F5 switch (Marker switch) is held down in the PICTURE2 mode, the input images are displayed, and
the horizontal and vertical values of the user markers can be set.

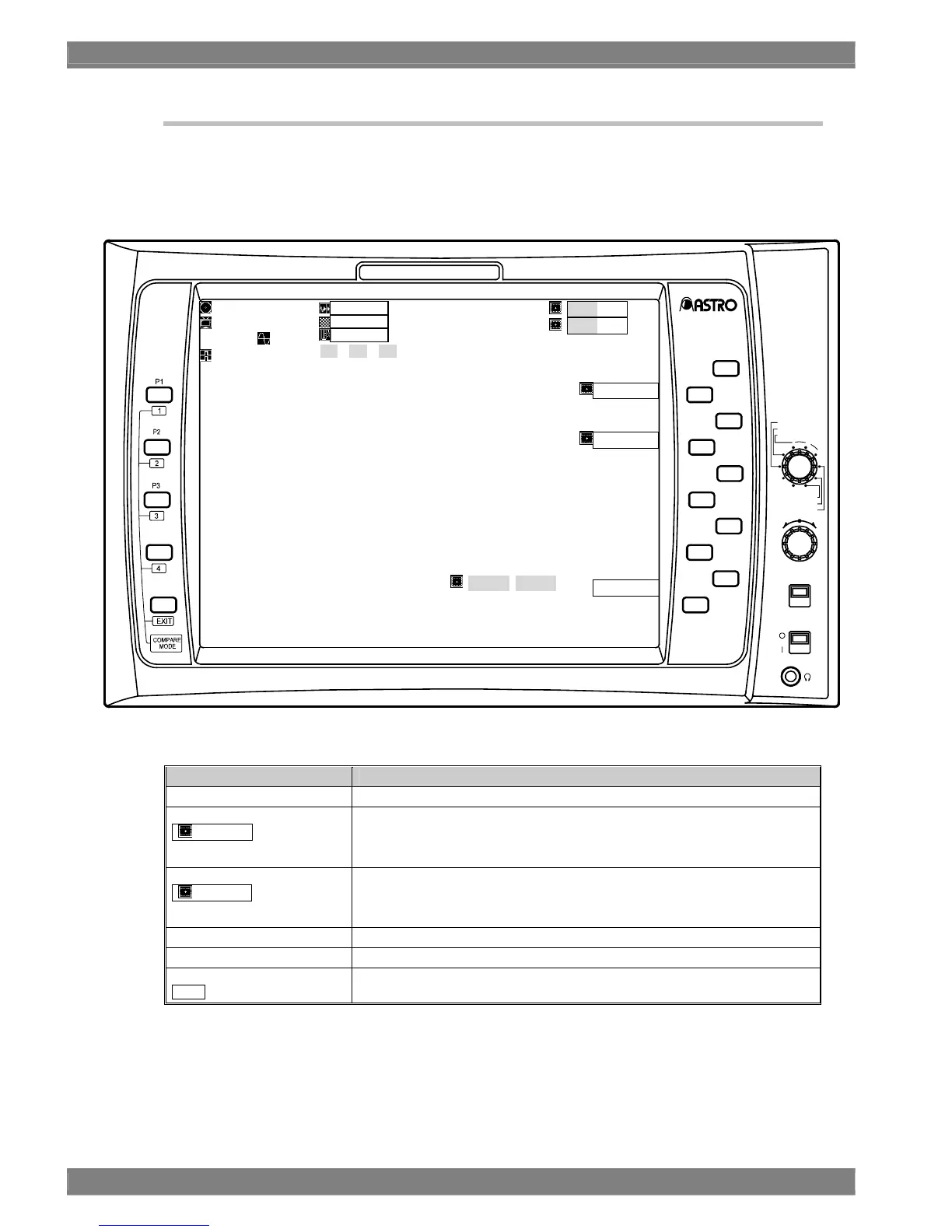

〈〈 Screen 〉〉
[ Description of operations ]
Switch Description of function
FUNC switch Use this to return to the regular screen. (Refer to section 3.4.2.1.)
F1 switch
Marker H
Use this to adjust the horizontal marker value by turning the adjustment dial.
When the adjustment dial is pressed, the horizontal marker value is returned to the initial
value.
Variable range: 0 to 99%
F2 switch
Marker V
Use this to adjust the vertical marker value by turning the adjustment dial.
When the adjustment dial is pressed, the vertical marker value is returned to the initial
value.
Variable range: 0 to 99%
F3 switch No function.
F4 switch No function.
F5 switch
Exit
Use this to return to the regular screen. (Refer to section 3.4.2.1.)
WAVEFORM MONITOR
P5
P4
HD LCD
WM-3014
POWER
OFF
F
U
N
C
F
5
F
4
OPE LOCK
ON
MENU
MULTI
AUDIO
F
R
E
E
Z
E
F
3
O
V
E
R
L
A
Y
F
2
PRESET
WAVE
VECTOR
STATUS
3
1
2
D
I
S
P
L
A
Y
F1
I
N
P
U
T
MarkerH
MarkerV
Exit
MarkerH50%
MarkerV50%
FilterOFF
MonoOFF
6500K
GBR
InputSDIA
FormatAUTO
(1080i
59.94)
Int
PCRCE:0000000TIME:00:00:00
YCRCE:0000000LAST:00:00:00
4:313:914:9
95%93%88%80%
2.35:11.85:11.66:1
FRMCTRUSER
VITC:00:00:00:00
